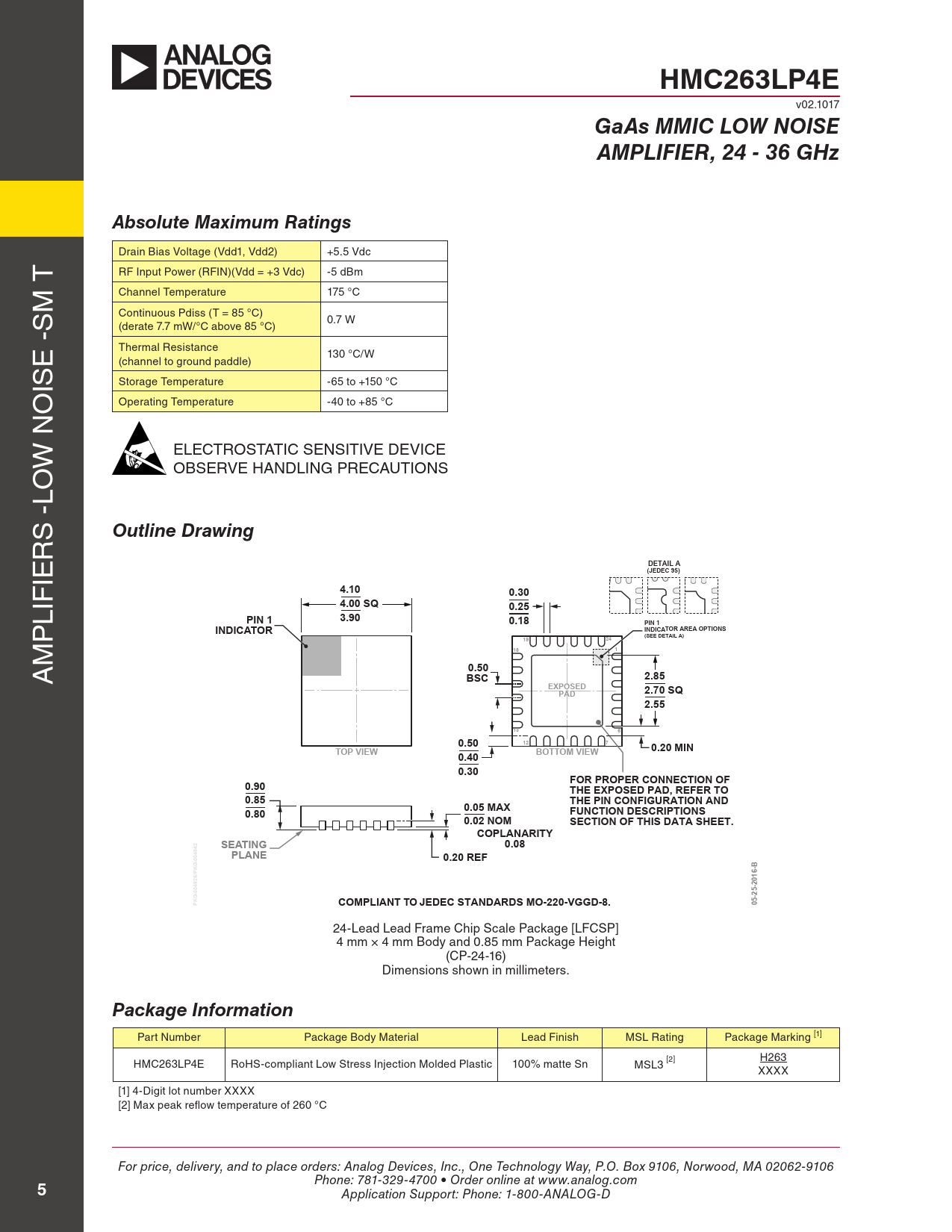

HMC263LP4E. GaAs MMIC LOW NOISE. AMPLIFIER, 24 - 36 GHz. Absolute Maximum Ratings

HMC263LP4E GaAs MMIC LOW NOISE AMPLIFIER, 24 - 36 GHz Absolute Maximum Ratings

Modelllinie für dieses Datenblatt

Textversion des Dokuments

HMC263LP4E
v02.1017
GaAs MMIC LOW NOISE AMPLIFIER, 24 - 36 GHz Absolute Maximum Ratings
Drain Bias Voltage (Vdd1, Vdd2) +5.5 Vdc T rf input power (rfiN)(Vdd = +3 Vdc) -5 dBm m Channel Temperature 175 °C s Continuous pdiss (T = 85 °C) 0.7 w (derate 7.7 mw/°C above 85 °C) e - Thermal resistance 130 °C/w (channel to ground paddle) is storage Temperature -65 to +150 °C o operating Temperature -40 to +85 °C w N eleCTrosTATiC seNsiTiVe DeViCe oBserVe HANDliNG preCAUTioNs lo
24-Lead Lead Frame Chip Scale Package [LFCSP]
s -
4 x 4 mm Body and 0.85 mm Package Height Outline Drawing (CP-24-16)
r
Dimensions shown in millimeters
ie
DETAIL A (JEDEC 95) 4.10 0.30
lif
4.00 SQ 0.25
p
PIN 1 3.90 0.18 PIN 1 INDICATOR INDICATOR AREA OPTIONS (SEE DETAIL A) 19 24
m
18 1
A
0.50 BSC 2.85 EXPOSED PAD 2.70 SQ 2.55 13 6 0.50 12 7 TOP VIEW 0.20 MIN 0.40 BOTTOM VIEW 0.30 0.90 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO 0.85 THE PIN CONFIGURATION AND 0.80 0.05 MAX FUNCTION DESCRIPTIONS 0.02 NOM SECTION OF THIS DATA SHEET. COPLANARITY SEATING 0.08 PLANE 0.20 REF PKG-004926/PKG-004942 COMPLIANT TO JEDEC STANDARDS MO-220-VGGD-8. 05-25-2016-B
24-lead lead frame Chip scale package [lfCsp] 4 mm × 4 mm Body and 0.85 mm package Height (Cp-24-16) Dimensions shown in millimeters.
Package Information
part Number package Body material lead finish msl rating package marking [1] HmC263lp4e roHs-compliant low stress injection molded plastic 100% matte sn msl3 [2] H263 XXXX [1] 4-Digit lot number XXXX [2] max peak reflow temperature of 260 °C For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
