Datasheet HMC517LC4 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | SMT PHEMT LOW NOISE AMPLIFIER, 17 - 26 GHz |
| Seiten / Seite | 6 / 1 — HMC517LC4. SMT PHEMT LOW NOISE. AMPLIFIER, 17 - 26 GHz. Typical … |
| Revision | D |
| Dateiformat / Größe | PDF / 1.0 Mb |
| Dokumentensprache | Englisch |
HMC517LC4. SMT PHEMT LOW NOISE. AMPLIFIER, 17 - 26 GHz. Typical Applications. Features. Functional Diagram. General Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments

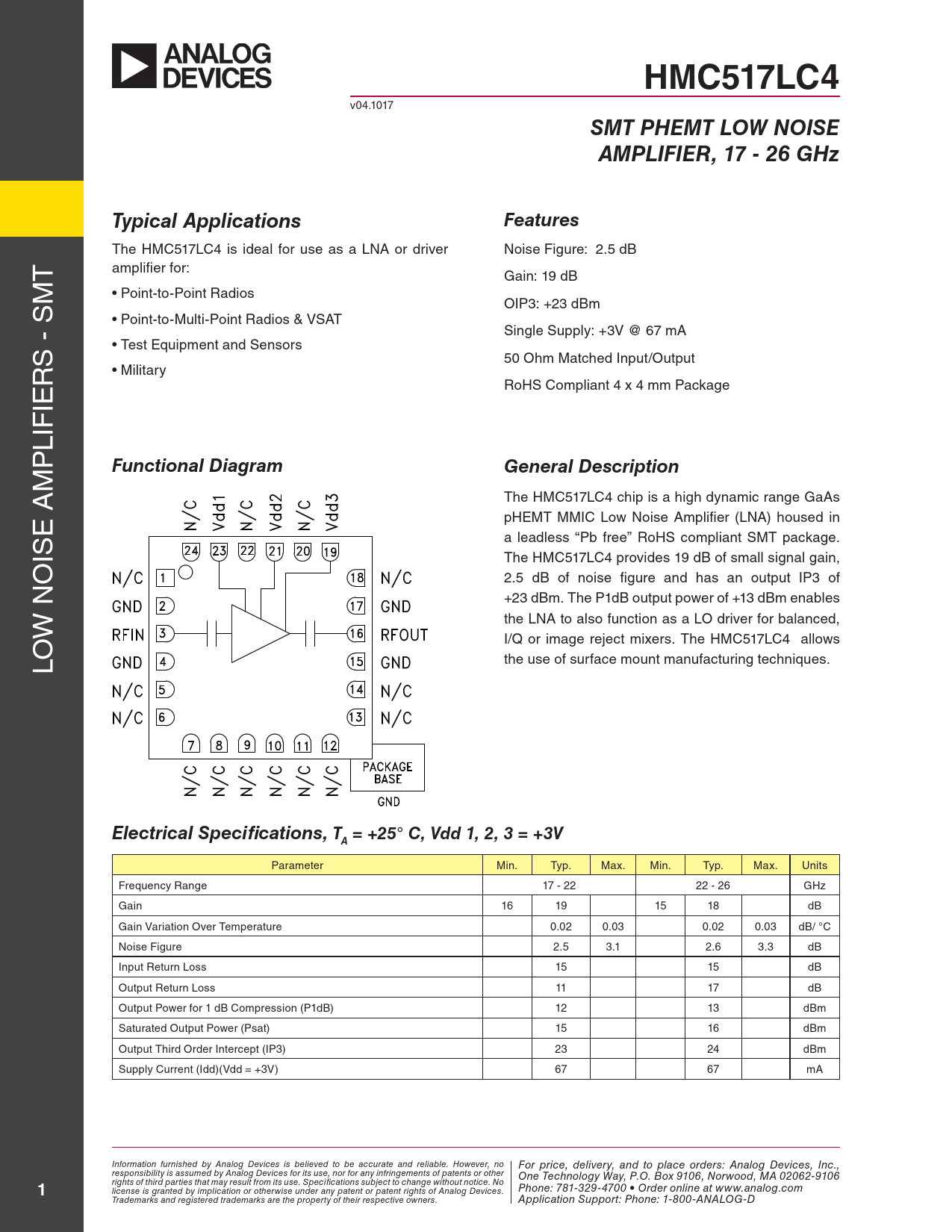

HMC517LC4
v04.1017
SMT PHEMT LOW NOISE AMPLIFIER, 17 - 26 GHz Typical Applications Features
The HMC517LC4 is ideal for use as a LNA or driver Noise Figure: 2.5 dB T amplifier for: Gain: 19 dB M • Point-to-Point Radios OIP3: +23 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 67 mA S - S • Test Equipment and Sensors 50 Ohm Matched Input/Output R • Military RoHS Compliant 4 x 4 mm Package IE LIF P
Functional Diagram General Description
M The HMC517LC4 chip is a high dynamic range GaAs E A pHEMT MMIC Low Noise Amplifier (LNA) housed in IS a leadless “Pb free” RoHS compliant SMT package. The HMC517LC4 provides 19 dB of small signal gain, O 2.5 dB of noise figure and has an output IP3 of +23 dBm. The P1dB output power of +13 dBm enables W N the LNA to also function as a LO driver for balanced, I/Q or image reject mixers. The HMC517LC4 al ows LO the use of surface mount manufacturing techniques.
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 17 - 22 22 - 26 GHz Gain 16 19 15 18 dB Gain Variation Over Temperature 0.02 0.03 0.02 0.03 dB/ °C Noise Figure 2.5 3.1 2.6 3.3 dB Input Return Loss 15 15 dB Output Return Loss 11 17 dB Output Power for 1 dB Compression (P1dB) 12 13 dBm Saturated Output Power (Psat) 15 16 dBm Output Third Order Intercept (IP3) 23 24 dBm Supply Current (Idd)(Vdd = +3V) 67 67 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
