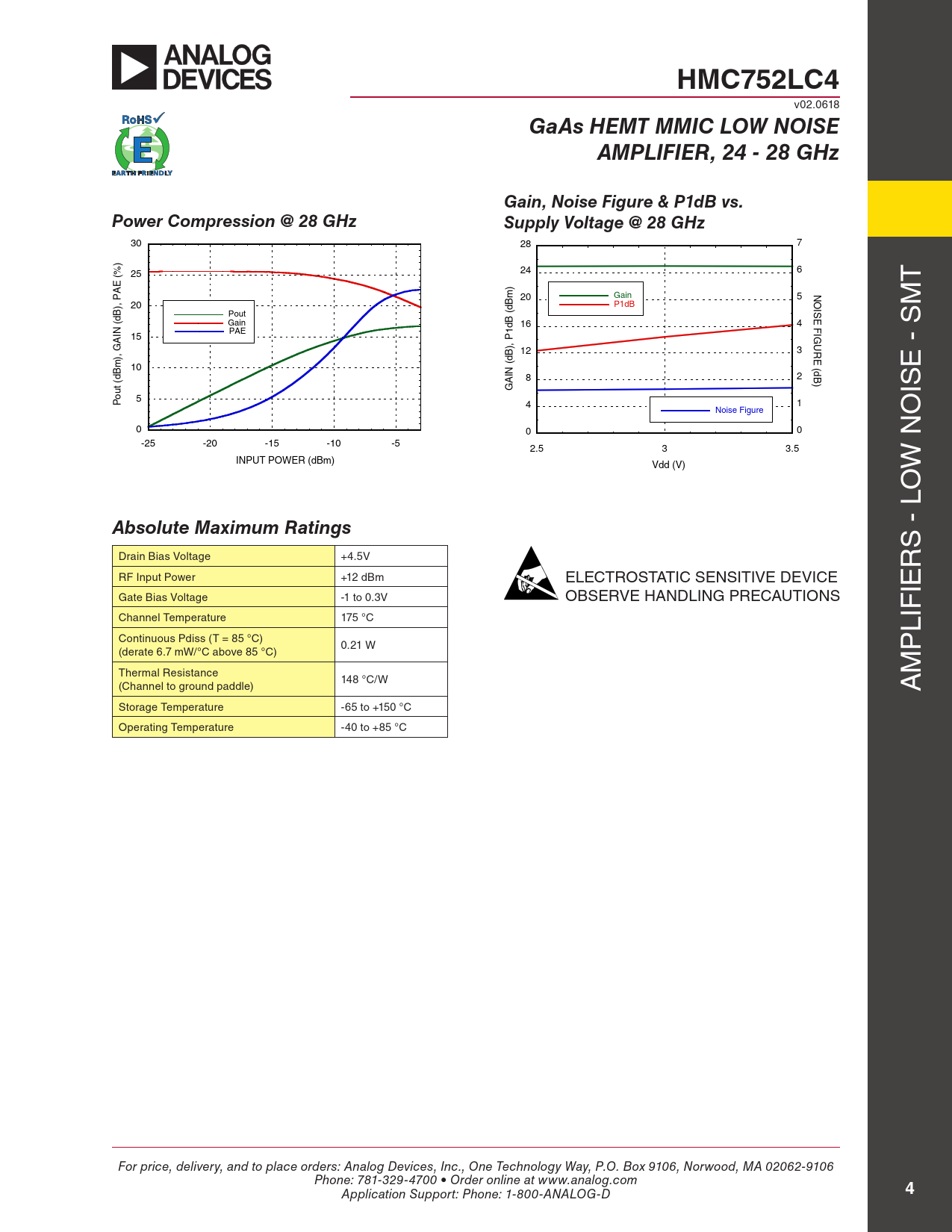

HMC752LC4. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 24 - 28 GHz. Gain, Noise Figure & P1dB vs. Power Compression @ 28 GHz

HMC752LC4 GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz Gain, Noise Figure & P1dB vs Power Compression @ 28 GHz

Modelllinie für dieses Datenblatt

Textversion des Dokuments

HMC752LC4
v02.0618
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz Gain, Noise Figure & P1dB vs. Power Compression @ 28 GHz Supply Voltage @ 28 GHz
30 28 7 ) % 6 25 24 ( E T A ) m N 20 Gain 5 O ), P 20 B P1dB d IS M B Pout ( d E ( Gain B 16 4 d F PAE IN 1 IG 15 A ), P U 12 3 R ), G B d E m ( 10 ( d E - S B d IN 8 2 B A ) t ( u G IS o 5 P 4 1 Noise Figure O 0 0 0 -25 -20 -15 -10 -5 2.5 3 3.5 INPUT POWER (dBm) Vdd (V) W N O
Absolute Maximum Ratings
S - L Drain Bias Voltage +4.5V R RF Input Power +12 dBm ELECTROSTATIC SENSITIVE DEVICE IE Gate Bias Voltage -1 to 0.3V OBSERVE HANDLING PRECAUTIONS Channel Temperature 175 °C LIF Continuous Pdiss (T = 85 °C) 0.21 W (derate 6.7 mW/°C above 85 °C) P Thermal Resistance M 148 °C/W (Channel to ground paddle) A Storage Temperature -65 to +150 °C Operating Temperature -40 to +85 °C For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
4
