HMC441LM1. GaAs PHEMT MMIC MEDIUM. POWER AMPLIFIER, 7 - 15.5 GHz. Suggested LM1 PCB Land Pattern. Amplifier Application Circuit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC441LM1
v04.1019

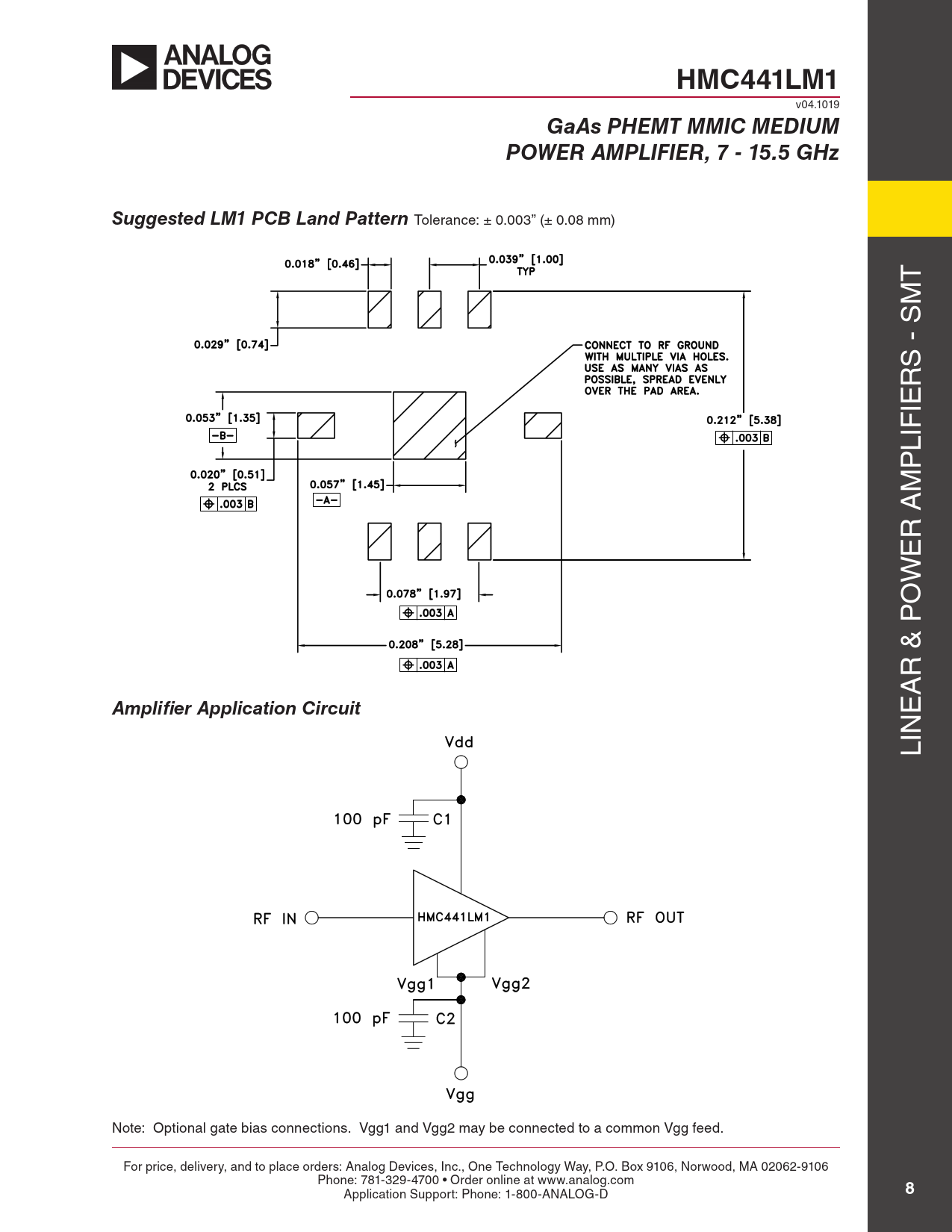

GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 7 - 15.5 GHz Suggested LM1 PCB Land Pattern
Tolerance: ± 0.003” (± 0.08 mm) T M S - S R IE LIF P M R A E W O R & P A
Amplifier Application Circuit
E LIN Note: Optional gate bias connections. Vgg1 and Vgg2 may be connected to a common Vgg feed. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
8
v04.1019
GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 7 - 15.5 GHz Suggested LM1 PCB Land Pattern
Tolerance: ± 0.003” (± 0.08 mm) T M S - S R IE LIF P M R A E W O R & P A
Amplifier Application Circuit
E LIN Note: Optional gate bias connections. Vgg1 and Vgg2 may be connected to a common Vgg feed. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
