Datasheet NC7SZ04 (ON Semiconductor) - 2
| Hersteller | ON Semiconductor |
| Beschreibung | TinyLogic UHS Inverter |
| Seiten / Seite | 11 / 2 — NC7SZ04. Pin Configurations. Figure 2. SC−88A and SC−74A (Top View). … |
| Revision | 4 |
| Dateiformat / Größe | PDF / 485 Kb |
| Dokumentensprache | Englisch |

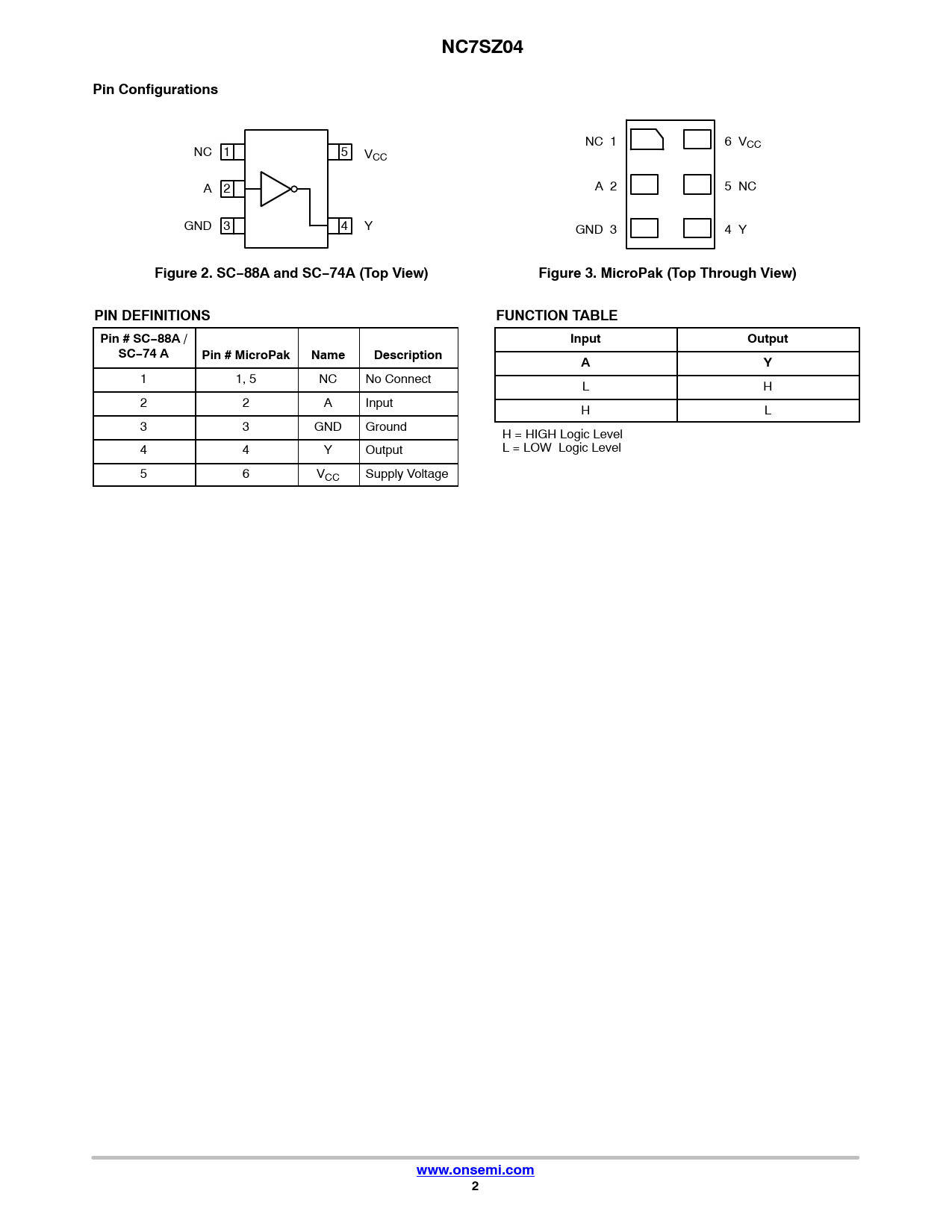

NC7SZ04. Pin Configurations. Figure 2. SC−88A and SC−74A (Top View). Figure 3. MicroPak (Top Through View). PIN DEFINITIONS
Modelllinie für dieses Datenblatt
NC7SZ04
Textversion des Dokuments
NC7SZ04 Pin Configurations
NC 1 6 V NC 1 5 CC VCC A 2 A 2 5 NC GND 3 4 Y GND 3 4 Y
Figure 2. SC−88A and SC−74A (Top View) Figure 3. MicroPak (Top Through View) PIN DEFINITIONS FUNCTION TABLE Pin # SC−88A / Input Output SC−74 A Pin # MicroPak Name Description A Y
1 1, 5 NC No Connect L H 2 2 A Input H L 3 3 GND Ground H = HIGH Logic Level 4 4 Y Output L = LOW Logic Level 5 6 VCC Supply Voltage
www.onsemi.com 2
