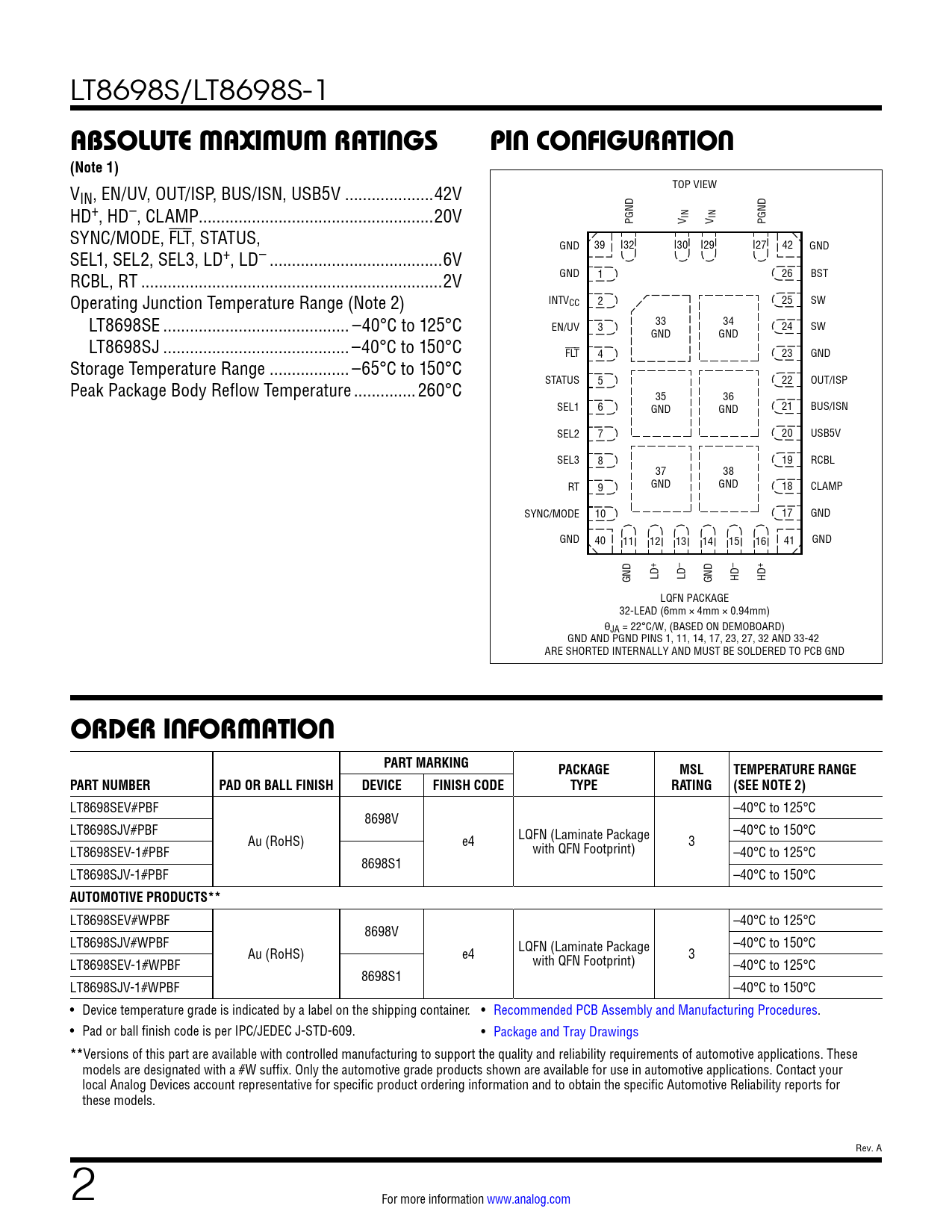

LT8698S/LT8698S-1
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
V TOP VIEW IN, EN/UV, OUT/ISP, BUS/ISN, USB5V ..42V HD+, HD–, CLAMP...20V PGND V IN V IN PGND SYNC/MODE, FLT, STATUS, GND 39 32 30 29 27 42 GND SEL1, SEL2, SEL3, LD+, LD– ...6V RCBL, RT ..2V GND 1 26 BST Operating Junction Temperature Range (Note 2) INTVCC 2 25 SW LT8698SE .. –40°C to 125°C EN/UV 3 33 34 24 SW GND GND LT8698SJ .. –40°C to 150°C FLT 4 23 GND Storage Temperature Range .. –65°C to 150°C Peak Package Body Reflow Temperature ..260°C STATUS 5 22 OUT/ISP 35 36 SEL1 6 GND GND 21 BUS/ISN SEL2 7 20 USB5V SEL3 8 19 RCBL 37 38 RT 9 GND GND 18 CLAMP SYNC/MODE 10 17 GND GND 40 11 12 13 14 15 16 41 GND + – – + GND LD LD GND HD HD LQFN PACKAGE 32-LEAD (6mm × 4mm × 0.94mm) θJA = 22°C/W, (BASED ON DEMOBOARD) GND AND PGND PINS 1, 11, 14, 17, 23, 27, 32 AND 33-42 ARE SHORTED INTERNALLY AND MUST BE SOLDERED TO PCB GND
ORDER INFORMATION PART MARKING PACKAGE MSL TEMPERATURE RANGE PART NUMBER PAD OR BALL FINISH DEVICE FINISH CODE TYPE RATING (SEE NOTE 2)
LT8698SEV#PBF –40°C to 125°C 8698V LT8698SJV#PBF –40°C to 150°C Au (RoHS) e4 LQFN (Laminate Package with QFN Footprint) 3 LT8698SEV-1#PBF –40°C to 125°C 8698S1 LT8698SJV-1#PBF –40°C to 150°C
AUTOMOTIVE PRODUCTS**
LT8698SEV#WPBF –40°C to 125°C 8698V LT8698SJV#WPBF –40°C to 150°C Au (RoHS) e4 LQFN (Laminate Package with QFN Footprint) 3 LT8698SEV-1#WPBF –40°C to 125°C 8698S1 LT8698SJV-1#WPBF –40°C to 150°C • Device temperature grade is indicated by a label on the shipping container. • Recommended PCB Assembly and Manufacturing Procedures. • Pad or ball finish code is per IPC/JEDEC J-STD-609. • Package and Tray Drawings
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. A 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Related Parts
