Datasheet NV6128 (Navitas Semiconductor) - 4
| Hersteller | Navitas Semiconductor |
| Beschreibung | GaNFast Power IC |
| Seiten / Seite | 25 / 4 — NV6128. 6.3. ESD Ratings. SYMBOL. PARAMETER. MAX. UNITS. 6.4. Thermal … |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |

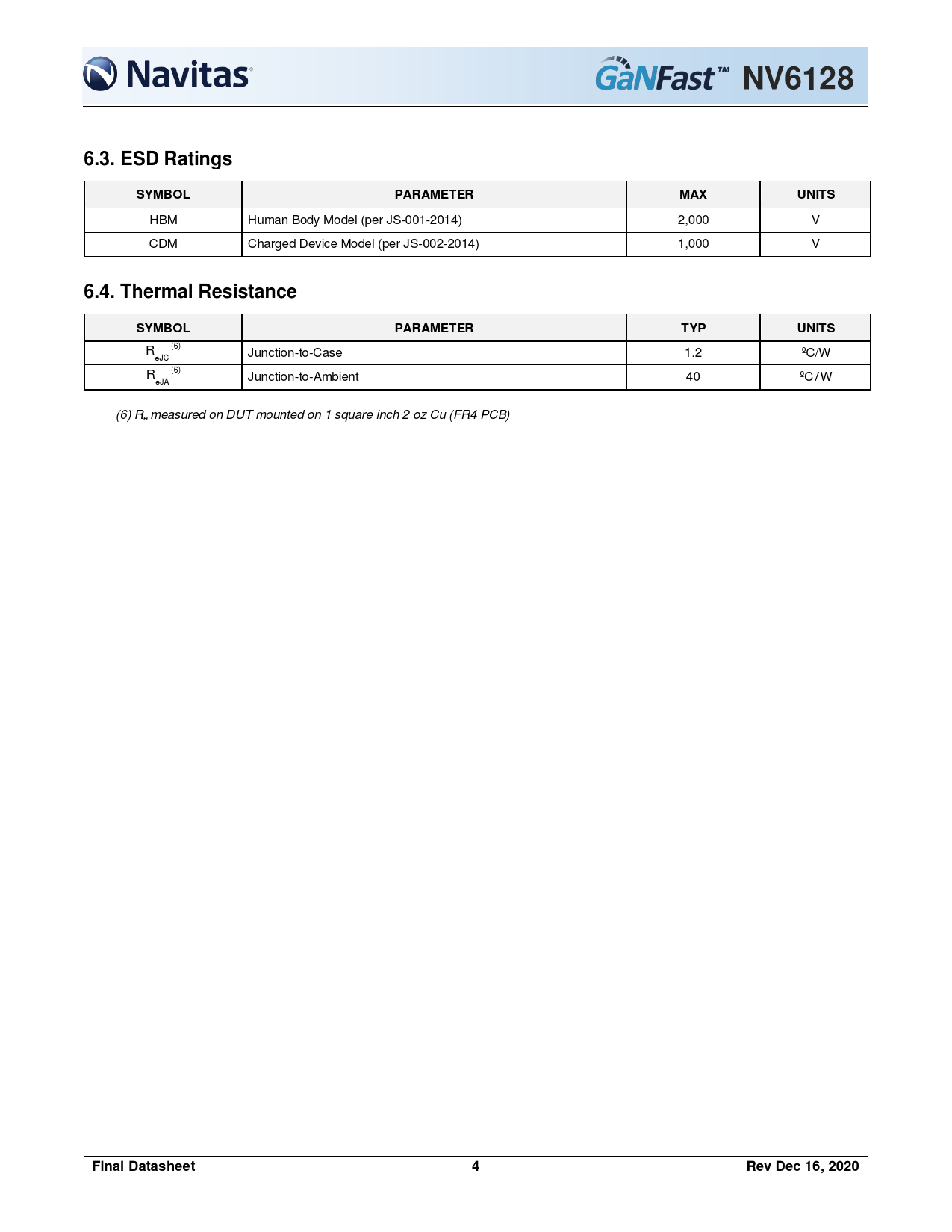

NV6128. 6.3. ESD Ratings. SYMBOL. PARAMETER. MAX. UNITS. 6.4. Thermal Resistance. TYP. Final Datasheet. Rev Dec 16, 2020
Modelllinie für dieses Datenblatt
Textversion des Dokuments
NV6128 8 6.3. ESD Ratings SYMBOL PARAMETER MAX UNITS
HBM Human Body Model (per JS-001-2014) 2,000 V CDM Charged Device Model (per JS-002-2014) 1,000 V
6.4. Thermal Resistance SYMBOL PARAMETER TYP UNITS
R (6) Junction-to-Case 1.2 ºC/W ɵJC R (6) ɵ Junction-to-Ambient 40 ºC/W JA (6) Rɵ measured on DUT mounted on 1 square inch 2 oz Cu (FR4 PCB)
Final Datasheet 4 Rev Dec 16, 2020
