NJU7890. PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE. ■ ATTENUATION RATE VERSION. ■ PIN CONFIGURATION. PMAP11-PM
Modelllinie für dieses Datenblatt
Textversion des Dokuments

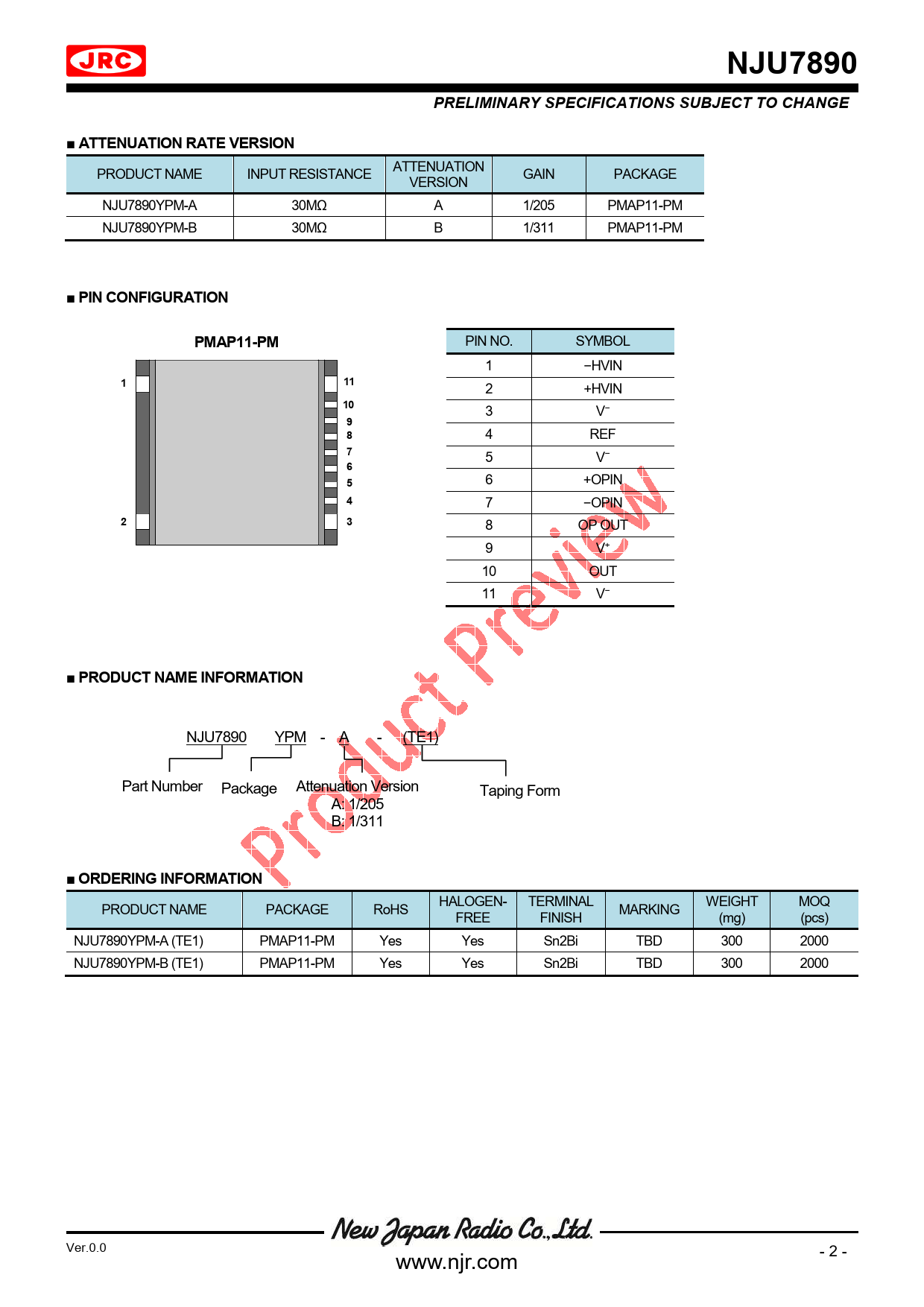

NJU7890 PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE ■ ATTENUATION RATE VERSION
ATTENUATION PRODUCT NAME INPUT RESISTANCE GAIN PACKAGE VERSION NJU7890YPM-A 30MΩ A 1/205 PMAP11-PM NJU7890YPM-B 30MΩ B 1/311 PMAP11-PM
■ PIN CONFIGURATION PMAP11-PM
PIN NO. SYMBOL 1 −HVIN
1 11
2 +HVIN
10
3 V−
9 8
4 REF
7
5 V−
6 5
6 +OPIN
4
7 −OPIN
2 3
8 OP OUT 9 V+ 10 OUT 11 V−
■ PRODUCT NAME INFORMATION
NJU7890 YPM - A - (TE1)
Part Number Package Attenuation Version Taping Form
A: 1/205 B: 1/311
■ ORDERING INFORMATION
HALOGEN- TERMINAL WEIGHT MOQ PRODUCT NAME PACKAGE RoHS MARKING FREE FINISH (mg) (pcs) NJU7890YPM-A (TE1) PMAP11-PM Yes Yes Sn2Bi TBD 300 2000 NJU7890YPM-B (TE1) PMAP11-PM Yes Yes Sn2Bi TBD 300 2000
Ver.0.0 - 2 - www.njr.com
ATTENUATION PRODUCT NAME INPUT RESISTANCE GAIN PACKAGE VERSION NJU7890YPM-A 30MΩ A 1/205 PMAP11-PM NJU7890YPM-B 30MΩ B 1/311 PMAP11-PM
■ PIN CONFIGURATION PMAP11-PM
PIN NO. SYMBOL 1 −HVIN
1 11
2 +HVIN
10
3 V−
9 8
4 REF
7
5 V−
6 5
6 +OPIN
4
7 −OPIN
2 3
8 OP OUT 9 V+ 10 OUT 11 V−
■ PRODUCT NAME INFORMATION
NJU7890 YPM - A - (TE1)
Part Number Package Attenuation Version Taping Form
A: 1/205 B: 1/311
■ ORDERING INFORMATION
HALOGEN- TERMINAL WEIGHT MOQ PRODUCT NAME PACKAGE RoHS MARKING FREE FINISH (mg) (pcs) NJU7890YPM-A (TE1) PMAP11-PM Yes Yes Sn2Bi TBD 300 2000 NJU7890YPM-B (TE1) PMAP11-PM Yes Yes Sn2Bi TBD 300 2000
Ver.0.0 - 2 - www.njr.com
