Datasheet T2035H-8T (STMicroelectronics) - 5

HerstellerSTMicroelectronics
Beschreibung20 A - 800 V - 150°C H-series Triac in TO-220AB
Seiten / Seite11 / 5 — T2035H-8T. Characteristics (curves). Figure 8. Relative variation of …
Dateiformat / GrößePDF / 286 Kb
DokumentenspracheEnglisch

T2035H-8T. Characteristics (curves). Figure 8. Relative variation of holding current and

T2035H-8T Characteristics (curves) Figure 8 Relative variation of holding current and

Modelllinie für dieses Datenblatt

Textversion des Dokuments

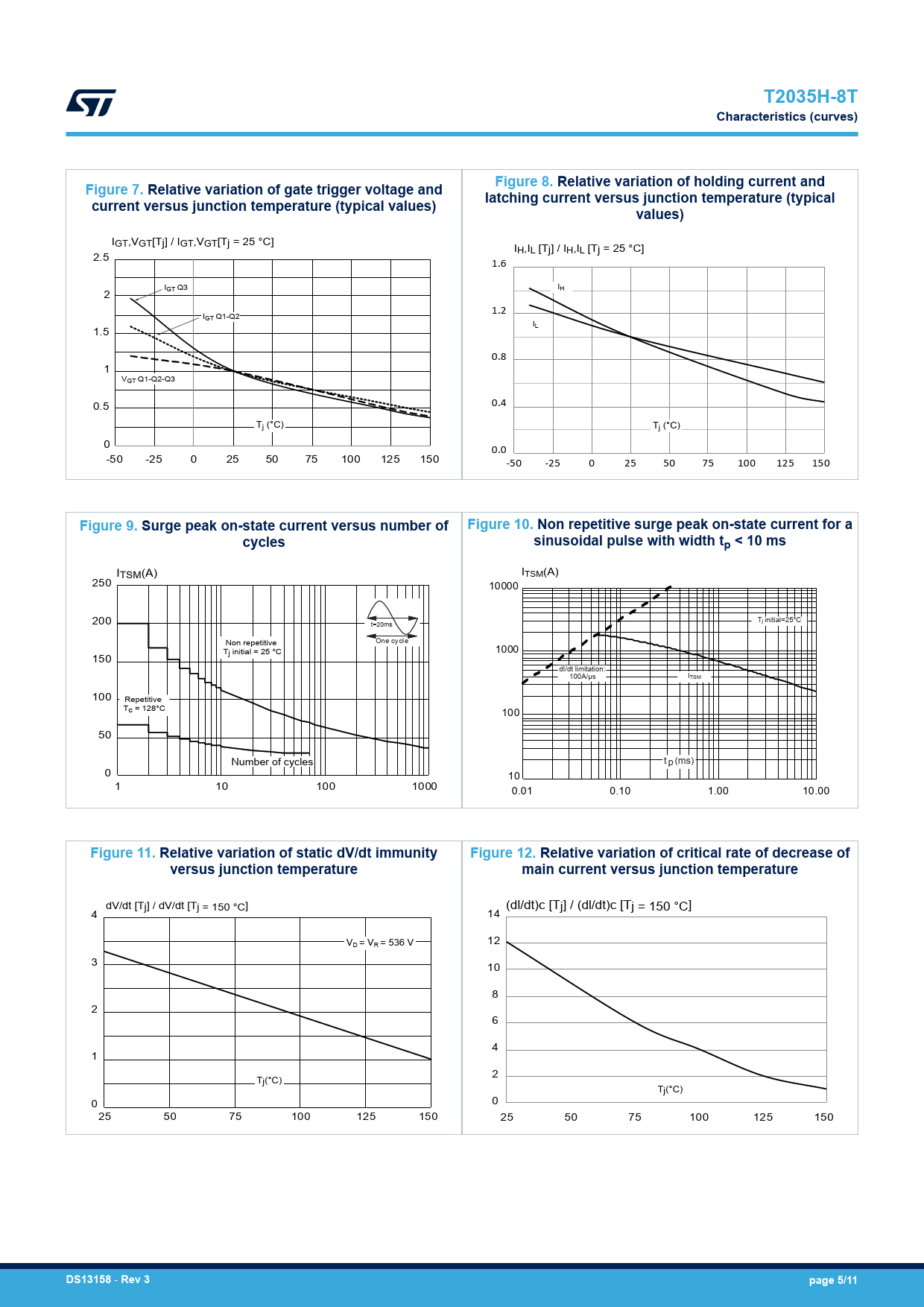

T2035H-8T Characteristics (curves) Figure 8. Relative variation of holding current and Figure 7. Relative variation of gate trigger voltage and latching current versus junction temperature (typical current versus junction temperature (typical values) values)
IGT,VGT[Tj] / IGT,VGT[Tj = 25 °C] IH,IL [Tj] / IH,IL [Tj = 25 °C] 2.5 1.6 I I 2 GT Q3 H 1.2 IGT Q1-Q2 I 1.5 L 0.8 1 VGT Q1-Q2-Q3 0.5 0.4 Tj (°C) Tj (°C) 0 0.0 -50 -25 0 25 50 75 100 125 150 -50 -25 0 25 50 75 100 125 150
Figure 9. Surge peak on-state current versus number of Figure 10. Non repetitive surge peak on-state current for a cycles sinusoidal pulse with width tp < 10 ms
ITSM(A) ITSM(A) 250 10000 200 Tj initial=25°C t=20ms Non repetitive One cycle T 1000 150 j initial = 25 °C dI/dt limitation: 100A/µs ITSM 100 Repetitive Tc = 128°C 100 50 Number of cycles t p (ms) 0 10 1 10 100 1000 0.01 0.10 1.00 10.00
Figure 11. Relative variation of static dV/dt immunity Figure 12. Relative variation of critical rate of decrease of versus junction temperature main current versus junction temperature
dV/dt [Tj] / dV/dt [Tj = 150 °C] (dl/dt)c [Tj] / (dl/dt)c [Tj = 150 °C] 4 14 V 12 D = VR = 536 V 3 10 8 2 6 4 1 2 Tj(°C) Tj(°C) 0 0 25 50 75 100 125 150 25 50 75 100 125 150
