Datasheet T1235H-8T (STMicroelectronics) - 5

HerstellerSTMicroelectronics
Beschreibung12 A - 800 V - 150°C 8H-Triac in TO-220AB
Seiten / Seite11 / 5 — 360°. T1235H-8T. Characteristics (curves). Figure 8. Relative variation …
Dateiformat / GrößePDF / 282 Kb
DokumentenspracheEnglisch

360°. T1235H-8T. Characteristics (curves). Figure 8. Relative variation of holding current and

360° T1235H-8T Characteristics (curves) Figure 8 Relative variation of holding current and

Modelllinie für dieses Datenblatt

Textversion des Dokuments

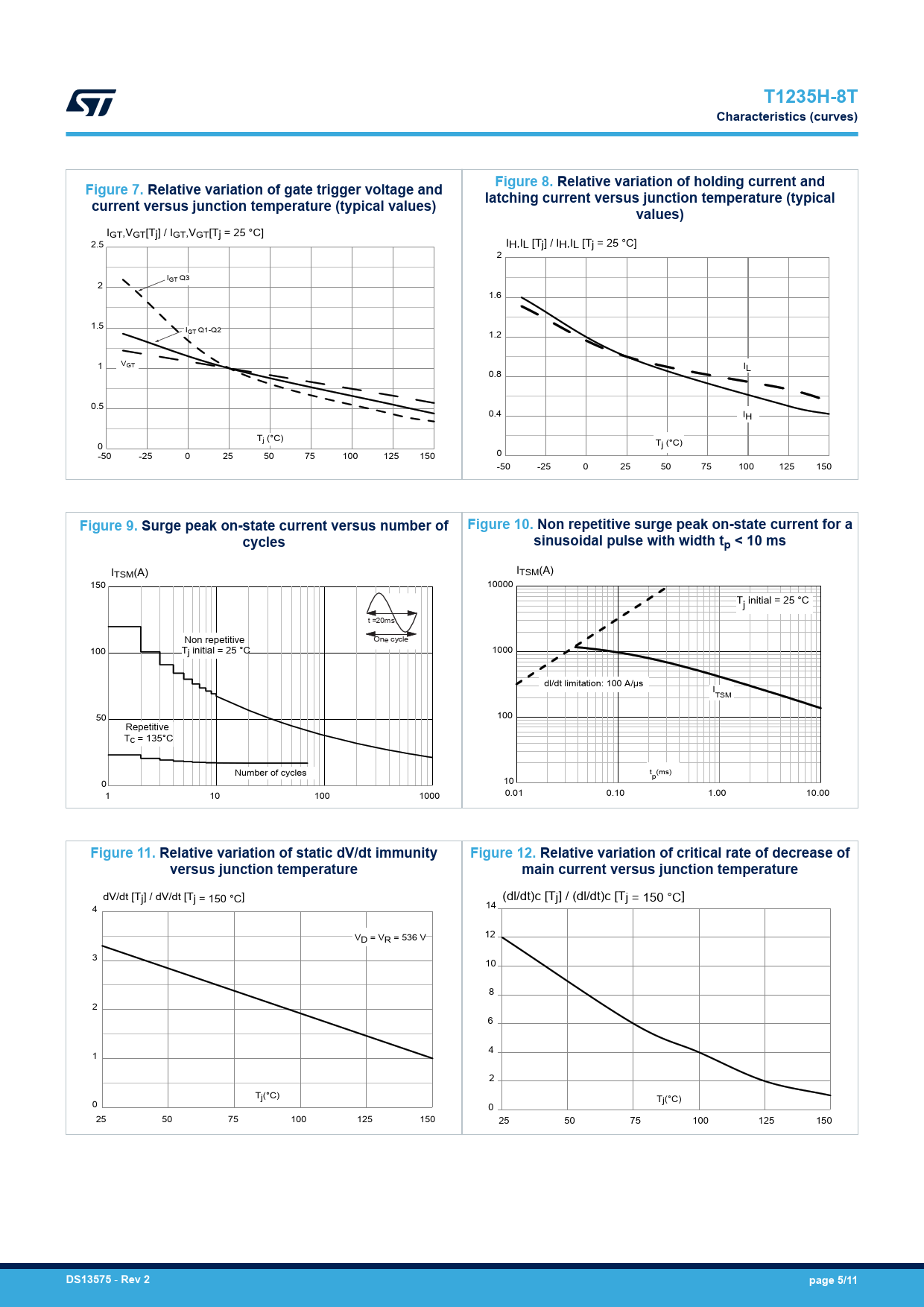

360° 360° T1235H-8T Characteristics (curves) Figure 8. Relative variation of holding current and Figure 7. Relative variation of gate trigger voltage and latching current versus junction temperature (typical current versus junction temperature (typical values) values)
IGT,VGT[Tj] / IGT,VGT[Tj = 25 °C] 2.5 IH,IL [Tj] / IH,IL [Tj = 25 °C] 2 IGT Q3 2 1.6 1.5 IGT Q1-Q2 1.2 1 VGT IL 0.8 0.5 0.4 IH Tj (°C) 0 Tj (°C) -50 -25 0 25 50 75 100 125 150 0 -50 -25 0 25 50 75 100 125 150
Figure 9. Surge peak on-state current versus number of Figure 10. Non repetitive surge peak on-state current for a cycles sinusoidal pulse with width tp < 10 ms
ITSM(A) ITSM(A) 150 10000 Tj initial = 25 °C t =20ms Non repetitive One cycle 100 Tj initial = 25 °C 1000 dl/dt limitation: 100 A/µs ITSM 50 100 Repetitive Tc = 135°C Number of cycles t (ms) p 0 10 1 10 100 1000 0.01 0.10 1.00 10.00
Figure 11. Relative variation of static dV/dt immunity Figure 12. Relative variation of critical rate of decrease of versus junction temperature main current versus junction temperature
dV/dt [Tj] / dV/dt [Tj = 150 °C] (dl/dt)c [Tj] / (dl/dt)c [Tj = 150 °C] 4 14 V 12 D = VR = 536 V 3 10 8 2 6 4 1 2 Tj(°C) T 0 j(°C) 0 25 50 75 100 125 150 25 50 75 100 125 150
DS13575
-
Rev 2 page 5/11
α α Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB package information 3 Ordering information Revision history
