DATASHEET |

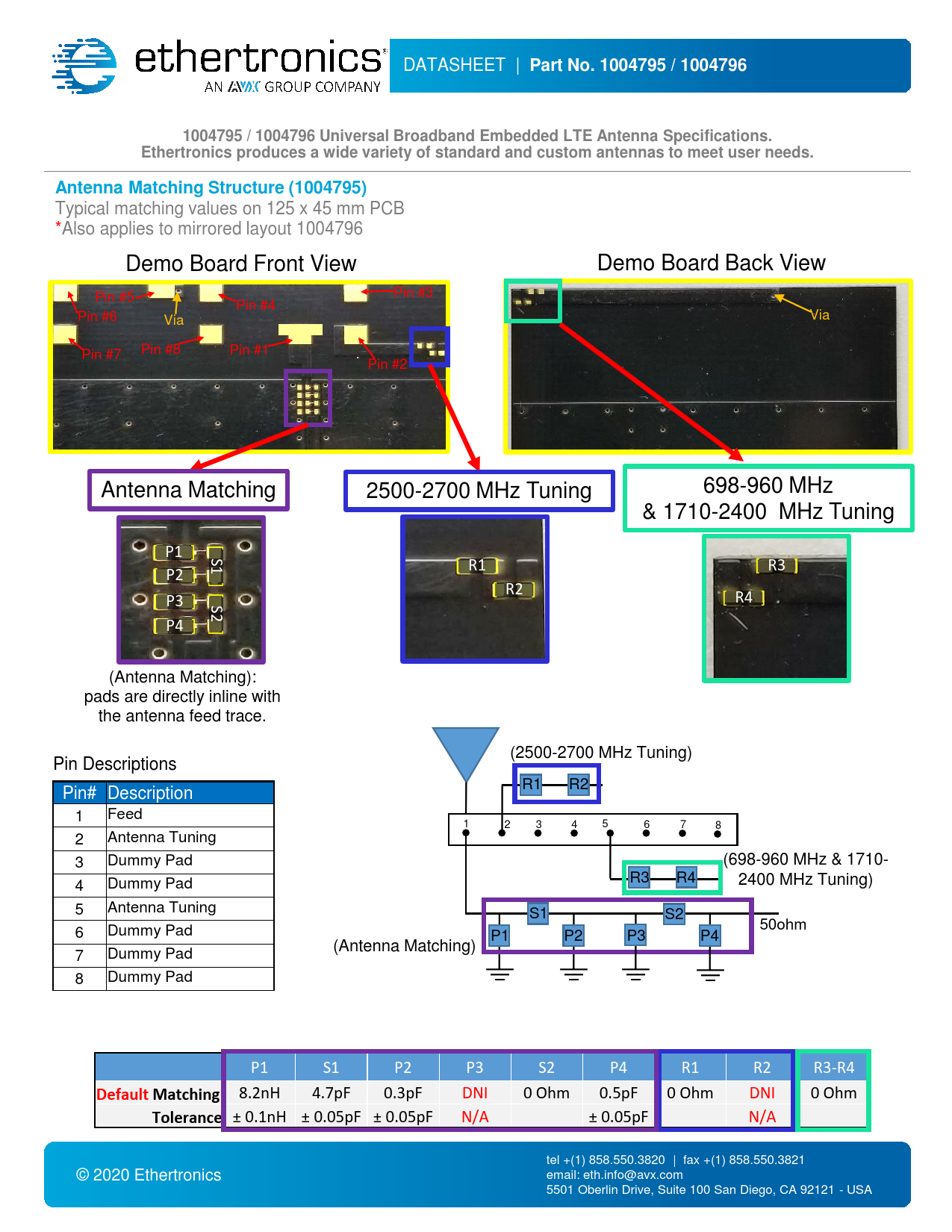

Part No. 1004795 / 1004796 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications. Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Antenna Matching Structure (1004795)
Typical matching values on 125 x 45 mm PCB *Also applies to mirrored layout 1004796 Demo Board Front View Demo Board Back View Pin #3 Pin #5 Pin #4 Pin #6 Via Via Pin #1 Pin #7 Pin #8 Pin #2 698-960 MHz Antenna Matching 2500-2700 MHz Tuning & 1710-2400 MHz Tuning [ [ P1 ] S1 [ R1 ] [ R3 ] [ P2 ] ][ [ R2 ] [ P3 ] S2 [ R4 ] [ P4 ] ] (Antenna Matching): pads are directly inline with the antenna feed trace. (2500-2700 MHz Tuning) Pin Descriptions R1 R2 Pin# Description 1 Feed 1 2 3 4 5 6 7 8 2 Antenna Tuning 3 Dummy Pad (698-960 MHz & 1710- R3 R4 2400 MHz Tuning) 4 Dummy Pad 5 Antenna Tuning S1 S2 50ohm 6 Dummy Pad P1 P2 P3 P4 (Antenna Matching) 7 Dummy Pad 8 Dummy Pad P1 S1 P2 P3 S2 P4 R1 R2 R3-R4
Default Matching
8.2nH 4.7pF 0.3pF DNI 0 Ohm 0.5pF 0 Ohm DNI 0 Ohm
Tolerance
± 0.1nH ± 0.05pF ± 0.05pF N/A ± 0.05pF N/A tel +(1) 858.550.3820 | fax +(1) 858.550.3821 © 2020 Ethertronics email: eth.info@avx.com 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
