Part No. 1004795 / 1004796. 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications
Modelllinie für dieses Datenblatt
Textversion des Dokuments

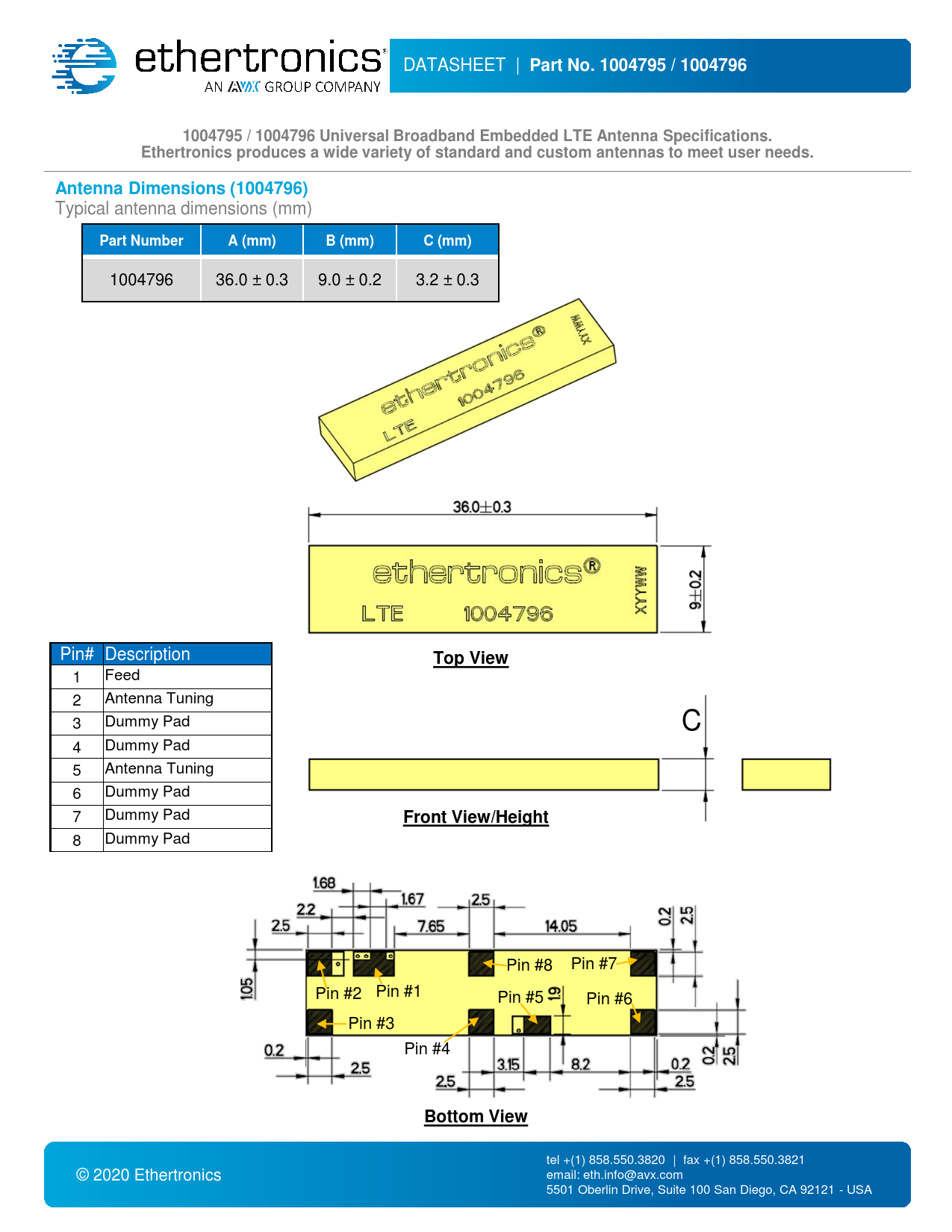

DATASHEET |
Part No. 1004795 / 1004796 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications. Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Antenna Dimensions (1004796)
Typical antenna dimensions (mm)
Part Number A (mm) B (mm) C (mm)
1004796 36.0 ± 0.3 9.0 ± 0.2 3.2 ± 0.3 A B Pin# Description
Top View
1 Feed 2 Antenna Tuning 3 Dummy Pad C 4 Dummy Pad 5 Antenna Tuning 6 Dummy Pad 7 Dummy Pad
Front View/Height
8 Dummy Pad Pin #8 Pin #7 Pin #2 Pin #1 Pin #5 Pin #6 Pin #3 Pin #4
Bottom View
tel +(1) 858.550.3820 | fax +(1) 858.550.3821 © 2020 Ethertronics email: eth.info@avx.com 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
Part No. 1004795 / 1004796 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications. Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Antenna Dimensions (1004796)
Typical antenna dimensions (mm)
Part Number A (mm) B (mm) C (mm)
1004796 36.0 ± 0.3 9.0 ± 0.2 3.2 ± 0.3 A B Pin# Description
Top View
1 Feed 2 Antenna Tuning 3 Dummy Pad C 4 Dummy Pad 5 Antenna Tuning 6 Dummy Pad 7 Dummy Pad
Front View/Height
8 Dummy Pad Pin #8 Pin #7 Pin #2 Pin #1 Pin #5 Pin #6 Pin #3 Pin #4
Bottom View
tel +(1) 858.550.3820 | fax +(1) 858.550.3821 © 2020 Ethertronics email: eth.info@avx.com 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
