Datasheet 1004795, 1004796 (AVX) - 2

DATASHEET |

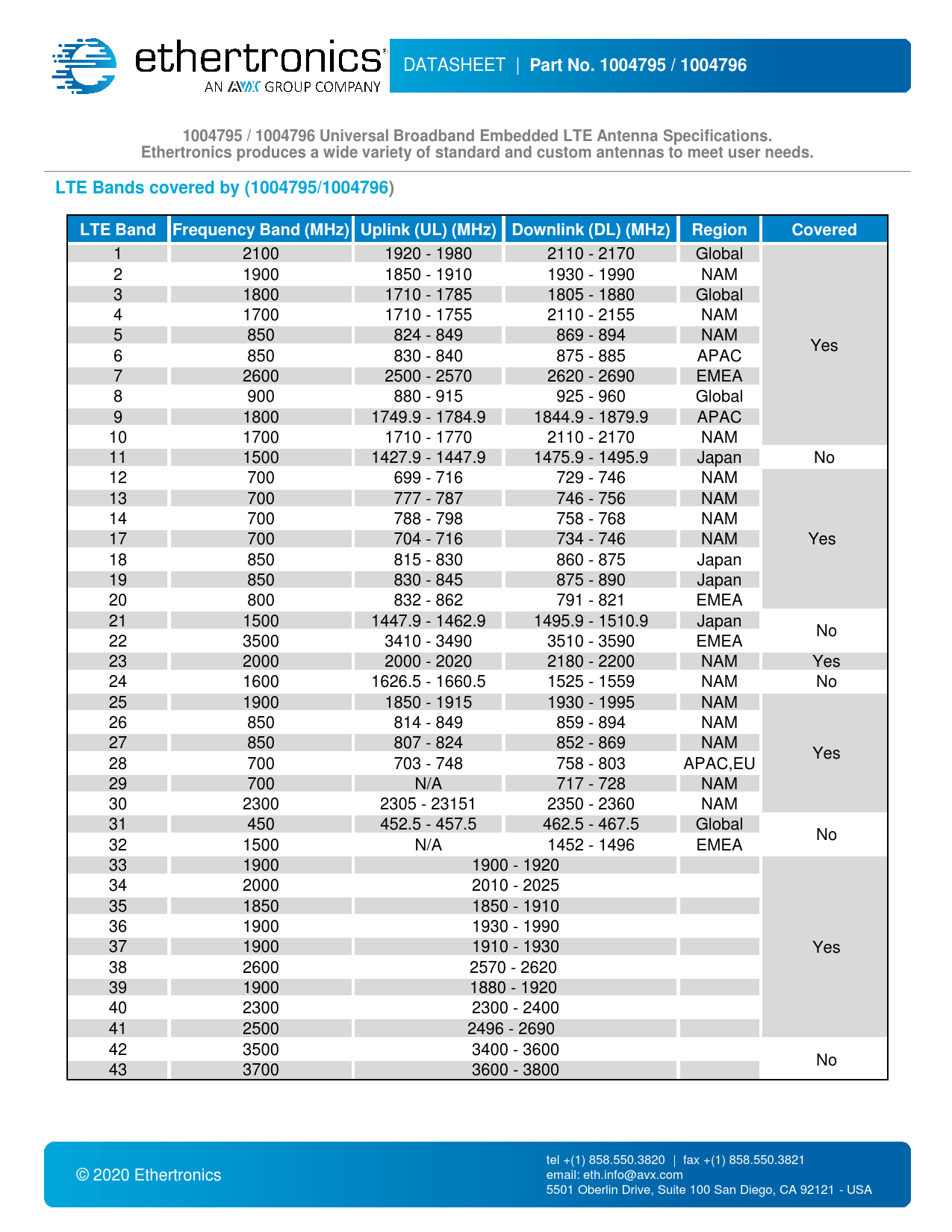

Part No. 1004795 / 1004796 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications. Ethertronics produces a wide variety of standard and custom antennas to meet user needs. LTE Bands covered by (1004795/1004796) LTE Band Frequency Band (MHz) Uplink (UL) (MHz) Downlink (DL) (MHz) Region Covered
1 2100 1920 - 1980 2110 - 2170 Global 2 1900 1850 - 1910 1930 - 1990 NAM 3 1800 1710 - 1785 1805 - 1880 Global 4 1700 1710 - 1755 2110 - 2155 NAM 5 850 824 - 849 869 - 894 NAM Yes 6 850 830 - 840 875 - 885 APAC 7 2600 2500 - 2570 2620 - 2690 EMEA 8 900 880 - 915 925 - 960 Global 9 1800 1749.9 - 1784.9 1844.9 - 1879.9 APAC 10 1700 1710 - 1770 2110 - 2170 NAM 11 1500 1427.9 - 1447.9 1475.9 - 1495.9 Japan No 12 700 699 - 716 729 - 746 NAM 13 700 777 - 787 746 - 756 NAM 14 700 788 - 798 758 - 768 NAM 17 700 704 - 716 734 - 746 NAM Yes 18 850 815 - 830 860 - 875 Japan 19 850 830 - 845 875 - 890 Japan 20 800 832 - 862 791 - 821 EMEA 21 1500 1447.9 - 1462.9 1495.9 - 1510.9 Japan No 22 3500 3410 - 3490 3510 - 3590 EMEA 23 2000 2000 - 2020 2180 - 2200 NAM Yes 24 1600 1626.5 - 1660.5 1525 - 1559 NAM No 25 1900 1850 - 1915 1930 - 1995 NAM 26 850 814 - 849 859 - 894 NAM 27 850 807 - 824 852 - 869 NAM Yes 28 700 703 - 748 758 - 803 APAC,EU 29 700 N/A 717 - 728 NAM 30 2300 2305 - 23151 2350 - 2360 NAM 31 450 452.5 - 457.5 462.5 - 467.5 Global No 32 1500 N/A 1452 - 1496 EMEA 33 1900 1900 - 1920 34 2000 2010 - 2025 35 1850 1850 - 1910 36 1900 1930 - 1990 37 1900 1910 - 1930 Yes 38 2600 2570 - 2620 39 1900 1880 - 1920 40 2300 2300 - 2400 41 2500 2496 - 2690 42 3500 3400 - 3600 No 43 3700 3600 - 3800 tel +(1) 858.550.3820 | fax +(1) 858.550.3821 © 2020 Ethertronics email: eth.info@avx.com 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
