Datasheet HT68F2420 (Holtek) - 8

HerstellerHoltek
BeschreibungHigh Precision HIRC Flash MCU
Seiten / Seite70 / 8 — HT68F2420. High Precision HIRC Flash MCU. D.C. Characteristics. Operating …
Dateiformat / GrößePDF / 1.2 Mb
DokumentenspracheEnglisch

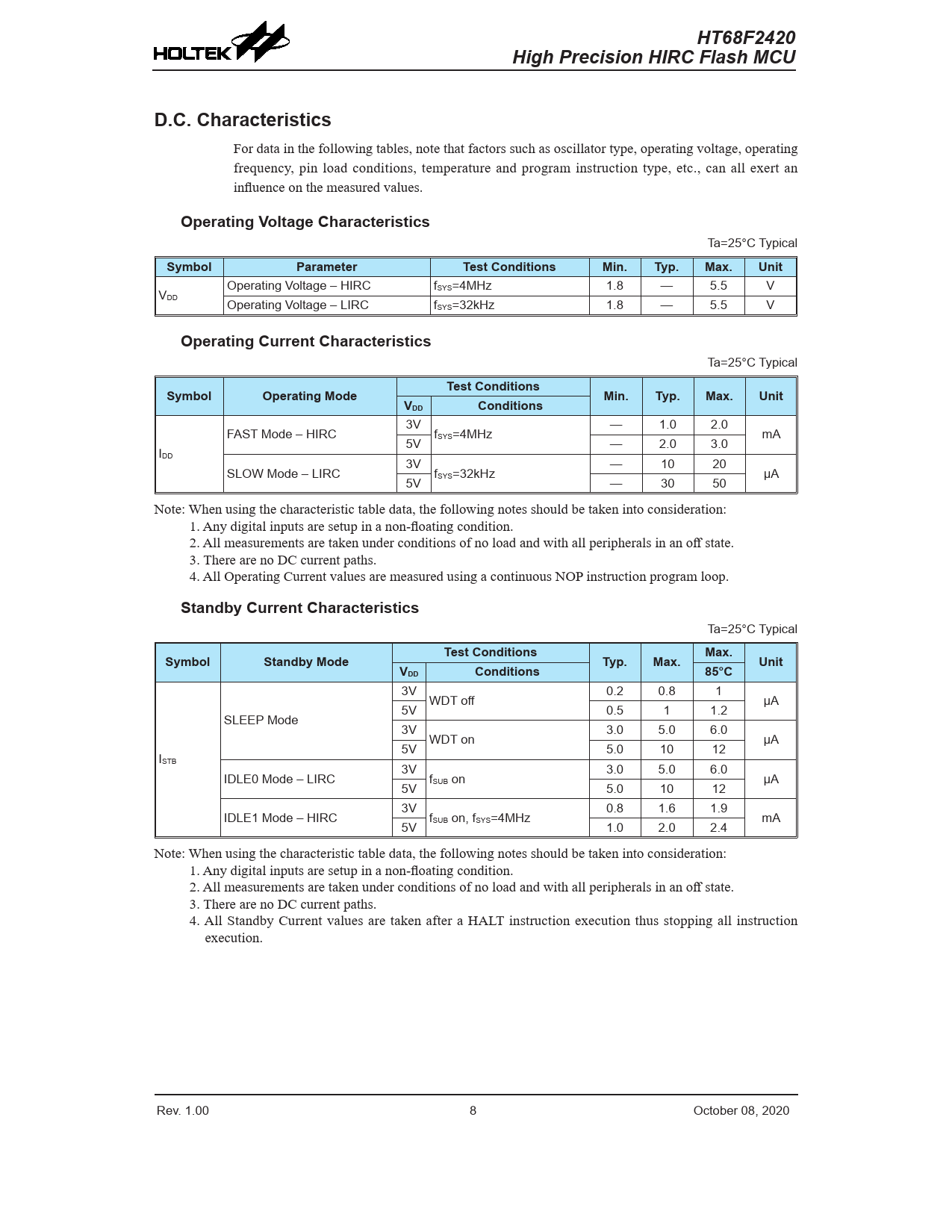

HT68F2420. High Precision HIRC Flash MCU. D.C. Characteristics. Operating Voltage Characteristics. Symbol. Parameter

HT68F2420 High Precision HIRC Flash MCU D.C Characteristics Operating Voltage Characteristics Symbol Parameter

Modelllinie für dieses Datenblatt

Textversion des Dokuments

HT68F2420 HT68F2420 High Precision HIRC Flash MCU High Precision HIRC Flash MCU D.C. Characteristics
For data in the following tables, note that factors such as oscillator type, operating voltage, operating frequency, pin load conditions, temperature and program instruction type, etc., can all exert an influence on the measured values.
Operating Voltage Characteristics
Ta=25°C Typical
Symbol Parameter Test Conditions Min. Typ. Max. Unit
Operating Voltage – HIRC f V SYS=4MHz 1.8 — 5.5 V DD Operating Voltage – LIRC fSYS=32kHz 1.8 — 5.5 V
Operating Current Characteristics
Ta=25°C Typical
Test Conditions Symbol Operating Mode Min. Typ. Max. Unit VDD Conditions
3V — 1.0 2.0 FAST Mode – HIRC fSYS=4MHz mA 5V — 2.0 3.0 IDD 3V — 10 20 SLOW Mode – LIRC fSYS=32kHz μA 5V — 30 50 Note: When using the characteristic table data, the following notes should be taken into consideration: 1. Any digital inputs are setup in a non-floating condition. 2. All measurements are taken under conditions of no load and with all peripherals in an off state. 3. There are no DC current paths. 4. All Operating Current values are measured using a continuous NOP instruction program loop.
Standby Current Characteristics
Ta=25°C Typical
Test Conditions Max. Symbol Standby Mode Typ. Max. Unit VDD Conditions 85°C
3V 0.2 0.8 1 WDT off μA 5V 0.5 1 1.2 SLEEP Mode 3V 3.0 5.0 6.0 WDT on μA 5V 5.0 10 12 ISTB 3V 3.0 5.0 6.0 IDLE0 Mode – LIRC fSUB on μA 5V 5.0 10 12 3V 0.8 1.6 1.9 IDLE1 Mode – HIRC fSUB on, fSYS=4MHz mA 5V 1.0 2.0 2.4 Note: When using the characteristic table data, the following notes should be taken into consideration: 1. Any digital inputs are setup in a non-floating condition. 2. All measurements are taken under conditions of no load and with all peripherals in an off state. 3. There are no DC current paths. 4. All Standby Current values are taken after a HALT instruction execution thus stopping all instruction execution. Rev. 1.00 8 October 08, 2020 Rev. 1.00 9 October 08, 2020 Document Outline Features CPU Features Peripheral Features General Description Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings D.C. Characteristics Operating Voltage Characteristics Operating Current Characteristics Standby Current Characteristics A.C. Characteristics Internal Oscillator Characteristics System Start Up Time Characteristics Input/Output Characteristics REM/REMDRV Pin Characteristics LVR Electrical Characteristics Power on Reset Characteristics System Architecture Clocking and Pipelining Program Counter Stack Arithmetic and Logic Unit – ALU Flash Program Memory Structure Special Vectors Look-up Table Table Program Example In Circuit Programming – ICP On-Chip Debug Support – OCDS Data Memory Structure General Purpose Data Memory Special Purpose Data Memory Special Function Register Description Indirect Addressing Registers – IAR0 Memory Pointers – MP0 Accumulator – ACC Program Counter Low Register – PCL Look-up Table Registers – TBLP, TBLH Status Register – STATUS Oscillators Oscillator Overview System Clock Configurations Internal RC Oscillator – HIRC Internal 32kHz Oscillator – LIRC Operating Modes and System Clocks System Clocks System Operation Modes Control Register Operating Mode Switching Standby Current Considerations Wake-up Watchdog Timer Watchdog Timer Clock Source Watchdog Timer Control Register Watchdog Timer Operation Reset and Initialisation Reset Functions Reset Initial Conditions Input/Output Ports Pull-high Resistors I/O Pin Wake-up I/O Port Control Registers I/O Pin Structures Programming Considerations 9-bit Timer with Carrier Output Timer and Carrier Output Conctrol Register Timer Operation Carrier Output Carrier Output Pins Interrupts Interrupt Register Interrupt Operation Time Base Interrupt Interrupt Wake-up Function Programming Considerations Application Circuits Instruction Set Introduction Instruction Timing Moving and Transferring Data Arithmetic Operations Logical and Rotate Operation Branches and Control Transfer Bit Operations Table Read Operations Other Operations Instruction Set Summary Table Conventions Instruction Definition Package Information 8-pin SOP (150mil) Outline Dimensions 16-pin NSOP (150mil) Outline Dimensions 20-pin NSOP (150mil) Outline Dimensions 20-pin SSOP (150mil) Outline Dimensions
