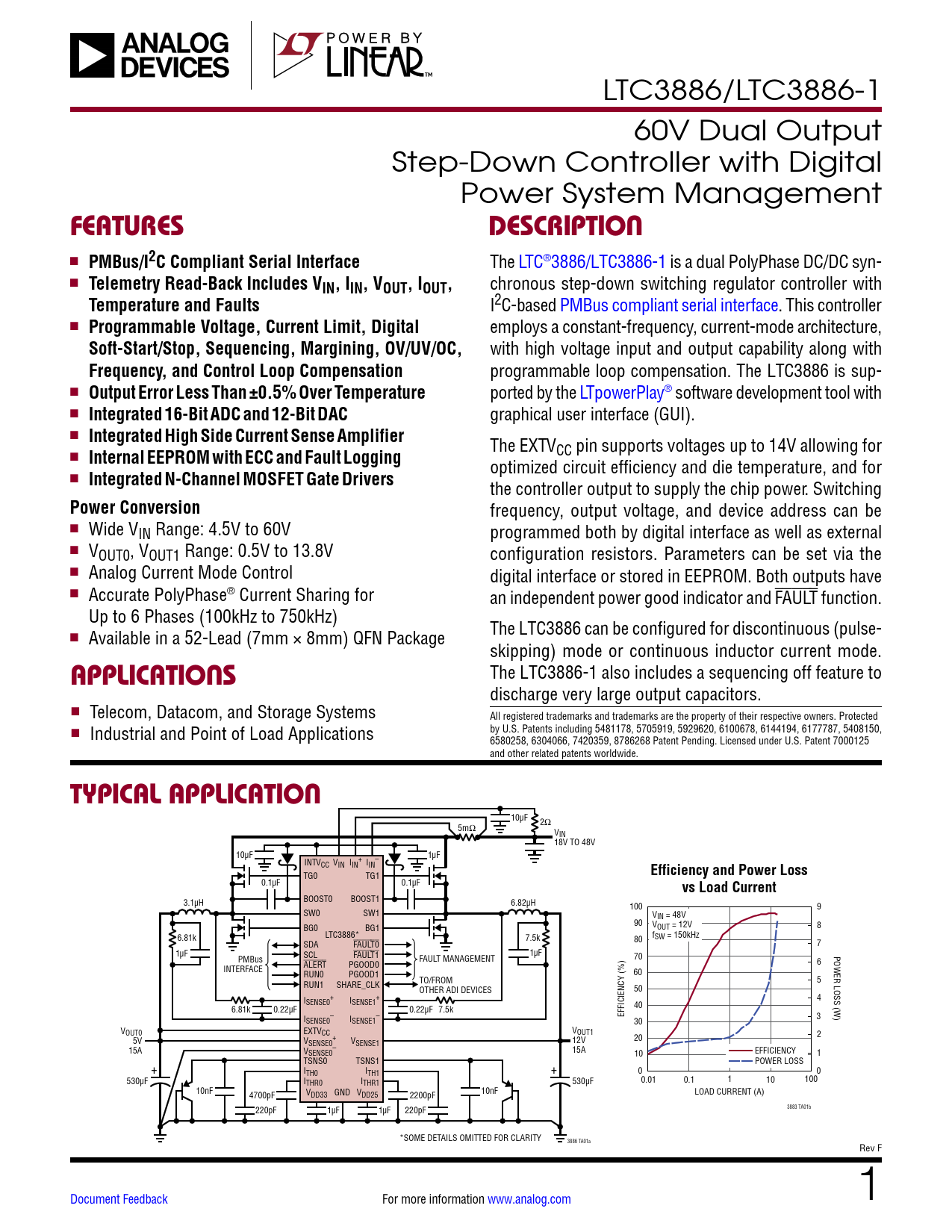

LTC3886/LTC3886-1 60V Dual Output Step-Down Controller with Digital Power System Management
FEATURES DESCRIPTION
n
PMBus/I2C Compliant Serial Interface
The LTC®3886/LTC3886-1 is a dual PolyPhase DC/DC syn- n
Telemetry Read-Back Includes VIN, IIN, VOUT, IOUT,
chronous step-down switching regulator controller with
Temperature and Faults
I2C-based PMBus compliant serial interface. This controller n
Programmable Voltage, Current Limit, Digital
employs a constant-frequency, current-mode architecture,
Soft-Start/Stop, Sequencing, Margining, OV/UV/OC,
with high voltage input and output capability along with
Frequency, and Control Loop Compensation
programmable loop compensation. The LTC3886 is sup- n
Output Error Less Than ±0.5% Over Temperature
ported by the LTpowerPlay® software development tool with n
Integrated 16-Bit ADC and 12-Bit DAC
graphical user interface (GUI). n
Integrated High Side Current Sense Amplifier
The EXTVCC pin supports voltages up to 14V allowing for n
Internal EEPROM with ECC and Fault Logging
optimized circuit efficiency and die temperature, and for n
Integrated N-Channel MOSFET Gate Drivers
the controller output to supply the chip power. Switching
Power Conversion
frequency, output voltage, and device address can be n Wide VIN Range: 4.5V to 60V programmed both by digital interface as well as external n VOUT0, VOUT1 Range: 0.5V to 13.8V configuration resistors. Parameters can be set via the n Analog Current Mode Control digital interface or stored in EEPROM. Both outputs have n Accurate PolyPhase® Current Sharing for an independent power good indicator and FAULT function. Up to 6 Phases (100kHz to 750kHz) The LTC3886 can be configured for discontinuous (pulse- n Available in a 52-Lead (7mm × 8mm) QFN Package skipping) mode or continuous inductor current mode. The LTC3886-1 also includes a sequencing off feature to
APPLICATIONS
discharge very large output capacitors. n Telecom, Datacom, and Storage Systems All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. Patents including 5481178, 5705919, 5929620, 6100678, 6144194, 6177787, 5408150, n Industrial and Point of Load Applications 6580258, 6304066, 7420359, 8786268 Patent Pending. Licensed under U.S. Patent 7000125 and other related patents worldwide.
TYPICAL APPLICATION
