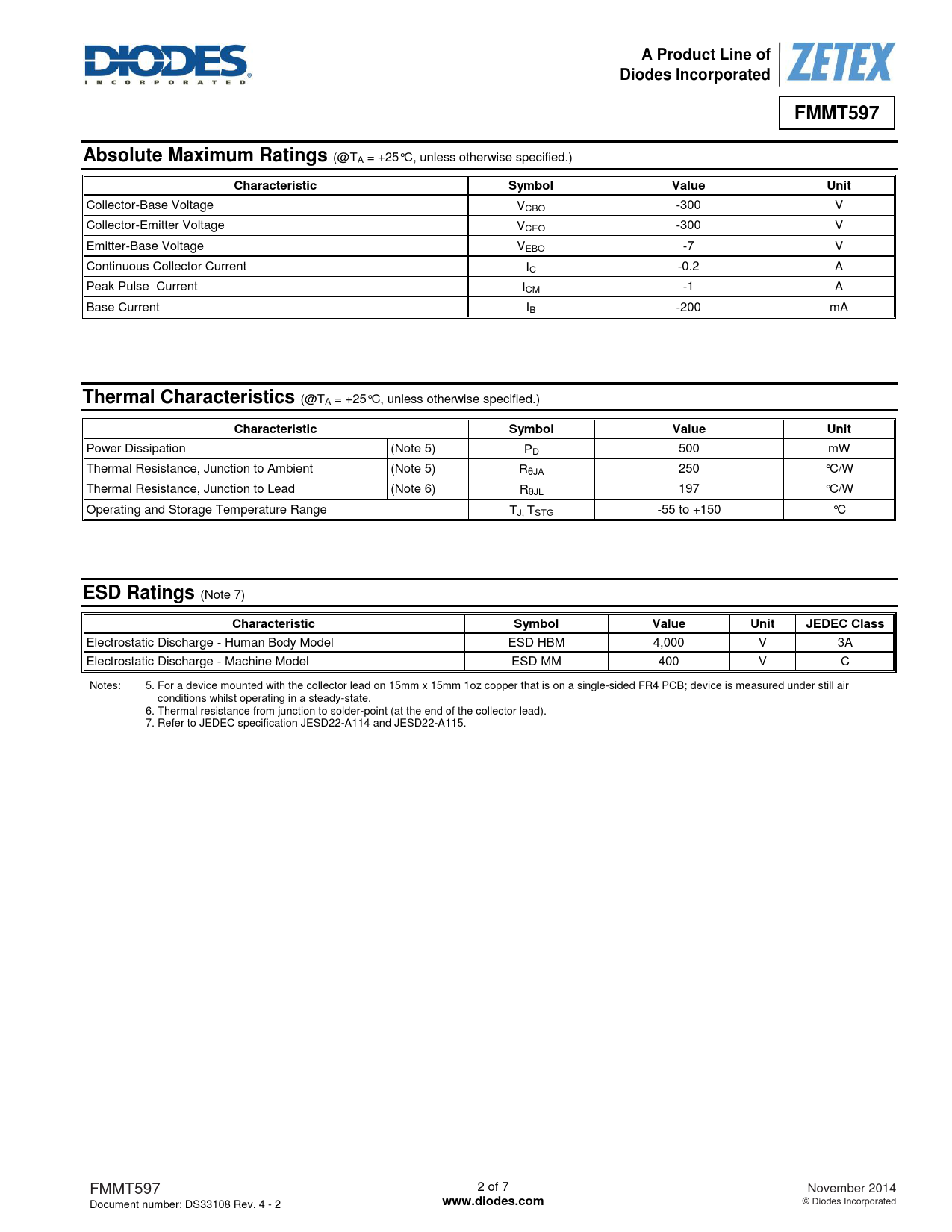

A Product Line of Diodes Incorporated FMMT597 Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Base Voltage VCBO -300 V Collector-Emitter Voltage VCEO -300 V Emitter-Base Voltage VEBO -7 V Continuous Collector Current IC -0.2 A Peak Pulse Current ICM -1 A Base Current IB -200 mA
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation (Note 5) PD 500 mW Thermal Resistance, Junction to Ambient (Note 5) RθJA 250 °C/W Thermal Resistance, Junction to Lead (Note 6) RθJL 197 °C/W Operating and Storage Temperature Range TJ, TSTG -55 to +150 °C
ESD Ratings
(Note 7)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge - Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge - Machine Model ESD MM 400 V C Notes: 5. For a device mounted with the collector lead on 15mm x 15mm 1oz copper that is on a single-sided FR4 PCB; device is measured under still air conditions whilst operating in a steady-state. 6. Thermal resistance from junction to solder-point (at the end of the collector lead). 7. Refer to JEDEC specification JESD22-A114 and JESD22-A115. FMMT597 2 of 7 November 2014 Document number: DS33108 Rev. 4 - 2
