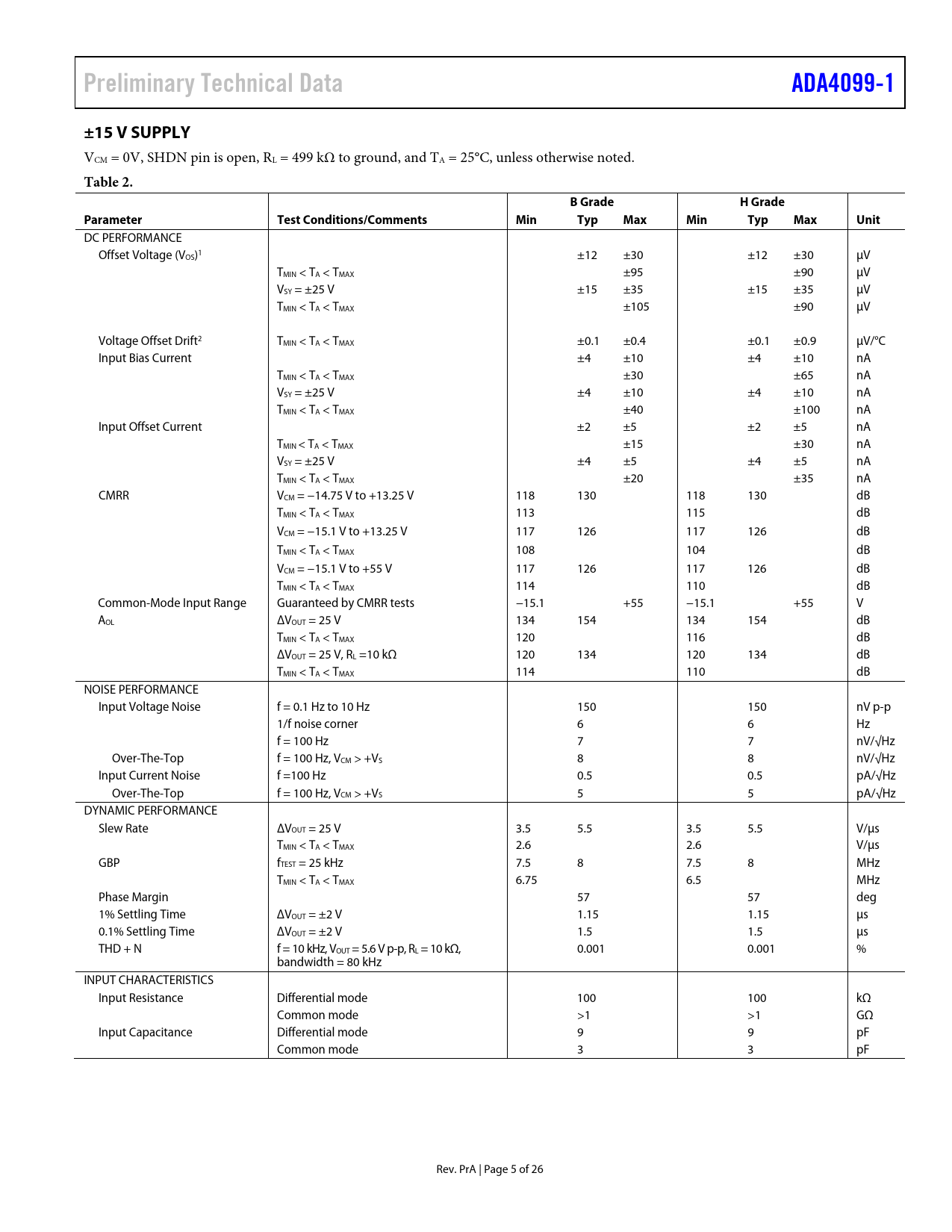

Preliminary Technical Data ADA4099-1 ±15 V SUPPLY
VCM = 0V, SHDN pin is open, RL = 499 kΩ to ground, and TA = 25°C, unless otherwise noted.
Table 2. B Grade H Grade Parameter Test Conditions/Comments Min Typ Max Min Typ Ma Uni x t
DC PERFORMANCE Offset Voltage (VOS)1 ±12 ±30 ±12 ±30 μV TMIN < TA < TMAX ±95 ±90 μV VSY = ±25 V ±15 ±35 ±15 ±35 μV TMIN < TA < TMAX ±105 ±90 μV Voltage Offset Drift2 TMIN < TA < TMAX ±0.1 ±0.4 ±0.1 ±0.9 μV/°C Input Bias Current ±4 ±10 ±4 ±10 nA TMIN < TA < TMAX ±30 ±65 nA VSY = ±25 V ±4 ±10 ±4 ±10 nA TMIN < TA < TMAX ±40 ±100 nA Input Offset Current ±2 ±5 ±2 ±5 nA TMIN < TA < TMAX ±15 ±30 nA VSY = ±25 V ±4 ±5 ±4 ±5 nA TMIN < TA < TMAX ±20 ±35 nA CMRR VCM = −14.75 V to +13.25 V 118 130 118 130 dB TMIN < TA < TMAX 113 115 dB VCM = −15.1 V to +13.25 V 117 126 117 126 dB TMIN < TA < TMAX 108 104 dB VCM = −15.1 V to +55 V 117 126 117 126 dB TMIN < TA < TMAX 114 110 dB Common-Mode Input Range Guaranteed by CMRR tests −15.1 +55 −15.1 +55 V AOL ΔVOUT = 25 V 134 154 134 154 dB TMIN < TA < TMAX 120 116 dB ΔVOUT = 25 V, RL =10 kΩ 120 134 120 134 dB TMIN < TA < TMAX 114 110 dB NOISE PERFORMANCE Input Voltage Noise f = 0.1 Hz to 10 Hz 150 150 nV p-p 1/f noise corner 6 6 Hz f = 100 Hz 7 7 nV/√Hz Over-The-Top f = 100 Hz, VCM > +VS 8 8 nV/√Hz Input Current Noise f =100 Hz 0.5 0.5 pA/√Hz Over-The-Top f = 100 Hz, VCM > +VS 5 5 pA/√Hz DYNAMIC PERFORMANCE Slew Rate ΔVOUT = 25 V 3.5 5.5 3.5 5.5 V/μs TMIN < TA < TMAX 2.6 2.6 V/μs GBP fTEST = 25 kHz 7.5 8 7.5 8 MHz TMIN < TA < TMAX 6.75 6.5 MHz Phase Margin 57 57 deg 1% Settling Time ΔVOUT = ±2 V 1.15 1.15 μs 0.1% Settling Time ΔVOUT = ±2 V 1.5 1.5 μs THD + N f = 10 kHz, VOUT = 5.6 V p-p, RL = 10 kΩ, 0.001 0.001 % bandwidth = 80 kHz INPUT CHARACTERISTICS Input Resistance Differential mode 100 100 kΩ Common mode >1 >1 GΩ Input Capacitance Differential mode 9 9 pF Common mode 3 3 pF Rev. PrA | Page 5 of 26 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATION CIRCUIT TABLE OF CONTENTS SPECIFICATIONS 5 V SUPPLY ±15 V SUPPLY ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT PROTECTION OVER-THE-TOP OPERATION CONSIDERATIONS OUTPUT SHUTDOWN PIN (SHDN) APPLICATIONS INFORMATION LARGE RESISTOR GAIN OPERATION RECOMMENDED VALUES FOR VARIOUS GAINS NOISE DISTORTION POWER DISSIPATION AND THERMAL SHUTDOWN CIRCUIT LAYOUT CONSIDERATIONS POWER SUPPLY BYPASSING GROUNDING ESD PROTECTION WHEN POWERED RELATED PRODUCTS TYPICAL APPLICATIONS OUTLINE DIMENSIONS
