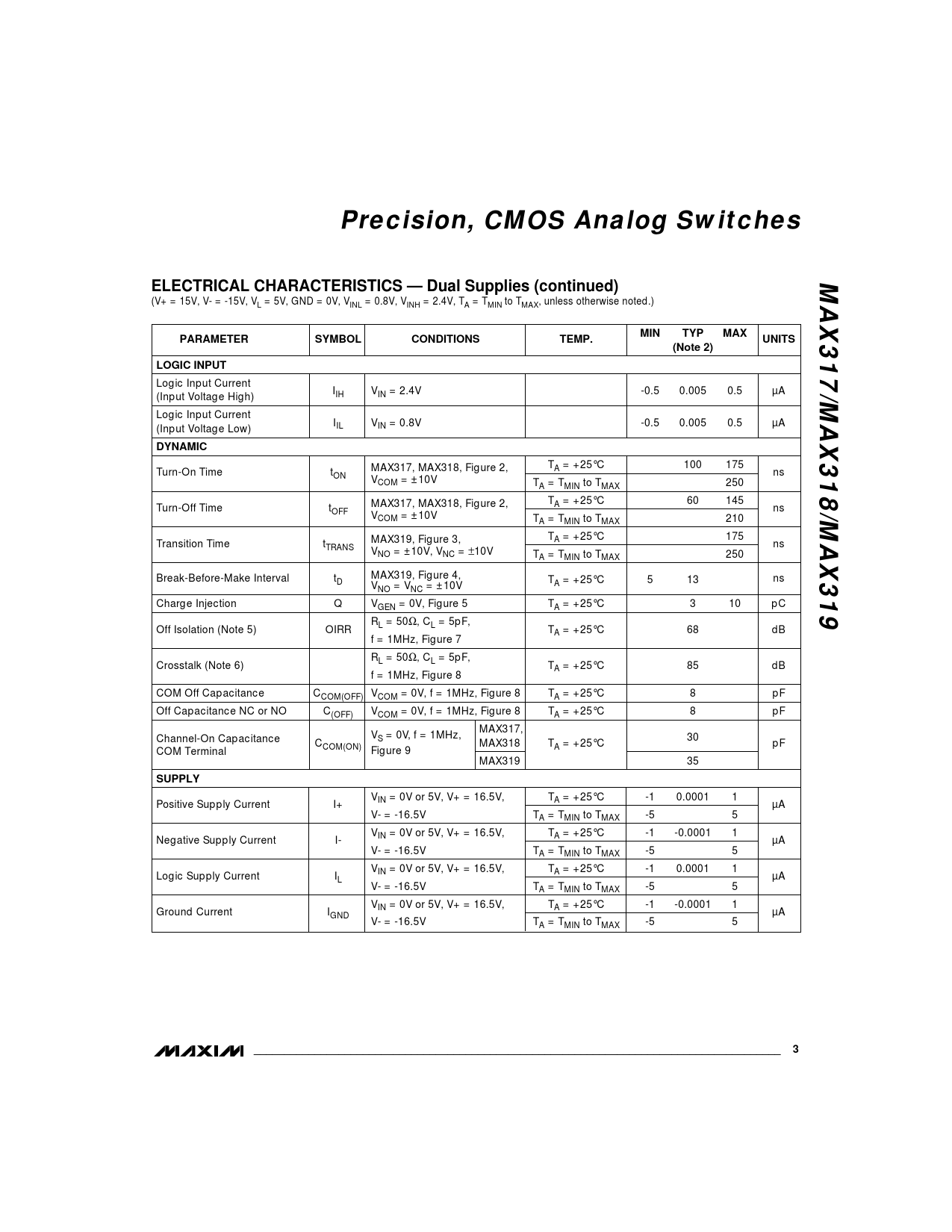

Precision, CMOS Analog Switches MAX317/MAX318/MAX319 ELECTRICAL CHARACTERISTICS — Dual Supplies (continued)
(V+ = 15V, V- = -15V, VL = 5V, GND = 0V, VINL = 0.8V, VINH = 2.4V, TA = TMIN to TMAX, unless otherwise noted.)
MIN TYP MAX PARAMETER SYMBOL CONDITIONS TEMP. UNITS (Note 2) LOGIC INPUT
Logic Input Current IIH VIN = 2.4V -0.5 0.005 0.5 µA (Input Voltage High) Logic Input Current IIL VIN = 0.8V -0.5 0.005 0.5 µA (Input Voltage Low)
DYNAMIC
Turn-On Time t MAX317, MAX318, Figure 2, TA = +25°C 100 175 ON ns VCOM = ±10V TA = TMIN to TMAX 250 Turn-Off Time t MAX317, MAX318, Figure 2, TA = +25°C 60 145 OFF ns VCOM = ±10V TA = TMIN to TMAX 210 Transition Time t MAX319, Figure 3, TA = +25°C 175 TRANS ns VNO = ±10V, VNC = ±10V TA = TMIN to TMAX 250 Break-Before-Make Interval t MAX319, Figure 4, D TA = +25°C 5 13 ns VNO = VNC = ±10V Charge Injection Q VGEN = 0V, Figure 5 TA = +25°C 3 10 pC R Off Isolation (Note 5) OIRR L = 50Ω, CL = 5pF, TA = +25°C 68 dB f = 1MHz, Figure 7 R Crosstalk (Note 6) L = 50Ω, CL = 5pF, TA = +25°C 85 dB f = 1MHz, Figure 8 COM Off Capacitance CCOM(OFF) VCOM = 0V, f = 1MHz, Figure 8 TA = +25°C 8 pF Off Capacitance NC or NO C(OFF) VCOM = 0V, f = 1MHz, Figure 8 TA = +25°C 8 pF MAX317, Channel-On Capacitance VS = 0V, f = 1MHz, 30 C MAX318 T COM(ON) A = +25°C pF COM Terminal Figure 9 MAX319 35
SUPPLY
V Positive Supply Current I+ IN = 0V or 5V, V+ = 16.5V, TA = +25°C -1 0.0001 1 µA V- = -16.5V TA = TMIN to TMAX -5 5 V Negative Supply Current I- IN = 0V or 5V, V+ = 16.5V, TA = +25°C -1 -0.0001 1 µA V- = -16.5V TA = TMIN to TMAX -5 5 V Logic Supply Current I IN = 0V or 5V, V+ = 16.5V, TA = +25°C -1 0.0001 1 L µA V- = -16.5V TA = TMIN to TMAX -5 5 V Ground Current I IN = 0V or 5V, V+ = 16.5V, TA = +25°C -1 -0.0001 1 GND µA V- = -16.5V TA = TMIN to TMAX -5 5
_______________________________________________________________________________________ 3
