Datasheet ZTX869 (Diodes) - 2

HerstellerDiodes
BeschreibungSilicon Planar Medium Power High Current Transistor
Seiten / Seite3 / 2 — Derating curve. Maximum transient thermal impedance
Dateiformat / GrößePDF / 68 Kb
DokumentenspracheEnglisch

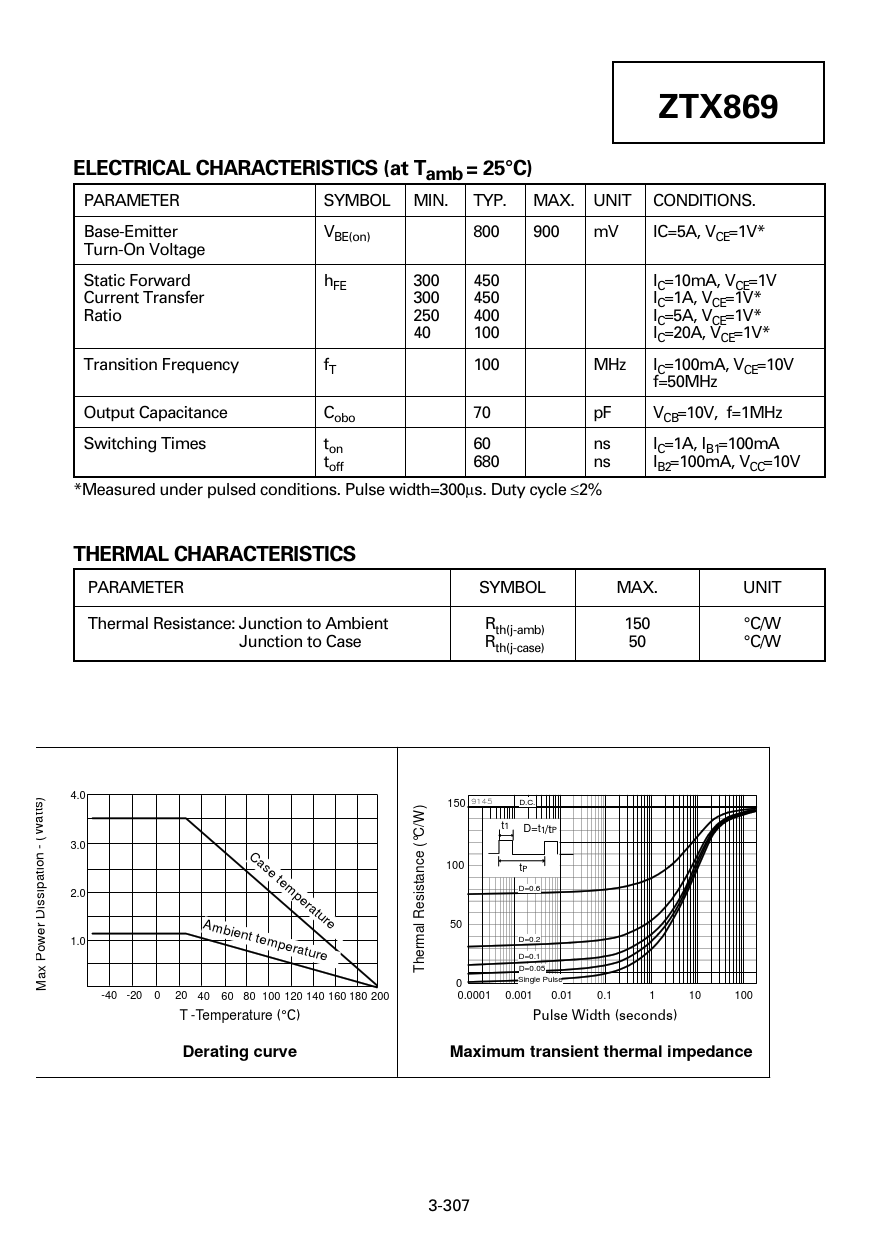

Derating curve. Maximum transient thermal impedance

Derating curve Maximum transient thermal impedance

Modelllinie für dieses Datenblatt

Textversion des Dokuments

NPN SILICON PLANAR MEDIUM POWER ZTX869 HIGH CURRENT TRANSISTOR ZTX869 ISSUE 1 – APRIL 94 ELECTRICAL CHARACTERISTICS (at T FEATURES amb = 25°C) * 25 Volt VCEO PARAMETER SYMBOL MIN. TYP. MAX. UNIT CONDITIONS. * 5 Amps continuous current Base-Emitter VBE(on) 800 900 mV IC=5A, VCE=1V* * Up to 20 Amps peak current Turn-On Voltage * Very low saturation voltage Static Forward hFE 300 450 IC=10mA, VCE=1V * Hig h Gain C Current Transfer 300 450 IC=1A, VCE=1V* * P B E tot=1.2 Watts Ratio 250 400 IC=5A, VCE=1V* 40 100 IC=20A, VCE=1V* E-Line Transition Frequency f TO92 Compatible T 100 MHz IC=100mA, VCE=10V f=50MHz ABSOLUTE MAXIMUM RATINGS. Output Capacitance C PARAMETER SYMBOL VALUE UNIT obo 70 pF VCB=10V, f=1MHz Col ector-Base Voltage VCBO 60 V Switching Times ton 60 ns IC=1A, IB1=100mA toff 680 ns IB2=100mA, VCC=10V Collector-Emitter Voltage VCEO 25 V *Measured under pulsed conditions. Pulse width=300µs. Duty cycle ≤2% Emitter-Base Voltage VEBO 6 V Peak Pulse Current ICM 20 A Continuous Collector Current IC 5 A THERMAL CHARACTERISTICS Practical Power Dissipation* Ptotp 1.58 W PARAMETER SYMBOL MAX. UNIT Power Dissipation at Tamb=25°C Ptot 1.2 W Thermal Resistance: Junction to Ambient Rth(j-amb) 150 °C/W Operating and Storage Temperature Range Tj:Tstg -55 to +200 °C Junction to Case Rth(j-case) 50 °C/W *The power which can be dissipated assuming the device is mounted in a typical manner on a P.C.B. with copper equal to 1 inch square minimum ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated) PARAMETER SYMBOL MIN. TYP. MAX. UNIT CONDITIONS. Col ector-Base Breakdown V(BR)CBO 60 120 V IC=100µA Voltage ) 4.0 s 150 D.C. tt ) Col ector-Emitter Breakdown V(BR)CER 60 120 V IC=1µA, RB ≤1KΩ a /W t1 D=t1/tP Voltag (W °C - 3.0 Case te Col ector-Emitter Breakdown V ce ( (BR)CEO 25 35 V IC=10mA* on 100 ti n tP Voltage pa ta i m s 2.0 peratu D=0.6 ss si i e Emitter-Base Breakdown V(BR)EBO 6 8 V IE=100µA D re Voltage A 50 mbient t 1.0 em D=0.2 ower perat Collector Cut-Off Current I ure ermal R CBO 50 nA VCB=50V P h D=0.1 x D=0.05 1 µ T A VCB=50V, Tamb=100°C a Single Pulse M 0 -40 -20 0 20 40 60 80 100 120 140 160 180 200 0.0001 0.001 0.01 0.1 1 10 100 Collector Cut-Off Current ICER 50 nA VCB=50V T -Temperature (°C) R ≤1KΩ 1 µA V Pulse Width (seconds) CB=50V, Tamb=100°C Emitter Cut-Off Current IEBO 10 nA VEB=6V
Derating curve Maximum transient thermal impedance
Collector-Emitter Saturation VCE(sat) 25 50 mV IC=0.5A, IB=10mA* Voltage 50 80 mV IC=1A, IB=10mA* 100 200 mV IC=2A, IB=100mA* 180 220 mV IC=5A, IB=100mA* Base-Emitter VBE(sat) 880 950 mV IC=5A, IB=100mA* Saturation Voltage 3-307 3-306
