AOZ5311UQI. High-Current, High-Performance. DrMOS Power Module. General Description. Features. Applications
Modelllinie für dieses Datenblatt
Textversion des Dokuments

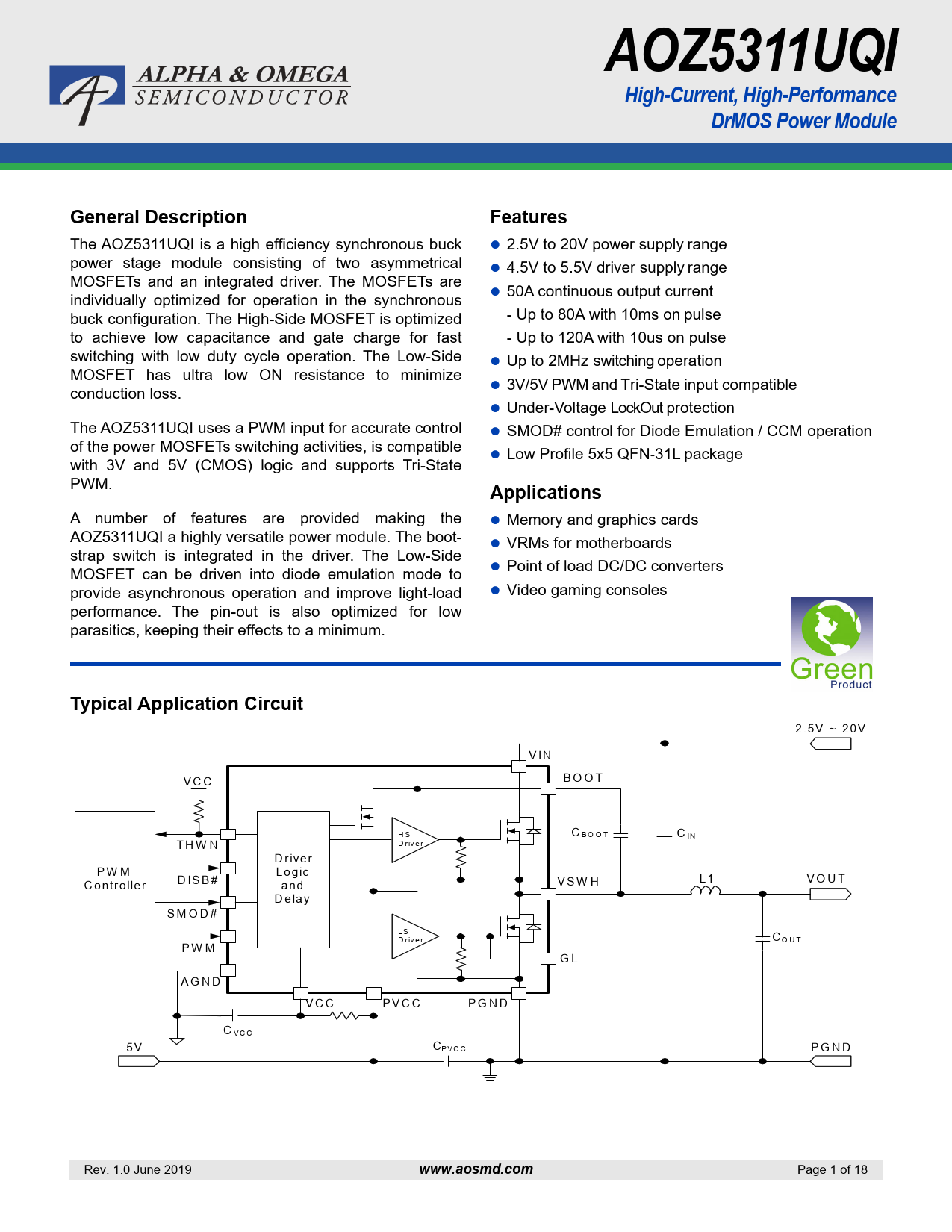

AOZ5311UQI High-Current, High-Performance DrMOS Power Module General Description Features
The AOZ5311UQI is a high efficiency synchronous buck 2.5V to 20V power supply range power stage module consisting of two asymmetrical 4.5V to 5.5V driver supply range MOSFETs and an integrated driver. The MOSFETs are individually optimized for operation in the synchronous 50A continuous output current buck configuration. The High-Side MOSFET is optimized - Up to 80A with 10ms on pulse to achieve low capacitance and gate charge for fast - Up to 120A with 10us on pulse switching with low duty cycle operation. The Low-Side Up to 2MHz switching operation MOSFET has ultra low ON resistance to minimize conduction loss. 3V/5V PWM and Tri-State input compatible Under-Voltage LockOut protection The AOZ5311UQI uses a PWM input for accurate control SMOD# control for Diode Emulation / CCM operation of the power MOSFETs switching activities, is compatible with 3V and 5V (CMOS) logic and supports Tri-State Low Profile 5x5 QFN-31L package PWM.
Applications
A number of features are provided making the Memory and graphics cards AOZ5311UQI a highly versatile power module. The boot- VRMs for motherboards strap switch is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to Point of load DC/DC converters provide asynchronous operation and improve light-load Video gaming consoles performance. The pin-out is also optimized for low parasitics, keeping their effects to a minimum.
Typical Application Circuit
2.5V ~ 20V V IN B O O T V C C H S C BO O T C IN D riv e r T H W N D river P W M Logic D IS B # V S W H L1 V O U T C ontroller and D elay S M O D # LS D riv e r CO UT P W M G L A G N D V C C P V C C P G N D C VCC 5V CPVCC P G N D Rev. 1.0 June 2019
www.aosmd.com
Page 1 of 18
