Datasheet TLP3475SRHA (Toshiba)

HerstellerToshiba
BeschreibungPhotocouplers Photorelay
Seiten / Seite11 / 1 — TLP3475SRHA. Photocouplers. Photorelay. TLP3475SRHA. 1. Applications. …
Dateiformat / GrößePDF / 326 Kb
DokumentenspracheEnglisch

TLP3475SRHA. Photocouplers. Photorelay. TLP3475SRHA. 1. Applications. (Note). •. ATE. (Automatic. Test. Equipment). •. Probe. Cards. •. Measuring

Datasheet TLP3475SRHA Toshiba

Modelllinie für dieses Datenblatt

Textversion des Dokuments

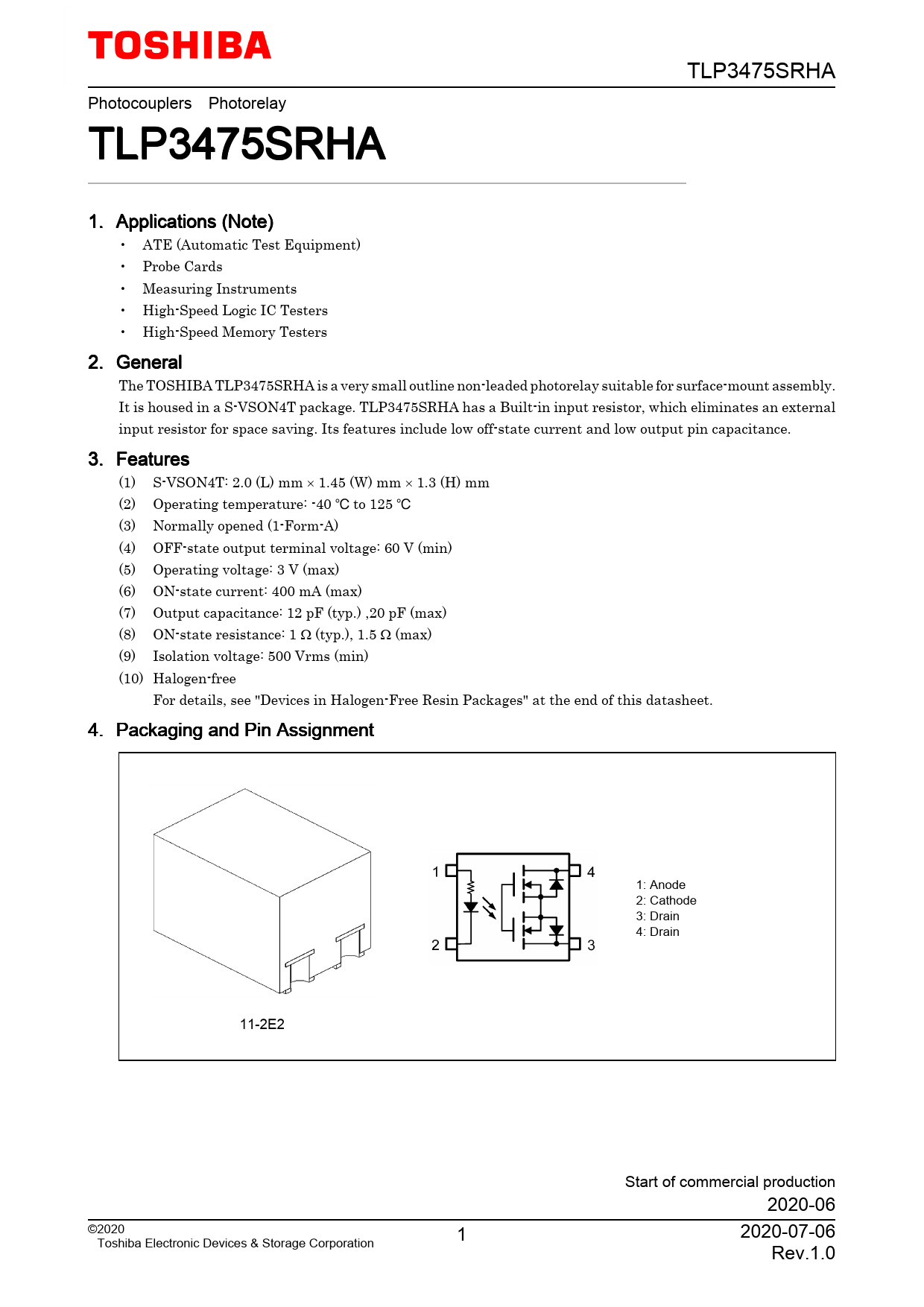

TLP3475SRHA Photocouplers Photorelay TLP3475SRHA 1. Applications (Note) • ATE (Automatic Test Equipment) • Probe Cards • Measuring Instruments • High-Speed Logic IC Testers • High-Speed Memory Testers 2. General The TOSHIBA TLP3475SRHA is a very small outline non-leaded photorelay suitable for surface-mount assembly. It is housed in a S-VSON4T package. TLP3475SRHA has a Built-in input resistor, which eliminates an external input resistor for space saving. Its features include low off-state current and low output pin capacitance. 3. Features (1) S-VSON4T: 2.0 (L) mm × 1.45 (W) mm × 1.3 (H) mm (2) Operating temperature: -40 to 125 (3) Normally opened (1-Form-A) (4) OFF-state output terminal voltage: 60 V (min) (5) Operating voltage: 3 V (max) (6) ON-state current: 400 mA (max) (7) Output capacitance: 12 pF (typ.) ,20 pF (max) (8) ON-state resistance: 1 Ω (typ.), 1.5 Ω (max) (9) Isolation voltage: 500 Vrms (min) (10) Halogen-free For details, see "Devices in Halogen-Free Resin Packages" at the end of this datasheet. 4. Packaging and Pin Assignment 1: Anode 2: Cathode 3: Drain 4: Drain 11-2E2 Start of commercial production 2020-06 ©2020 1 2020-07-06 Toshiba Electronic Devices & Storage Corporation Rev.1.0
