Datasheet TLP3407SRA (Toshiba)

HerstellerToshiba
BeschreibungPhotocouplers Photorelay
Seiten / Seite11 / 1 — TLP3407SRA. Photocouplers. Photorelay. TLP3407SRA. 1. Applications. …
Dateiformat / GrößePDF / 328 Kb
DokumentenspracheEnglisch

TLP3407SRA. Photocouplers. Photorelay. TLP3407SRA. 1. Applications. (Note). •. Probe. Cards. •. ATE. (Automatic. Test. Equipment). •. Measuring

Datasheet TLP3407SRA Toshiba

Modelllinie für dieses Datenblatt

Textversion des Dokuments

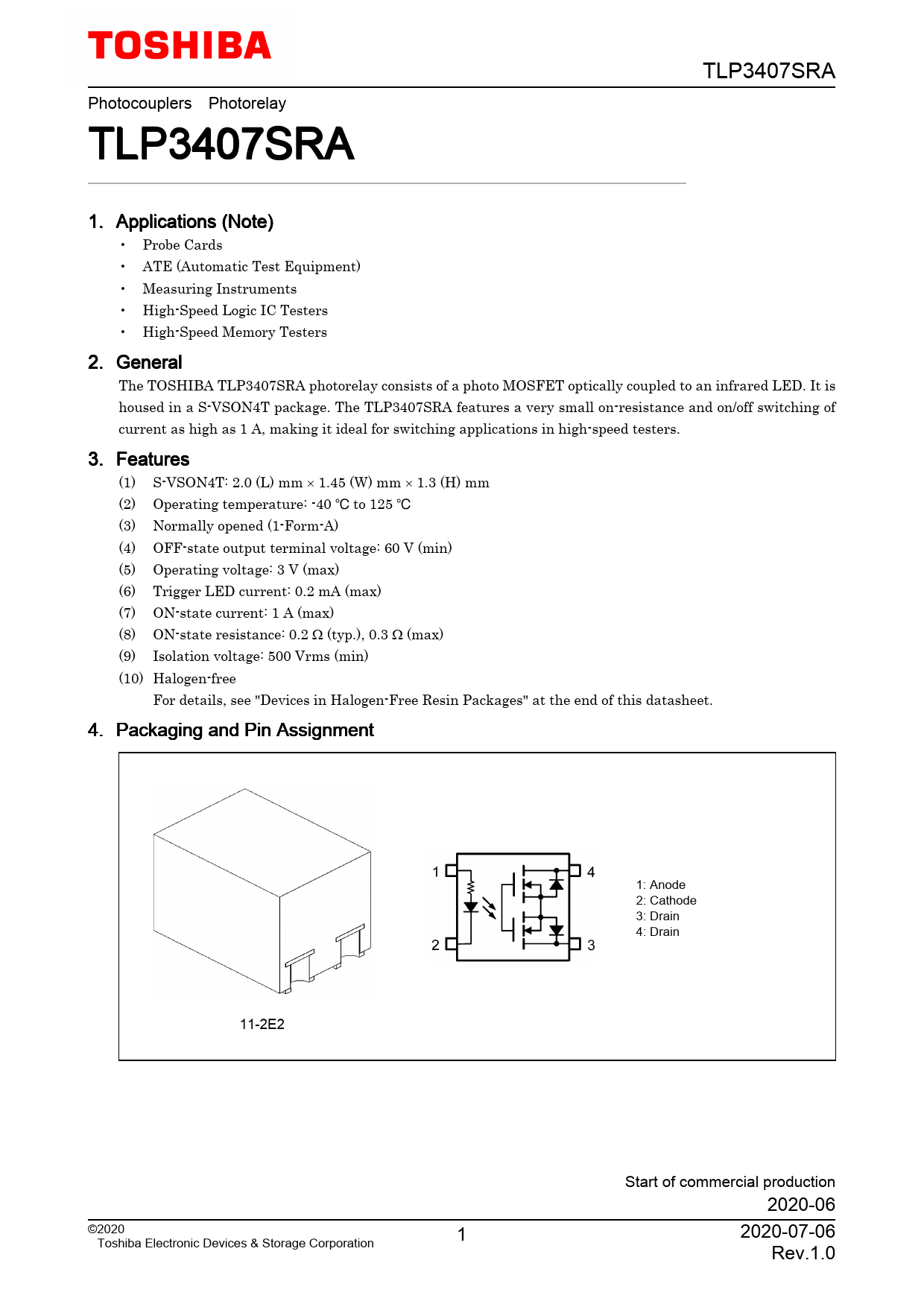

TLP3407SRA Photocouplers Photorelay TLP3407SRA 1. Applications (Note) • Probe Cards • ATE (Automatic Test Equipment) • Measuring Instruments • High-Speed Logic IC Testers • High-Speed Memory Testers 2. General The TOSHIBA TLP3407SRA photorelay consists of a photo MOSFET optically coupled to an infrared LED. It is housed in a S-VSON4T package. The TLP3407SRA features a very small on-resistance and on/off switching of current as high as 1 A, making it ideal for switching applications in high-speed testers. 3. Features (1) S-VSON4T: 2.0 (L) mm × 1.45 (W) mm × 1.3 (H) mm (2) Operating temperature: -40 to 125 (3) Normally opened (1-Form-A) (4) OFF-state output terminal voltage: 60 V (min) (5) Operating voltage: 3 V (max) (6) Trigger LED current: 0.2 mA (max) (7) ON-state current: 1 A (max) (8) ON-state resistance: 0.2 Ω (typ.), 0.3 Ω (max) (9) Isolation voltage: 500 Vrms (min) (10) Halogen-free For details, see "Devices in Halogen-Free Resin Packages" at the end of this datasheet. 4. Packaging and Pin Assignment 1: Anode 2: Cathode 3: Drain 4: Drain 11-2E2 Start of commercial production 2020-06 ©2020 1 2020-07-06 Toshiba Electronic Devices & Storage Corporation Rev.1.0
