Datasheet AONS32310 (Alpha & Omega) - 2

HerstellerAlpha & Omega
Beschreibung30V N-Channel MOSFET
Seiten / Seite6 / 2 — AONS32310. Electrical Characteristics (TJ=25°C unless otherwise noted). …
Dateiformat / GrößePDF / 332 Kb
DokumentenspracheEnglisch

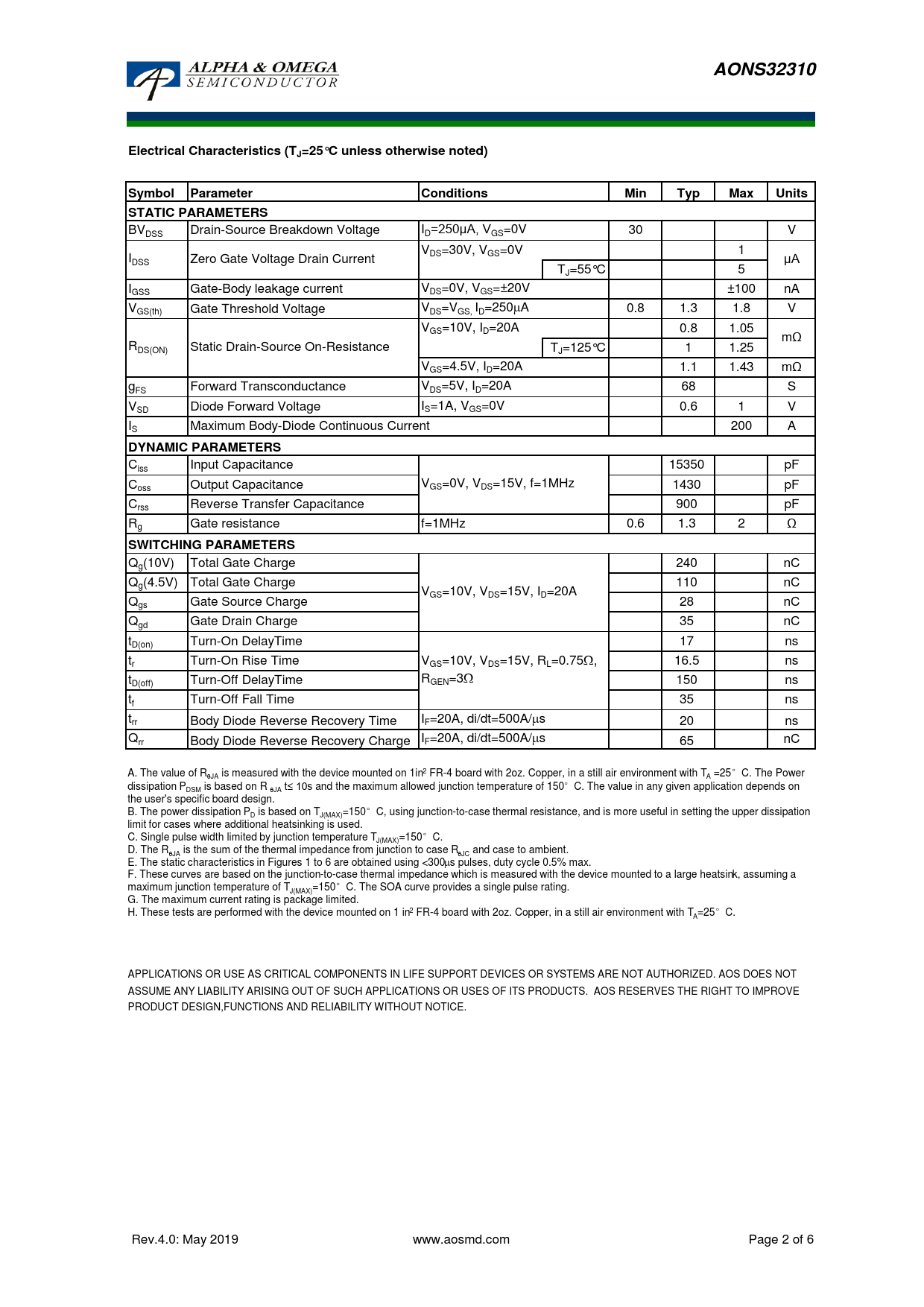

AONS32310. Electrical Characteristics (TJ=25°C unless otherwise noted). Symbol. Parameter. Conditions. Min. Typ. Max. Units

AONS32310 Electrical Characteristics (TJ=25°C unless otherwise noted) Symbol Parameter Conditions Min Typ Max Units

Modelllinie für dieses Datenblatt

Textversion des Dokuments

AONS32310 Electrical Characteristics (TJ=25°C unless otherwise noted) Symbol Parameter Conditions Min Typ Max Units STATIC PARAMETERS
BV =250μA, V DSS Drain-Source Breakdown Voltage ID GS=0V 30 V VDS=30V, VGS=0V 1 I Zero Gate Voltage Drain Current μA DSS TJ=55°C 5 I Gate-Body leakage current V GSS DS=0V, VGS=±20V ±100 nA VGS(th) Gate Threshold Voltage VDS=VGS, ID=250mA 0.8 1.3 1.8 V VGS=10V, ID=20A 0.8 1.05 mΩ RDS(ON) Static Drain-Source On-Resistance TJ=125°C 1 1.25 VGS=4.5V, ID=20A 1.1 1.43 mΩ g V FS Forward Transconductance DS=5V, ID=20A 68 S V I SD Diode Forward Voltage S=1A, VGS=0V 0.6 1 V IS Maximum Body-Diode Continuous Current 200 A
DYNAMIC PARAMETERS
Ciss Input Capacitance 15350 pF C Output Capacitance V oss GS=0V, VDS=15V, f=1MHz 1430 pF Crss Reverse Transfer Capacitance 900 pF Rg Gate resistance f=1MHz 0.6 1.3 2 Ω
SWITCHING PARAMETERS
Qg(10V) Total Gate Charge 240 nC Qg(4.5V) Total Gate Charge 110 nC VGS=10V, VDS=15V, ID=20A Qgs Gate Source Charge 28 nC Qgd Gate Drain Charge 35 nC tD(on) Turn-On DelayTime 17 ns tr Turn-On Rise Time VGS=10V, VDS=15V, RL=0.75W, 16.5 ns t R D(off) Turn-Off DelayTime GEN=3W 150 ns tf Turn-Off Fall Time 35 ns trr Body Diode Reverse Recovery Time IF=20A, di/dt=500A/ms 20 ns Qrr Body Diode Reverse Recovery Charge IF=20A, di/dt=500A/ms 65 nC A. The value of Rq is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment with T =25°C. The Power JA A dissipation P is based on R t≤ 10s and the maximum allowed junction temperature of 150°C. The value in any given application depends on DSM qJA the user's specific board design. B. The power dissipation P is based on T =150°C, using junction-to-case thermal resistance, and is more useful in setting the upper dissipation D J(MAX) limit for cases where additional heatsinking is used. C. Single pulse width limited by junction temperature T =150°C. J(MAX) D. The Rq is the sum of the thermal impedance from junction to case R and case to ambient. JA qJC E. The static characteristics in Figures 1 to 6 are obtained using <300ms pulses, duty cycle 0.5% max. F. These curves are based on the junction-to-case thermal impedance which is measured with the device mounted to a large heatsink, assuming a maximum junction temperature of T =150°C. The SOA curve provides a single pulse rating. J(MAX) G. The maximum current rating is package limited. H. These tests are performed with the device mounted on 1 in2 FR-4 board with 2oz. Copper, in a still air environment with T =25°C. A APPLICATIONS OR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING OUT OF SUCH APPLICATIONS OR USES OF ITS PRODUCTS. AOS RESERVES THE RIGHT TO IMPROVE PRODUCT DESIGN,FUNCTIONS AND RELIABILITY WITHOUT NOTICE. Rev.4.0: May 2019 www.aosmd.com Page 2 of 6
