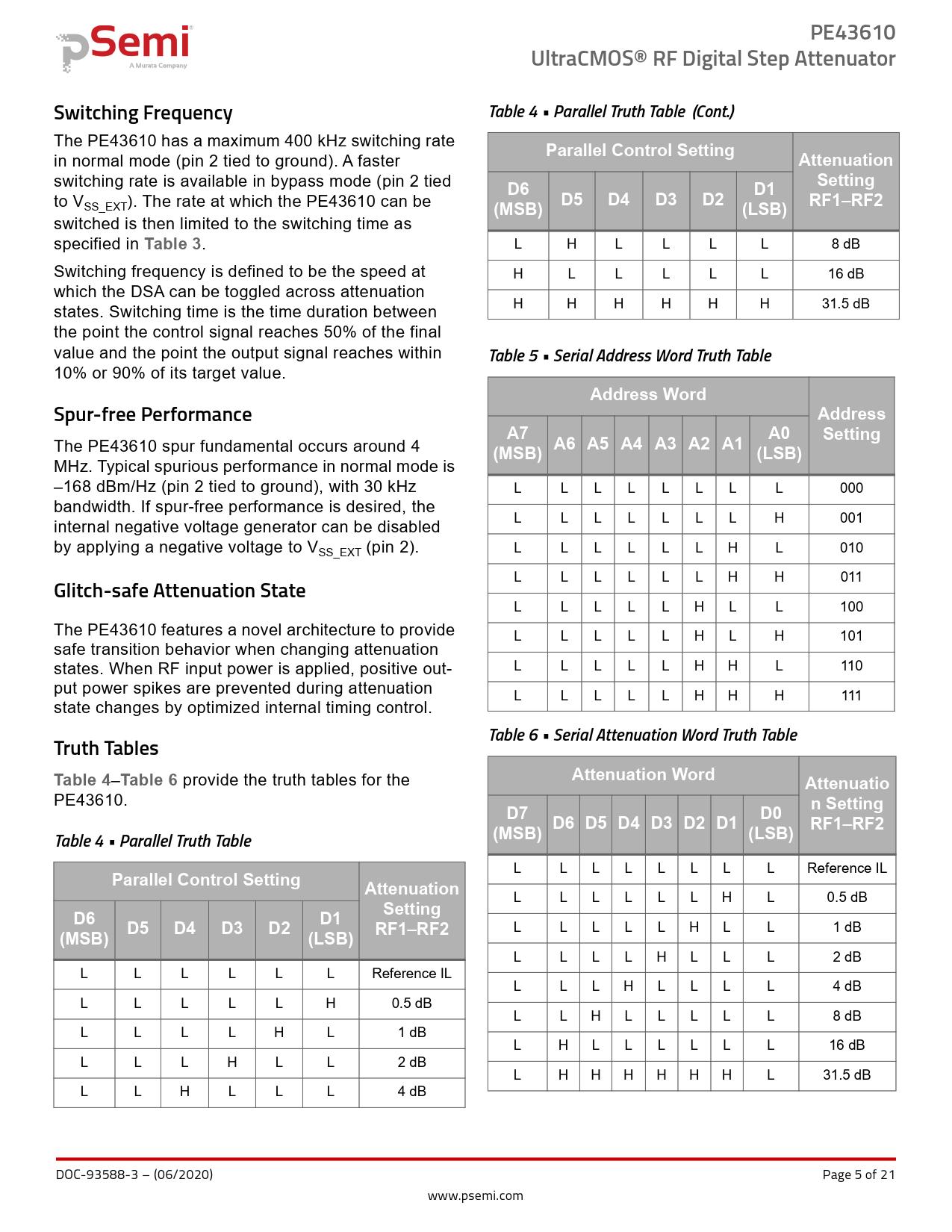

PE43610. UltraCMOS® RF Digital Step Attenuator. Switching Frequency. Table 4 • Paral el Truth Table (Cont.)

PE43610 UltraCMOS® RF Digital Step Attenuator Switching Frequency Table 4 • Paral el Truth Table (Cont.)

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 4 link to page 5
PE43610 UltraCMOS® RF Digital Step Attenuator Switching Frequency Table 4 • Paral el Truth Table (Cont.)
The PE43610 has a maximum 400 kHz switching rate in normal mode (pin 2 tied to ground). A faster
Paral el Control Setting Attenuation
switching rate is available in bypass mode (pin 2 tied
Setting D6
to VSS_EXT). The rate at which the PE43610 can be
RF1–RF2 (MSB) D5 D4 D3 D2 D1 (LSB)
switched is then limited to the switching time as specified in
Table 3
. L H L L L L 8 dB Switching frequency is defined to be the speed at H L L L L L 16 dB which the DSA can be toggled across attenuation states. Switching time is the time duration between H H H H H H 31.5 dB the point the control signal reaches 50% of the final value and the point the output signal reaches within
Table 5 • Serial Address Word Truth Table
10% or 90% of its target value.
Address Word Spur-free Performance Address A7 Setting
The PE43610 spur fundamental occurs around 4
(MSB) A6 A5 A4 A3 A2 A1 A0 (LSB)
MHz. Typical spurious performance in normal mode is –168 dBm/Hz (pin 2 tied to ground), with 30 kHz L L L L L L L L 000 bandwidth. If spur-free performance is desired, the internal negative voltage generator can be disabled L L L L L L L H 001 by applying a negative voltage to VSS_EXT (pin 2). L L L L L L H L 010
Glitch-safe Attenuation State
L L L L L L H H 011 L L L L L H L L 100 The PE43610 features a novel architecture to provide L L L L L H L H 101 safe transition behavior when changing attenuation states. When RF input power is applied, positive out- L L L L L H H L 110 put power spikes are prevented during attenuation L L L L L H H H 111 state changes by optimized internal timing control.
Truth Tables Table 6 • Serial Attenuation Word Truth Table Table 4

Table 6
provide the truth tables for the
Attenuation Word Attenuatio
PE43610.
