LT1016

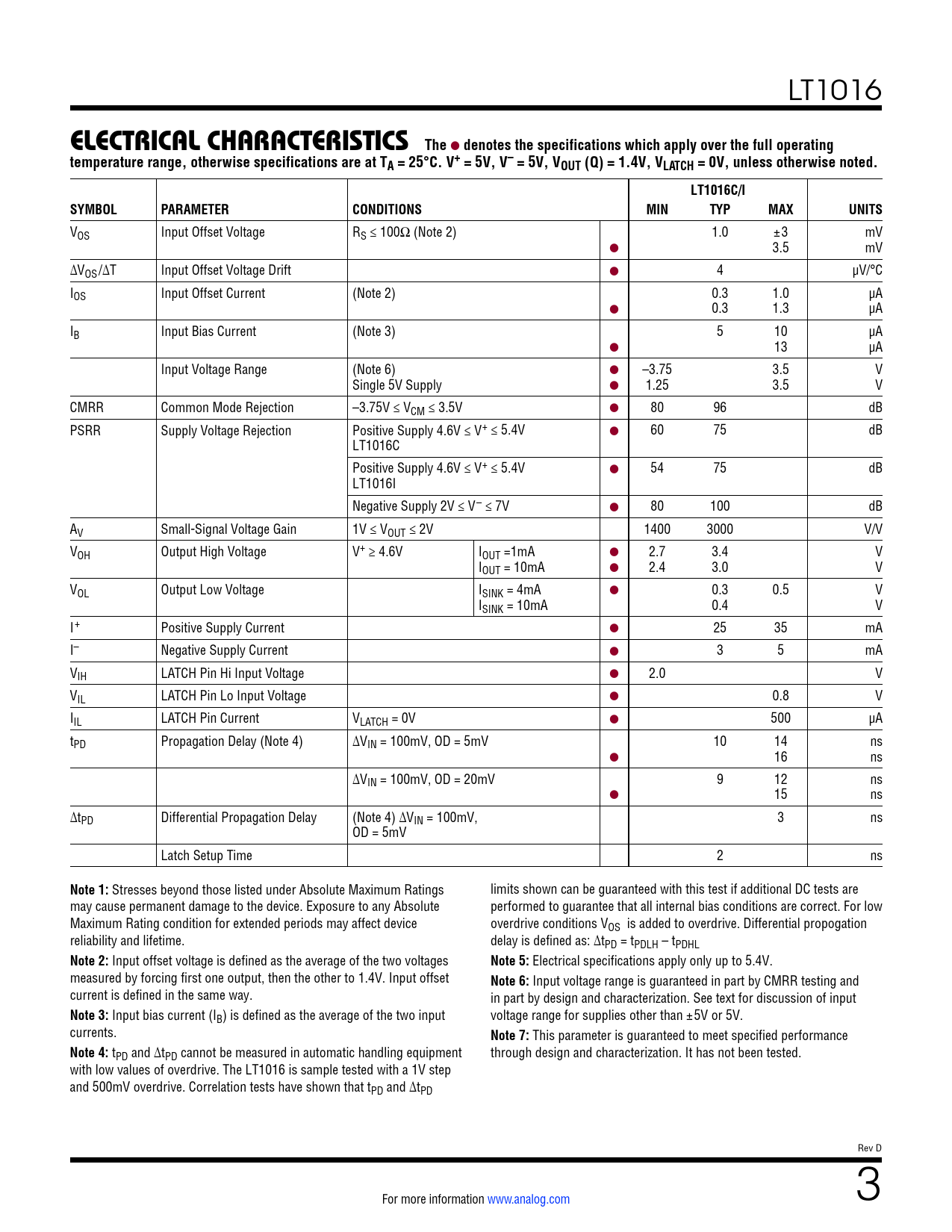

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 5V, V– = 5V, VOUT (Q) = 1.4V, VLATCH = 0V, unless otherwise noted. LT1016C/I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage RS ≤ 100Ω (Note 2) 1.0 ±3 mV ● 3.5 mV ∆VOS/∆T Input Offset Voltage Drift ● 4 µV/°C IOS Input Offset Current (Note 2) 0.3 1.0 µA ● 0.3 1.3 µA IB Input Bias Current (Note 3) 5 10 µA ● 13 µA Input Voltage Range (Note 6) ● –3.75 3.5 V Single 5V Supply ● 1.25 3.5 V CMRR Common Mode Rejection –3.75V ≤ VCM ≤ 3.5V ● 80 96 dB PSRR Supply Voltage Rejection Positive Supply 4.6V ≤ V+ ≤ 5.4V ● 60 75 dB LT1016C Positive Supply 4.6V ≤ V+ ≤ 5.4V ● 54 75 dB LT1016I Negative Supply 2V ≤ V– ≤ 7V ● 80 100 dB AV Small-Signal Voltage Gain 1V ≤ VOUT ≤ 2V 1400 3000 V/V VOH Output High Voltage V+ ≥ 4.6V IOUT =1mA ● 2.7 3.4 V IOUT = 10mA ● 2.4 3.0 V VOL Output Low Voltage ISINK = 4mA ● 0.3 0.5 V ISINK = 10mA 0.4 V I+ Positive Supply Current ● 25 35 mA I– Negative Supply Current ● 3 5 mA VIH LATCH Pin Hi Input Voltage ● 2.0 V VIL LATCH Pin Lo Input Voltage ● 0.8 V IIL LATCH Pin Current VLATCH = 0V ● 500 µA tPD Propagation Delay (Note 4) ∆VIN = 100mV, OD = 5mV 10 14 ns ● 16 ns ∆VIN = 100mV, OD = 20mV 9 12 ns ● 15 ns ∆tPD Differential Propagation Delay (Note 4) ∆VIN = 100mV, 3 ns OD = 5mV Latch Setup Time 2 ns
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings limits shown can be guaranteed with this test if additional DC tests are may cause permanent damage to the device. Exposure to any Absolute performed to guarantee that all internal bias conditions are correct. For low Maximum Rating condition for extended periods may affect device overdrive conditions VOS is added to overdrive. Differential propogation reliability and lifetime. delay is defined as: ∆tPD = tPDLH – tPDHL
Note 2:
Input offset voltage is defined as the average of the two voltages
Note 5:
Electrical specifications apply only up to 5.4V. measured by forcing first one output, then the other to 1.4V. Input offset
Note 6:
Input voltage range is guaranteed in part by CMRR testing and current is defined in the same way. in part by design and characterization. See text for discussion of input
Note 3:
Input bias current (IB) is defined as the average of the two input voltage range for supplies other than ±5V or 5V. currents.
Note 7:
This parameter is guaranteed to meet specified performance
Note 4:
tPD and ∆tPD cannot be measured in automatic handling equipment through design and characterization. It has not been tested. with low values of overdrive. The LT1016 is sample tested with a 1V step and 500mV overdrive. Correlation tests have shown that tPD and ∆tPD Rev D For more information www.analog.com 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Appendix A Package Description Revision History Applications Information Related Parts
