Datasheet RH119 (Analog Devices)

HerstellerAnalog Devices
BeschreibungHigh Performance Dual Comparator
Seiten / Seite4 / 1 — DESCRIPTION. ABSOLUTE MAXIMUM RATINGS. BURN-IN CIRCUIT. PACKAGE/ORDER …
RevisionD
Dateiformat / GrößePDF / 672 Kb
DokumentenspracheEnglisch

DESCRIPTION. ABSOLUTE MAXIMUM RATINGS. BURN-IN CIRCUIT. PACKAGE/ORDER INFORMATION. Note: Obsolete Packages-For Reference Only

Datasheet RH119 Analog Devices, Revision: D

Modelllinie für dieses Datenblatt

Textversion des Dokuments

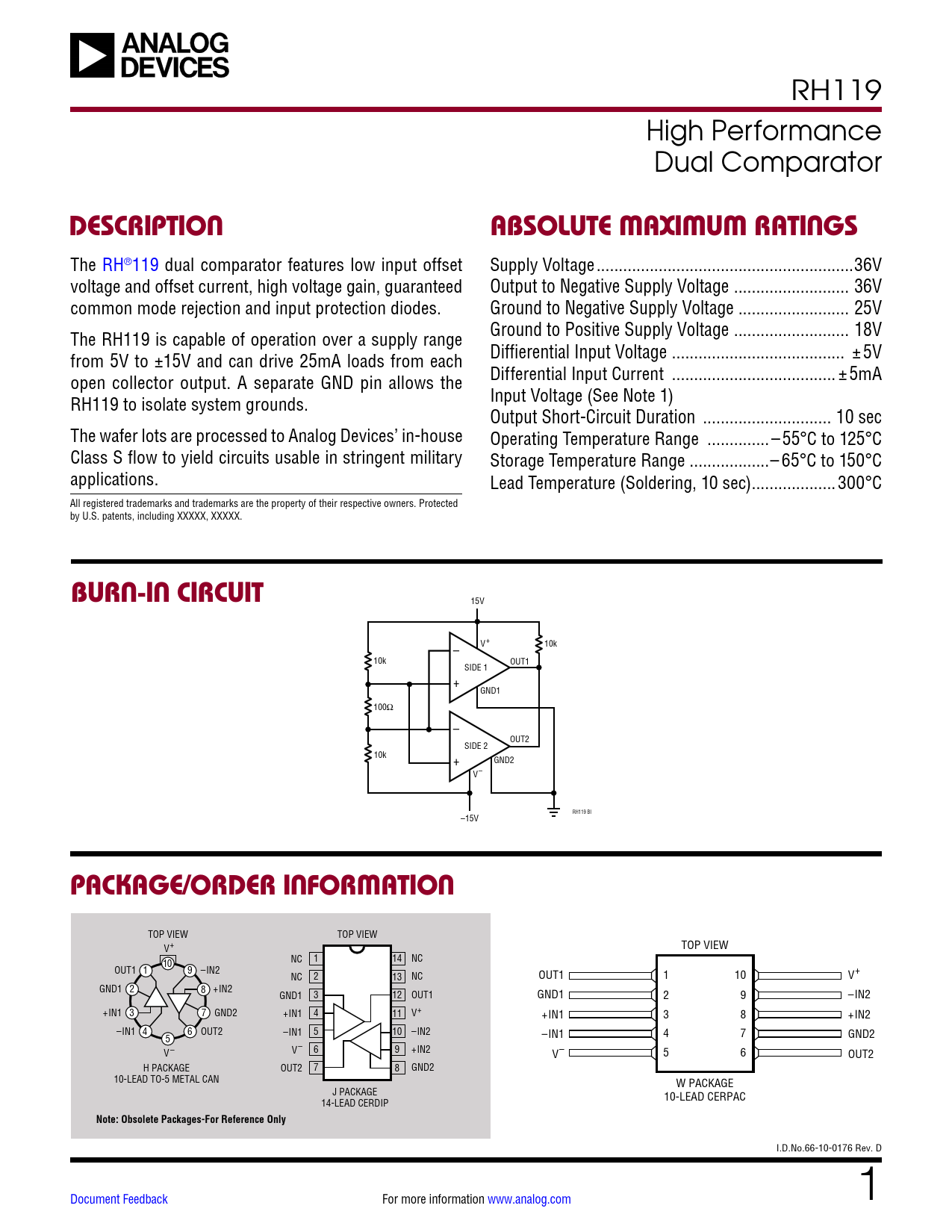

RH119 High Performance Dual Comparator
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH®119 dual comparator features low input offset Supply Voltage ..36V voltage and offset current, high voltage gain, guaranteed Output to Negative Supply Voltage .. 36V common mode rejection and input protection diodes. Ground to Negative Supply Voltage ... 25V The RH119 is capable of operation over a supply range Ground to Positive Supply Voltage .. 18V from 5V to ±15V and can drive 25mA loads from each Diffierential Input Voltage ... ±5V open collector output. A separate GND pin allows the Differential Input Current ... ±5mA RH119 to isolate system grounds. Input Voltage (See Note 1) Output Short-Circuit Duration ... 10 sec The wafer lots are processed to Analog Devices’ in-house Operating Temperature Range ..–55°C to 125°C Class S flow to yield circuits usable in stringent military Storage Temperature Range ..– 65°C to 150°C applications. Lead Temperature (Soldering, 10 sec) ...300°C All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. patents, including XXXXX, XXXXX.
BURN-IN CIRCUIT
15V – V+ 10k 10k OUT1 SIDE 1 + GND1 100Ω – OUT2 SIDE 2 10k + GND2 V– RH119 BI –15V
PACKAGE/ORDER INFORMATION
TOP VIEW TOP VIEW V+ TOP VIEW 10 NC 1 14 NC OUT1 1 9 –IN2 NC 2 13 NC OUT1 1 10 V+ GND1 2 8 +IN2 GND1 3 12 OUT1 GND1 2 9 –IN2 +IN1 3 7 GND2 +IN1 4 11 V+ +IN1 3 8 +IN2 –IN1 4 6 OUT2 –IN1 5 10 –IN2 5 –IN1 4 7 GND2 V– V– 6 9 +IN2 V– 5 6 OUT2 H PACKAGE OUT2 7 8 GND2 10-LEAD TO-5 METAL CAN W PACKAGE J PACKAGE 10-LEAD CERPAC 14-LEAD CERDIP
Note: Obsolete Packages-For Reference Only
I.D.No.66-10-0176 Rev. D Document Feedback For more information www.analog.com 1 Document Outline Description Burn-In Circuit Package/Order Information Absolute Maximum Ratings Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History
