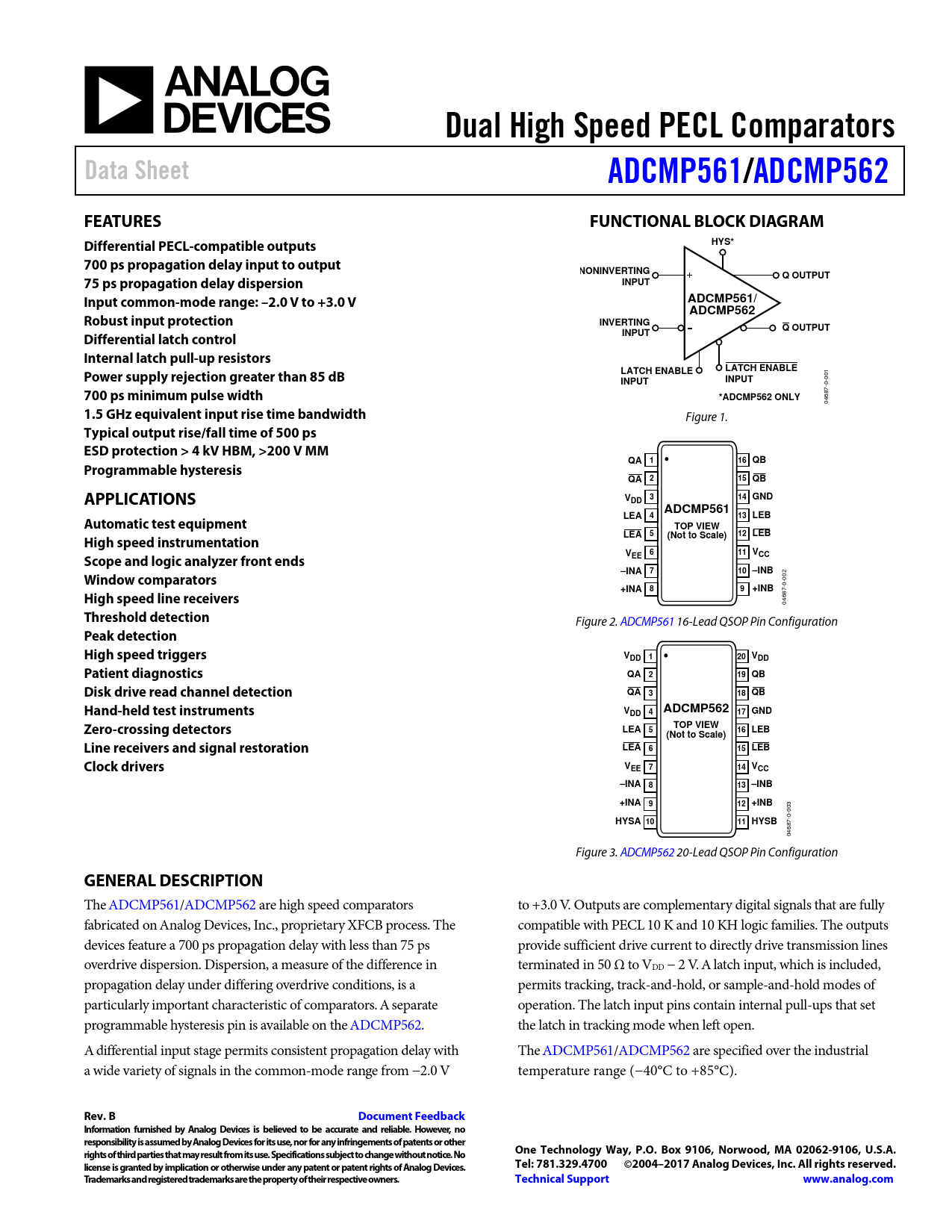

Dual High Speed PECL Comparators Data Sheet ADCMP561 /ADCMP562 FEATURES FUNCTIONAL BLOCK DIAGRAM Differential PECL-compatible outputs HYS* 700 ps propagation delay input to output NONINVERTING 75 ps propagation delay dispersion Q OUTPUT INPUT Input common-mode range: –2.0 V to +3.0 V ADCMP561/ ADCMP562 Robust input protection INVERTING Q OUTPUT Differential latch control INPUT Internal latch pull-up resistors Power supply rejection greater than 85 dB LATCH ENABLE LATCH ENABLE INPUT INPUT 700 ps minimum pulse width *ADCMP562 ONLY
04687-0-001
1.5 GHz equivalent input rise time bandwidth
Figure 1.
Typical output rise/fall time of 500 ps ESD protection > 4 kV HBM, >200 V MM QA 1 16 QB Programmable hysteresis QA 2 15 QB APPLICATIONS V 3 14 GND DD ADCMP561 Automatic test equipment LEA 4 13 LEB TOP VIEW High speed instrumentation LEA 5 (Not to Scale) 12 LEB Scope and logic analyzer front ends V 6 11 V EE CC Window comparators –INA 7 10 –INB +INB High speed line receivers +INA 8 9
04687-0-002
Threshold detection
Figure 2. ADCMP561 16-Lead QSOP Pin Configuration
Peak detection High speed triggers V 1 20 DD VDD Patient diagnostics QA 2 19 QB Disk drive read channel detection QA 3 18 QB Hand-held test instruments V 4 ADCMP562 17 DD GND Zero-crossing detectors TOP VIEW LEA 5 16 LEB (Not to Scale) Line receivers and signal restoration LEA 6 15 LEB Clock drivers V 7 14 EE VCC –INA 8 13 –INB +INA 9 12 +INB HYSA 10 11 HYSB
04687-0-003 Figure 3. ADCMP562 20-Lead QSOP Pin Configuration
GENERAL DESCRIPTION
The ADCMP561/ADCMP562 are high speed comparators to +3.0 V. Outputs are complementary digital signals that are fully fabricated on Analog Devices, Inc., proprietary XFCB process. The compatible with PECL 10 K and 10 KH logic families. The outputs devices feature a 700 ps propagation delay with less than 75 ps provide sufficient drive current to directly drive transmission lines overdrive dispersion. Dispersion, a measure of the difference in terminated in 50 Ω to VDD − 2 V. A latch input, which is included, propagation delay under differing overdrive conditions, is a permits tracking, track-and-hold, or sample-and-hold modes of particularly important characteristic of comparators. A separate operation. The latch input pins contain internal pul -ups that set programmable hysteresis pin is available on the ADCMP562. the latch in tracking mode when left open. A differential input stage permits consistent propagation delay with The ADCMP561/ADCMP562 are specified over the industrial a wide variety of signals in the common-mode range from −2.0 V temperature range (−40°C to +85°C).
