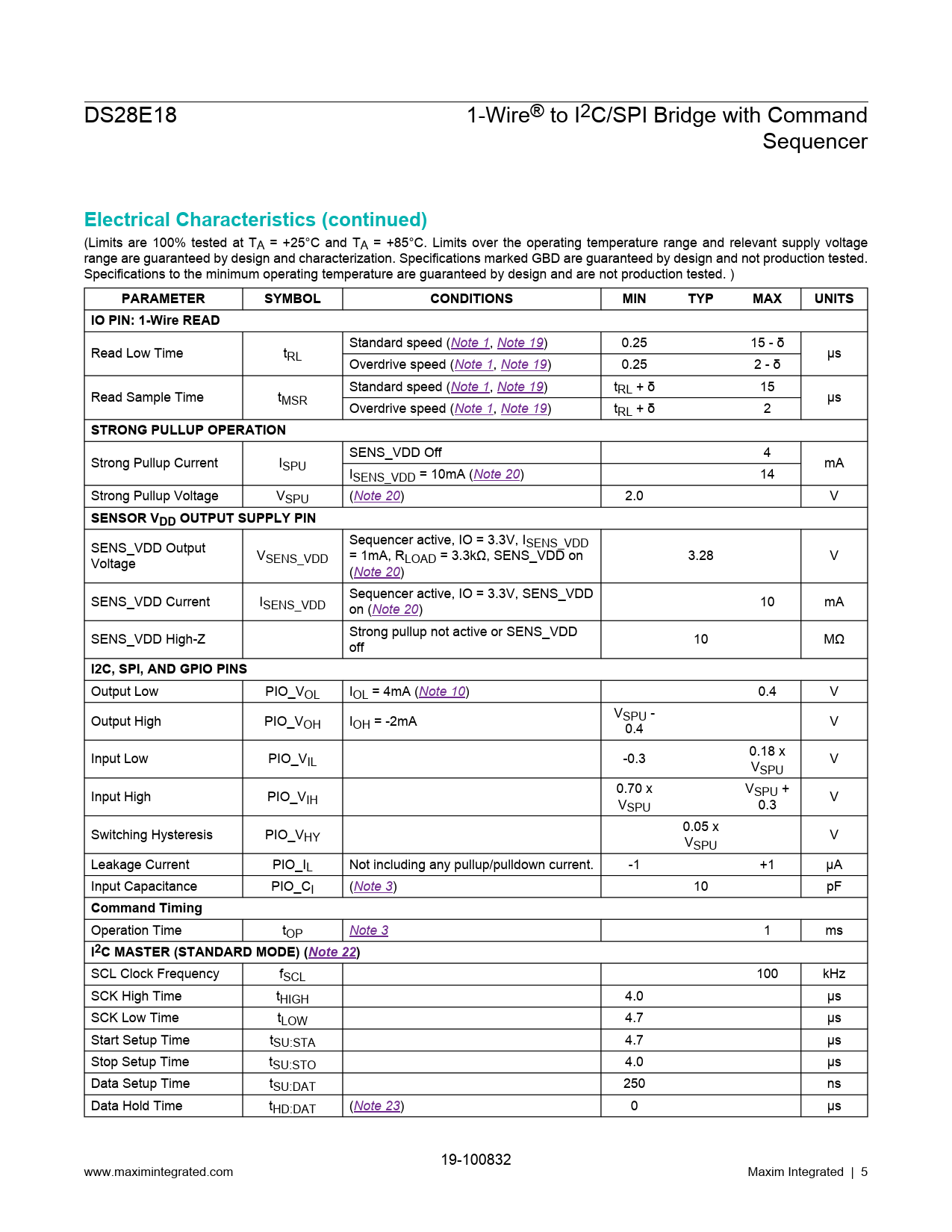

Electrical Characteristics (continued). PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. IO PIN: 1-Wire READ. STRONG PULLUP OPERATION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 7 link to page 8 link to page 7 link to page 8 link to page 7 link to page 8 link to page 7 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 7 link to page 7 link to page 7 link to page 8 link to page 8 DS28E18 1-Wire® to I2C/SPI Bridge with Command Sequencer
Electrical Characteristics (continued)
(Limits are 100% tested at TA = +25°C and TA = +85°C. Limits over the operating temperature range and relevant supply voltage range are guaranteed by design and characterization. Specifications marked GBD are guaranteed by design and not production tested. Specifications to the minimum operating temperature are guaranteed by design and are not production tested. )
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS IO PIN: 1-Wire READ
Standard speed (Note 1, Note 19) 0.25 15 - δ Read Low Time tRL μs Overdrive speed (Note 1, Note 19) 0.25 2 - δ Standard speed (Note 1, Note 19) tRL + δ 15 Read Sample Time tMSR μs Overdrive speed (Note 1, Note 19) tRL + δ 2
STRONG PULLUP OPERATION
SENS_VDD Off 4 Strong Pullup Current ISPU mA ISENS_VDD = 10mA (Note 20) 14 Strong Pullup Voltage VSPU (Note 20) 2.0 V
SENSOR VDD OUTPUT SUPPLY PIN
Sequencer active, IO = 3.3V, I SENS_VDD Output SENS_VDD V = 1mA, R 3.28 V Voltage SENS_VDD LOAD = 3.3kΩ, SENS_VDD on (Note 20) Sequencer active, IO = 3.3V, SENS_VDD SENS_VDD Current ISENS_VDD 10 mA on (Note 20) Strong pullup not active or SENS_VDD SENS_VDD High-Z 10 MΩ off
I2C, SPI, AND GPIO PINS
Output Low PIO_VOL IOL = 4mA (Note 10) 0.4 V V Output High PIO_V SPU - OH IOH = -2mA V 0.4 0.18 x Input Low PIO_VIL -0.3 V VSPU 0.70 x V Input High PIO_V SPU + IH V VSPU 0.3 0.05 x Switching Hysteresis PIO_VHY V VSPU Leakage Current PIO_IL Not including any pullup/pulldown current. -1 +1 μA Input Capacitance PIO_CI (Note 3) 10 pF
Command Timing
Operation Time tOP Note 3 1 ms
I2C MASTER (STANDARD MODE) (Note 22 )
SCL Clock Frequency fSCL 100 kHz SCK High Time tHIGH 4.0 μs SCK Low Time tLOW 4.7 μs Start Setup Time tSU:STA 4.7 μs Stop Setup Time tSU:STO 4.0 μs Data Setup Time tSU:DAT 250 ns Data Hold Time tHD:DAT (Note 23) 0 μs 19-100832 www.maximintegrated.com Maxim Integrated | 5 Document Outline General Description Applications Benefits and Features Simplified Application Block Diagram Absolute Maximum Ratings Package Information 8 TDFN-EP Electrical Characteristics Electrical Characteristics (continued) Typical Operating Characteristics Pin Configuration DS28E18 Pin Description Functional Diagram Block Diagram Detailed Description 64-Bit ROM ID Power-Up ROM ID Serialization 1-Wire Bus System Hardware Configuration Transaction Sequence Initialization 1-Wire ROM Function Commands Search ROM [F0h] Read ROM [33h] Match ROM [55h] Skip ROM [CCh] Resume [A5h] Overdrive-Skip ROM [3Ch] Overdrive-Match ROM [69h] 1-Wire Signaling and Timing Read/Write Time Slots Master-to-Slave Slave-to-Master Improved Network Behavior Device Function Commands Command Start (66h) Write Sequencer Command (11h) Read Sequencer Command (22h) Run Sequencer Command (33h) Device Configuration and Status Commands Write Configuration Command (55h) Read Configuration Command (6Ah) Write GPIO Configuration (83h) Read GPIO Configuration (7Ch) Device Status Command (7Ah) Sequencer Commands I2C Sequencer Interface Commands I2C Start Command I2C Stop Command I2C Write Data Command I2C Read Data Command I2C Read Data with NACK End Command SPI Sequencer Commands SPI Write/Read Byte(s) Command SPI Write/Read Bit(s) Command SS_HIGH Command SS_LOW Command Sequencer Utility Commands GPIO_CTRL Write Command GPIO_CTRL Read Command GPIO_BUF Write Command GPIO_BUF Read Command Delay Command SENS_VDD On Command SENS_VDD Off Command I2C Overview I2C Definitions Bus Idle or Not Busy START Condition STOP Condition Repeated START Condition Data Valid SPI Overview SPI Timing SPI Timing Diagram Power-Up of GPIO/I2C Pins Timeout Typical Application Circuits DS28E18 Configured as an I2C Master Typical Application Circuits (continued) DS28E18 Configured as an SPI Master Ordering Information Revision History
