Datasheet DW01A (Fortune Semiconductor) - 4

HerstellerFortune Semiconductor
BeschreibungOne Cell Lithium-ion/Polymer Battery Protection IC
Seiten / Seite14 / 4 — DW01A 5. Product Name List Package DW01A SOT-23-6 4.3000.050 Overcharge. …
Dateiformat / GrößePDF / 644 Kb
DokumentenspracheEnglisch

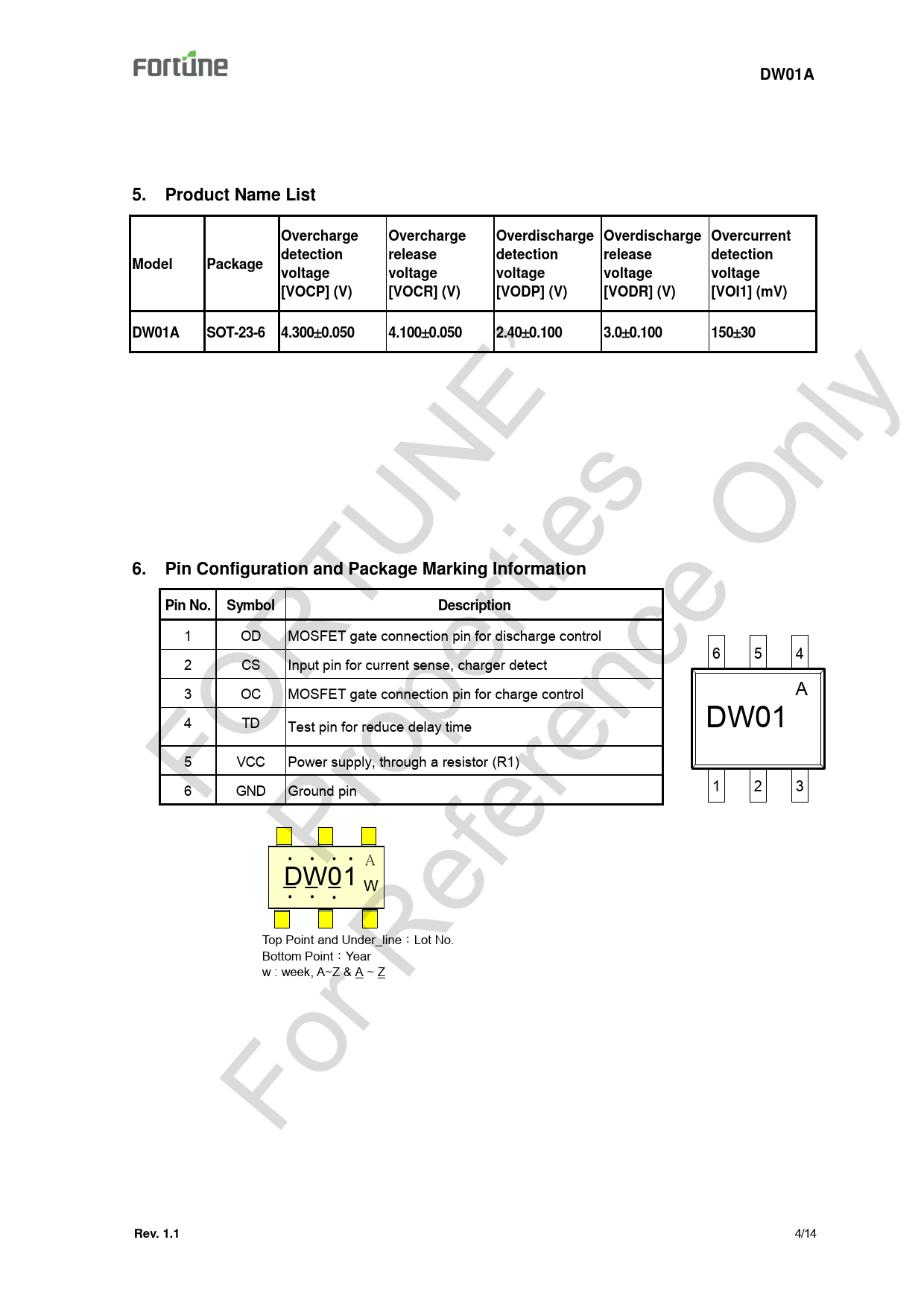

DW01A 5. Product Name List Package DW01A SOT-23-6 4.3000.050 Overcharge. release. voltage. [VOCR] (V) Overdischarge. detection

DW01A 5 Product Name List Package DW01A SOT-23-6 4.3000.050 Overcharge release voltage [VOCR] (V) Overdischarge detection

Modelllinie für dieses Datenblatt

Textversion des Dokuments

DW01A 5. Product Name List Package DW01A SOT-23-6 4.3000.050 Overcharge
release
voltage
[VOCR] (V) Overdischarge
detection
voltage
[VODP] (V) Overdischarge
release
voltage
[VODR] (V) Overcurrent
detection
voltage
[VOI1] (mV) 4.1000.050 2.400.100 3.00.100 15030 FO
Fo P R
r R ro TU
ef pe NE
er rti

en es
ce
O
nl
y Model Overcharge
detection
voltage
[VOCP] (V) 6. Pin Configuration and Package Marking Information
Pin No. Symbol Description 1 OD MOSFET gate connection pin for discharge control 2 CS Input pin for current sense, charger detect 3 OC MOSFET gate connection pin for charge control 4 TD Test pin for reduce delay time 5 VCC Power supply, through a resistor (R1) 6 GND Ground pin 6 5 DW01
1 2 4 A 3 . A
DW01 . W Top Point and Under_line:Lot No.
Bottom Point:Year
w : week, A~Z & A ~ Z Rev. 1.1 4/14
