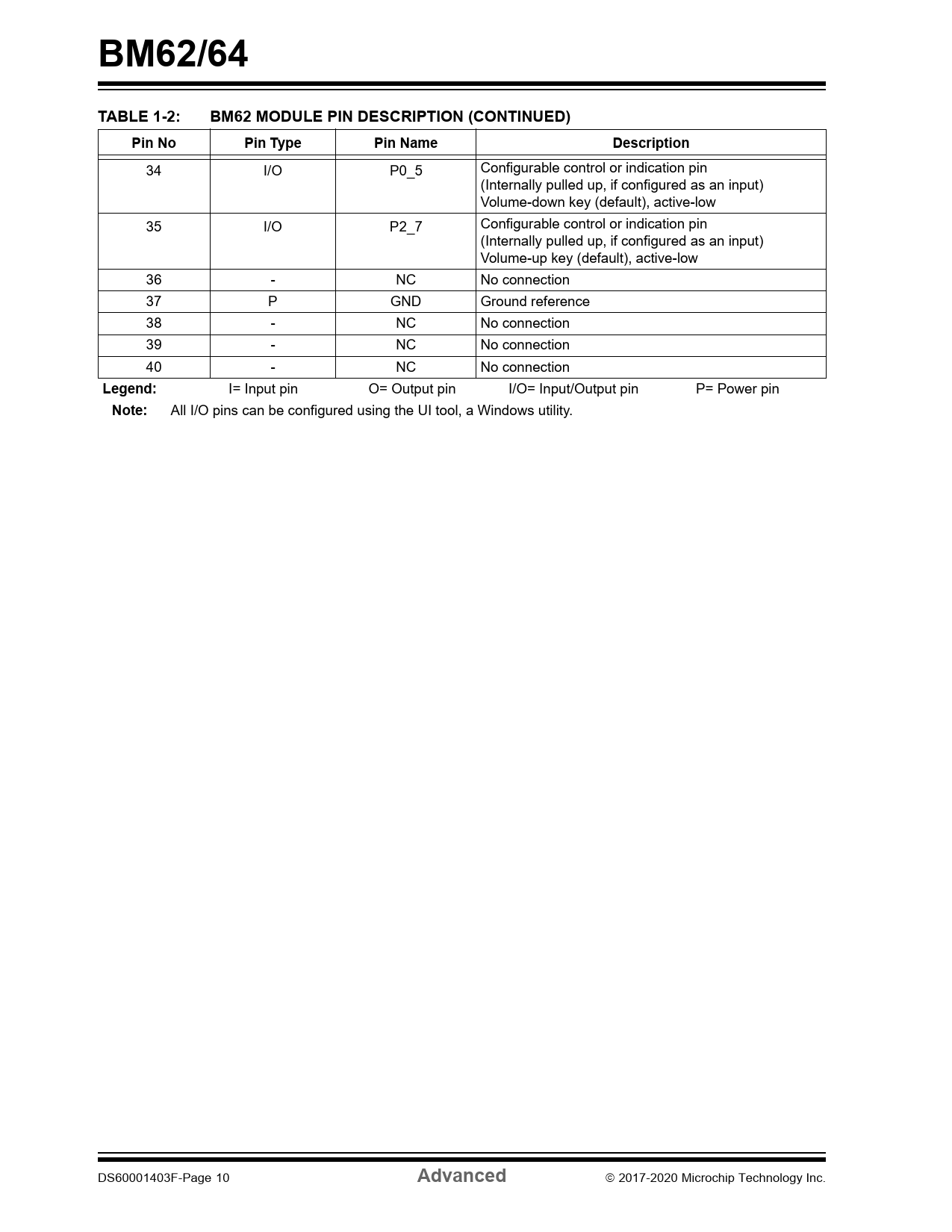

BM62/64 TABLE 1-2: BM62 MODULE PIN DESCRIPTION (CONTINUED) Pin No Pin Type Pin Name Description
34 I/O P0_5 Configurable control or indication pin (Internally pulled up, if configured as an input) Volume-down key (default), active-low 35 I/O P2_7 Configurable control or indication pin (Internally pulled up, if configured as an input) Volume-up key (default), active-low 36 - NC No connection 37 P GND Ground reference 38 - NC No connection 39 - NC No connection 40 - NC No connection
Legend:
I= Input pin O= Output pin I/O= Input/Output pin P= Power pin
Note:
All I/O pins can be configured using the UI tool, a Windows utility. DS60001403F-Page 10
