BeschreibungUltracompact, 3 A Thermoelectric Cooler (TEC) Controller
Seiten / Seite27 / 1 — Ultracompact, 3 A. Thermoelectric Cooler (TEC) Controller. Data Sheet. …
RevisionB
Dateiformat / GrößePDF / 656 Kb
DokumentenspracheEnglisch

Ultracompact, 3 A. Thermoelectric Cooler (TEC) Controller. Data Sheet. ADN8835. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADN8835 Analog Devices, Revision: B

Modelllinie für dieses Datenblatt

Textversion des Dokuments

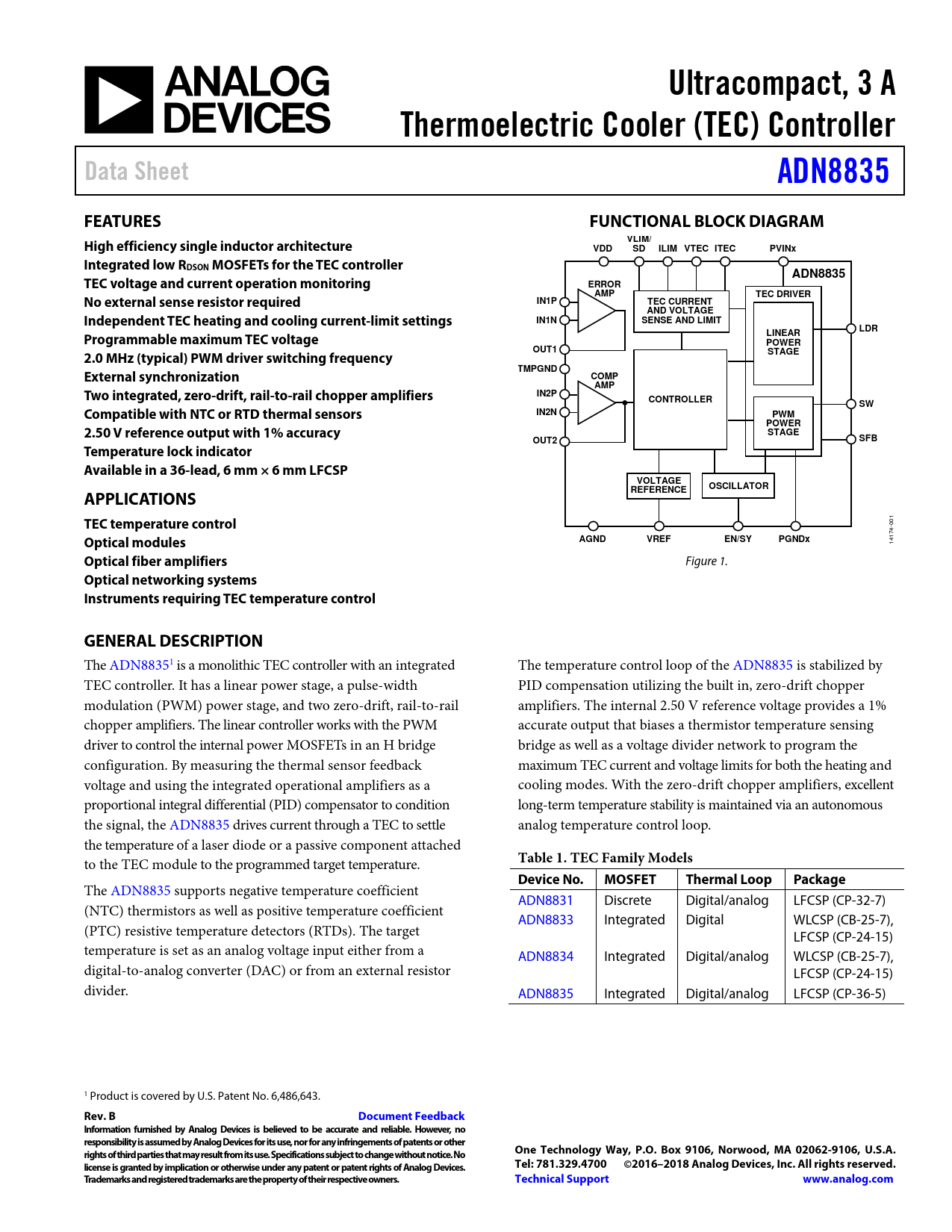

Ultracompact, 3 A Thermoelectric Cooler (TEC) Controller Data Sheet ADN8835 FEATURES FUNCTIONAL BLOCK DIAGRAM High efficiency single inductor architecture VLIM/ VDD SD ILIM VTEC ITEC PVINx Integrated low RDSON MOSFETs for the TEC controller TEC voltage and current operation monitoring ADN8835 ERROR No external sense resistor required AMP TEC DRIVER IN1P TEC CURRENT Independent TEC heating and cooling current-limit settings AND VOLTAGE IN1N SENSE AND LIMIT LDR Programmable maximum TEC voltage LINEAR POWER 2.0 MHz (typical) PWM driver switching frequency OUT1 STAGE External synchronization TMPGND COMP Two integrated, zero-drift, rail-to-rail chopper amplifiers AMP IN2P CONTROLLER Compatible with NTC or RTD thermal sensors SW IN2N PWM 2.50 V reference output with 1% accuracy POWER STAGE SFB OUT2 Temperature lock indicator Available in a 36-lead, 6 mm × 6 mm LFCSP VOLTAGE OSCILLATOR APPLICATIONS REFERENCE TEC temperature control
001
Optical modules AGND VREF EN/SY PGNDx
14174-
Optical fiber amplifiers
Figure 1.
Optical networking systems Instruments requiring TEC temperature control GENERAL DESCRIPTION
The ADN88351 is a monolithic TEC control er with an integrated The temperature control loop of the ADN8835 is stabilized by TEC control er. It has a linear power stage, a pulse-width PID compensation utilizing the built in, zero-drift chopper modulation (PWM) power stage, and two zero-drift, rail-to-rail amplifiers. The internal 2.50 V reference voltage provides a 1% chopper amplifiers. The linear controller works with the PWM accurate output that biases a thermistor temperature sensing driver to control the internal power MOSFETs in an H bridge bridge as wel as a voltage divider network to program the configuration. By measuring the thermal sensor feedback maximum TEC current and voltage limits for both the heating and voltage and using the integrated operational amplifiers as a cooling modes. With the zero-drift chopper amplifiers, excel ent proportional integral differential (PID) compensator to condition long-term temperature stability is maintained via an autonomous the signal, the ADN8835 drives current through a TEC to settle analog temperature control loop. the temperature of a laser diode or a passive component attached to the TEC module to the programmed target temperature.
Table 1. TEC Family Models Device No. MOSFET Thermal Loop Package
The ADN8835 supports negative temperature coefficient ADN8831 Discrete Digital/analog LFCSP (CP-32-7) (NTC) thermistors as wel as positive temperature coefficient ADN8833 Integrated Digital WLCSP (CB-25-7), (PTC) resistive temperature detectors (RTDs). The target LFCSP (CP-24-15) temperature is set as an analog voltage input either from a ADN8834 Integrated Digital/analog WLCSP (CB-25-7), digital-to-analog converter (DAC) or from an external resistor LFCSP (CP-24-15) divider. ADN8835 Integrated Digital/analog LFCSP (CP-36-5) 1 Product is covered by U.S. Patent No. 6,486,643.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2016–2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
