Datasheet AP64350Q (Diodes) - 4
| Hersteller | Diodes |
| Beschreibung | Automotive-compliant, 40V, 3.5A Synchronous Buck with Programmable Frequency |
| Seiten / Seite | 26 / 4 — AP64350Q. Functional Block Diagram. 1.5μA. 4μA. VCC. VIN. Regulator. … |
| Dateiformat / Größe | PDF / 1.3 Mb |
| Dokumentensprache | Englisch |
AP64350Q. Functional Block Diagram. 1.5μA. 4μA. VCC. VIN. Regulator. 20kΩ. Internal. 0.8V. 1.18V –. Reference. RT = 0.089V/A. CSA. OVP. 0.88V -. BST. OCP
Modelllinie für dieses Datenblatt
Textversion des Dokuments

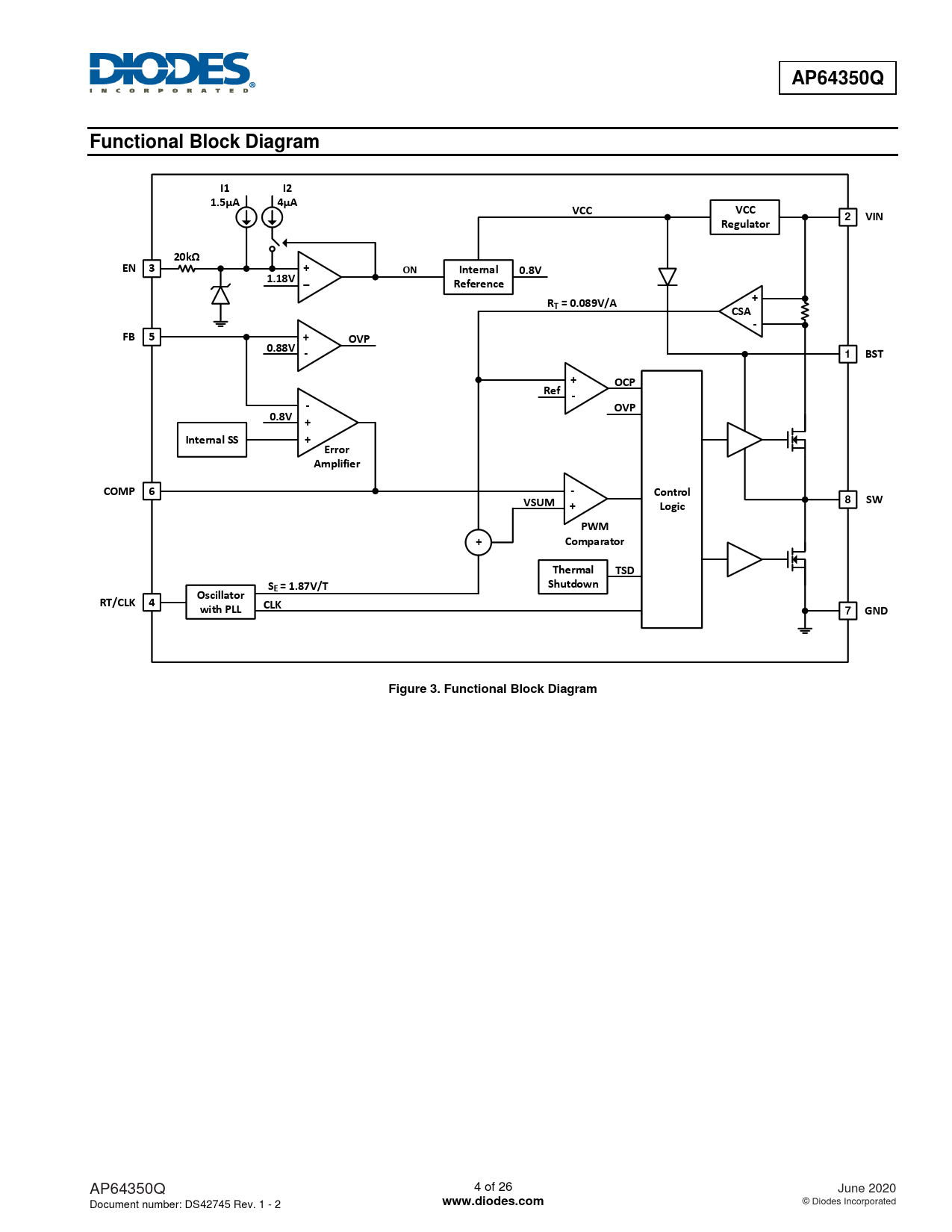

AP64350Q Functional Block Diagram I1 I2 1.5μA 4μA VCC VCC 3 2 VIN Regulator 20kΩ EN 3 + ON Internal 0.8V 1.18V – Reference + RT = 0.089V/A CSA - FB 5 + OVP 0.88V - 6 1 BST + OCP Ref - - OVP 0.8V + Internal SS + Error Amplifier COMP 6 - Con Co t n ro r l o l VSUM 5 8 SW + Lo L g o i g c i PWM + Comparator Thermal TSD SE Shutdown = 1.87V/T Oscillator RT/CLK 4 CLK with PLL 4 7 GND Figure 3. Functional Block Diagram
AP64350Q 4 of 26 June 2020 Document number: DS42745 Rev. 1 - 2
