Nexperia. PMEG120G10ELR. 120 V, 1 A Silicon Germanium (SiGe) rectifier. 5. Pinning information Table 2. Pinning information

Nexperia PMEG120G10ELR 120 V, 1 A Silicon Germanium (SiGe) rectifier 5 Pinning information Table 2 Pinning information

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 2 link to page 2

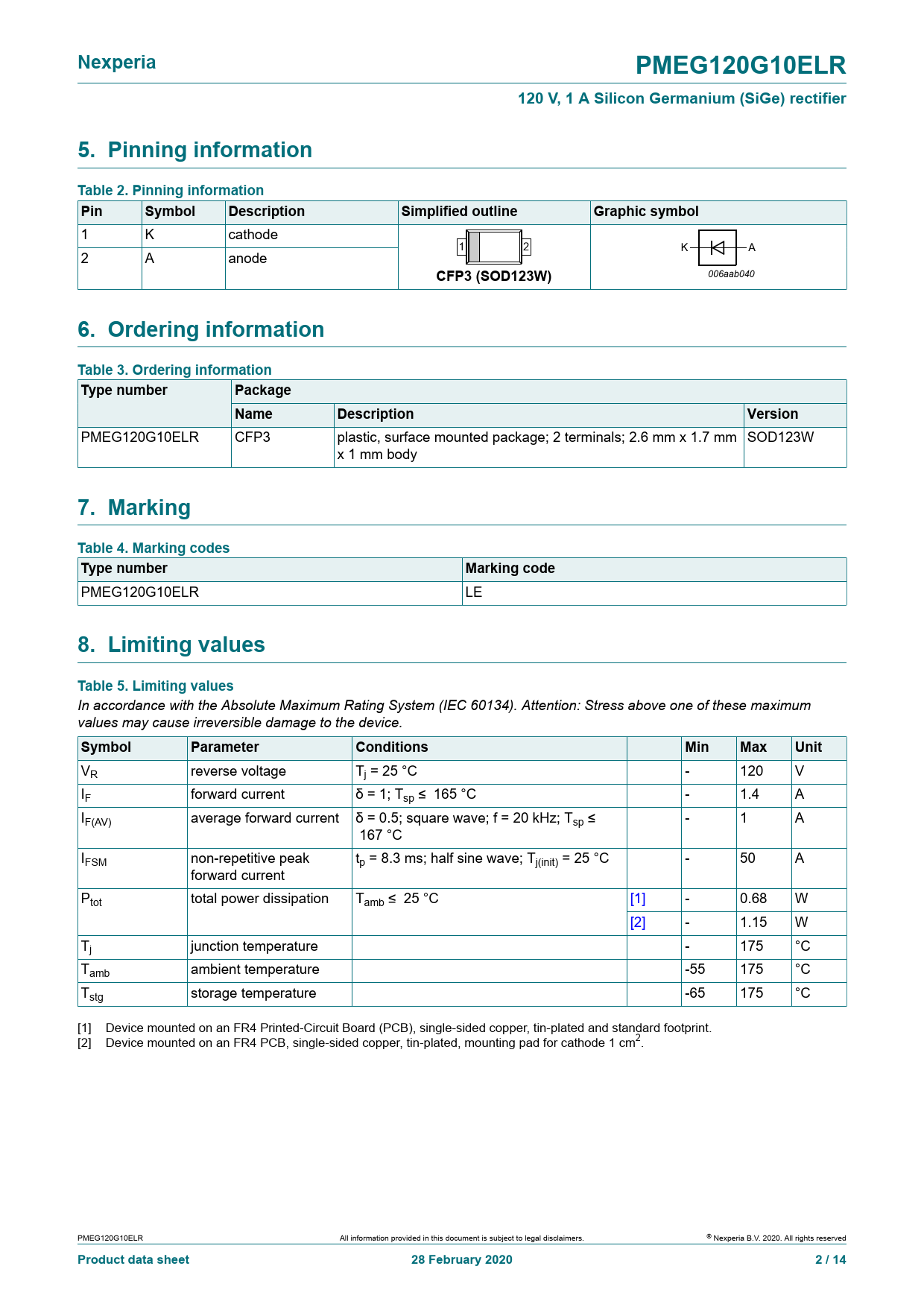

Nexperia PMEG120G10ELR 120 V, 1 A Silicon Germanium (SiGe) rectifier 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 K cathode 1 2 K A 2 A anode
CFP3 (SOD123W)
006aab040
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PMEG120G10ELR CFP3 plastic, surface mounted package; 2 terminals; 2.6 mm x 1.7 mm SOD123W x 1 mm body
7. Marking Table 4. Marking codes Type number Marking code
PMEG120G10ELR LE
8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134). Attention: Stress above one of these maximum values may cause irreversible damage to the device.
Symbol Parameter Conditions Min Max Unit
VR reverse voltage Tj = 25 °C - 120 V IF forward current δ = 1; Tsp ≤ 165 °C - 1.4 A IF(AV) average forward current δ = 0.5; square wave; f = 20 kHz; Tsp ≤ - 1 A 167 °C IFSM non-repetitive peak tp = 8.3 ms; half sine wave; Tj(init) = 25 °C - 50 A forward current Ptot total power dissipation Tamb ≤ 25 °C [1] - 0.68 W [2] - 1.15 W Tj junction temperature - 175 °C Tamb ambient temperature -55 175 °C Tstg storage temperature -65 175 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2. PMEG120G10ELR All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 28 February 2020 2 / 14
