Datasheet LTC4380 (Analog Devices) - 3

HerstellerAnalog Devices
BeschreibungLow Quiescent Current Surge Stopper
Seiten / Seite24 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE …
RevisionC
Dateiformat / GrößePDF / 1.2 Mb
DokumentenspracheEnglisch

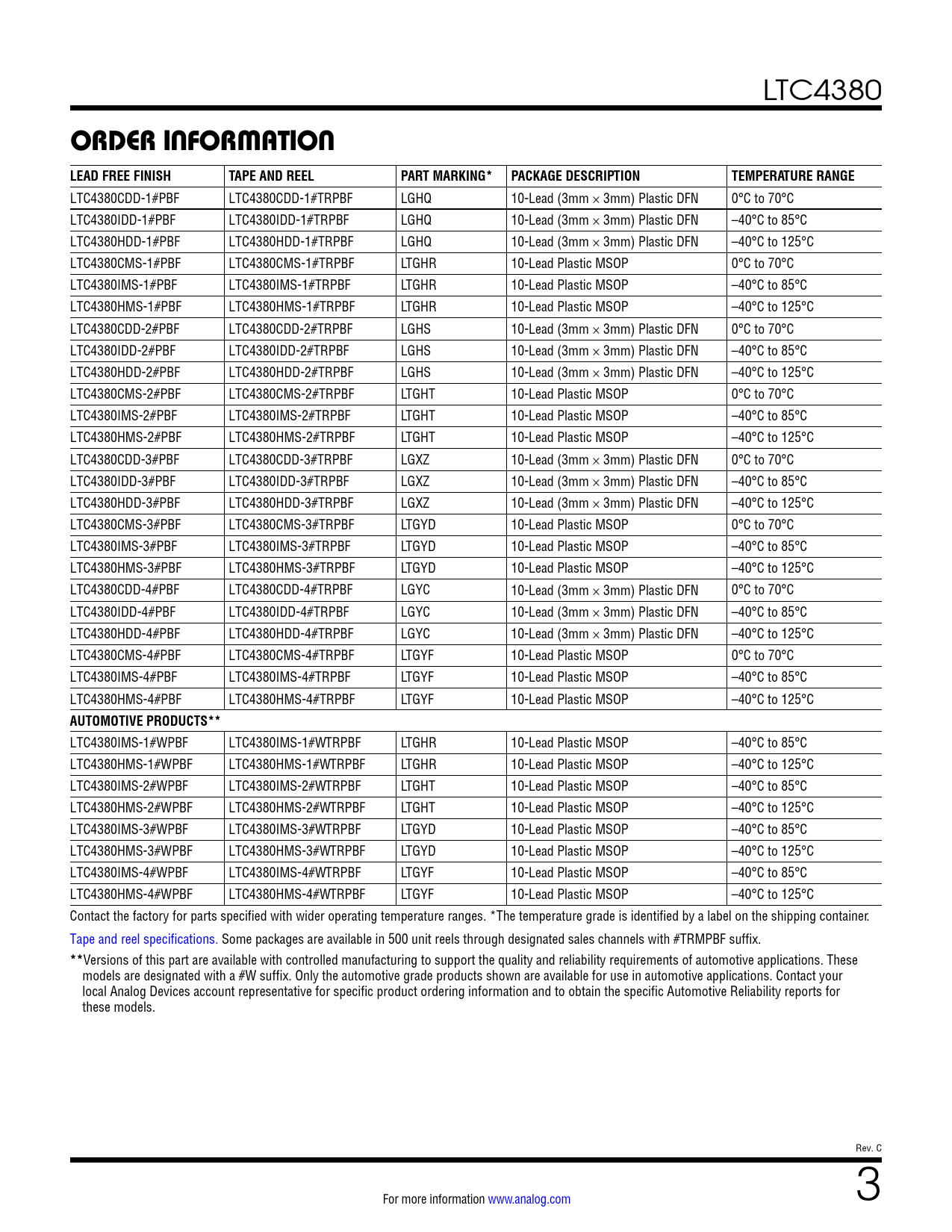

ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. AUTOMOTIVE PRODUCTS**

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE AUTOMOTIVE PRODUCTS**

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LTC4380
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4380CDD-1#PBF LTC4380CDD-1#TRPBF LGHQ 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4380IDD-1#PBF LTC4380IDD-1#TRPBF LGHQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4380HDD-1#PBF LTC4380HDD-1#TRPBF LGHQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4380CMS-1#PBF LTC4380CMS-1#TRPBF LTGHR 10-Lead Plastic MSOP 0°C to 70°C LTC4380IMS-1#PBF LTC4380IMS-1#TRPBF LTGHR 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-1#PBF LTC4380HMS-1#TRPBF LTGHR 10-Lead Plastic MSOP –40°C to 125°C LTC4380CDD-2#PBF LTC4380CDD-2#TRPBF LGHS 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4380IDD-2#PBF LTC4380IDD-2#TRPBF LGHS 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4380HDD-2#PBF LTC4380HDD-2#TRPBF LGHS 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4380CMS-2#PBF LTC4380CMS-2#TRPBF LTGHT 10-Lead Plastic MSOP 0°C to 70°C LTC4380IMS-2#PBF LTC4380IMS-2#TRPBF LTGHT 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-2#PBF LTC4380HMS-2#TRPBF LTGHT 10-Lead Plastic MSOP –40°C to 125°C LTC4380CDD-3#PBF LTC4380CDD-3#TRPBF LGXZ 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4380IDD-3#PBF LTC4380IDD-3#TRPBF LGXZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4380HDD-3#PBF LTC4380HDD-3#TRPBF LGXZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4380CMS-3#PBF LTC4380CMS-3#TRPBF LTGYD 10-Lead Plastic MSOP 0°C to 70°C LTC4380IMS-3#PBF LTC4380IMS-3#TRPBF LTGYD 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-3#PBF LTC4380HMS-3#TRPBF LTGYD 10-Lead Plastic MSOP –40°C to 125°C LTC4380CDD-4#PBF LTC4380CDD-4#TRPBF LGYC 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4380IDD-4#PBF LTC4380IDD-4#TRPBF LGYC 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4380HDD-4#PBF LTC4380HDD-4#TRPBF LGYC 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4380CMS-4#PBF LTC4380CMS-4#TRPBF LTGYF 10-Lead Plastic MSOP 0°C to 70°C LTC4380IMS-4#PBF LTC4380IMS-4#TRPBF LTGYF 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-4#PBF LTC4380HMS-4#TRPBF LTGYF 10-Lead Plastic MSOP –40°C to 125°C
AUTOMOTIVE PRODUCTS**
LTC4380IMS-1#WPBF LTC4380IMS-1#WTRPBF LTGHR 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-1#WPBF LTC4380HMS-1#WTRPBF LTGHR 10-Lead Plastic MSOP –40°C to 125°C LTC4380IMS-2#WPBF LTC4380IMS-2#WTRPBF LTGHT 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-2#WPBF LTC4380HMS-2#WTRPBF LTGHT 10-Lead Plastic MSOP –40°C to 125°C LTC4380IMS-3#WPBF LTC4380IMS-3#WTRPBF LTGYD 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-3#WPBF LTC4380HMS-3#WTRPBF LTGYD 10-Lead Plastic MSOP –40°C to 125°C LTC4380IMS-4#WPBF LTC4380IMS-4#WTRPBF LTGYF 10-Lead Plastic MSOP –40°C to 85°C LTC4380HMS-4#WPBF LTC4380HMS-4#WTRPBF LTGYF 10-Lead Plastic MSOP –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. C For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
