Datasheet AD5590 (Analog Devices)

HerstellerAnalog Devices
Beschreibung16 Input, 16 Output Analog I/O Port with Integrated Amplifiers
Seiten / Seite44 / 1 — 16 Input, 16 Output Analog I/O Port. with Integrated Amplifiers. AD5590. …
RevisionA
Dateiformat / GrößePDF / 1.0 Mb
DokumentenspracheEnglisch

16 Input, 16 Output Analog I/O Port. with Integrated Amplifiers. AD5590. FEATURES. Low input bias current: 1 pA maximum

Datasheet AD5590 Analog Devices, Revision: A

Modelllinie für dieses Datenblatt

Textversion des Dokuments

16 Input, 16 Output Analog I/O Port with Integrated Amplifiers AD5590 FEATURES Low input bias current: 1 pA maximum Input channels Single supply operation 12-bit successive approximation ADC Low noise: 22 nV/√Hz 16 inputs with sequencer Unity gain stable Fast throughput rate: 1 MSPS Flexible serial interface Wide input bandwidth: 70 dB SNR at f SPI-/QSPI-/MICROWIRE-/DSP-compatible IN = 50 kHz Output channels −40°C to +85°C operation 16 outputs with 12-bit DACs Available in 80-ball CSP_BGA package On-chip 2.5 V reference APPLICATIONS Hardware LDAC and LDAC override function Optical line cards CLR function to programmable code Base stations Rail-to-rail operation General-purpose analog I/O Operational amplifiers Monitoring and control Offset voltage: 2.2 mV maximum FUNCTIONAL BLOCK DIAGRAM ADCV DACV V1+ V2+ V1– V2– V DD DD (×2) REFIN1/VREFOUT1 POWER-ON POWER-DOWN RESET LOGIC LDAC 2.5V REF BUFFER INPUT DAC STRING VOUT0 DSCLK REGISTER REGISTER DAC 0 DSYNC1 DSYNC2 BUFFER INPUT DAC STRING VOUT7 DDIN REGISTER REGISTER DAC 7 DAC LDAC INTERFACE CLR LOGIC BUFFER INPUT DAC STRING VOUT8 REGISTER REGISTER DAC 8 BUFFER INPUT DAC STRING VOUT15 REGISTER REGISTER DAC 15 POWER-DOWN LOGIC VDRIVE 2.5V REF VREFIN2/VREFOUT2 VIN0 ASCLK SEQUENCER ADC ASYNC INTERFACE 12-BIT LOGIC ADIN SUCCESSIVE INPUT T/H APPROXIMATION MUX ADOUT ADC VIN15 AD5590 VREFA
001
IN0(–) IN0(+) OUT0 IN7(–) IN7(+) OUT7 DACGND (×2) ADCGND

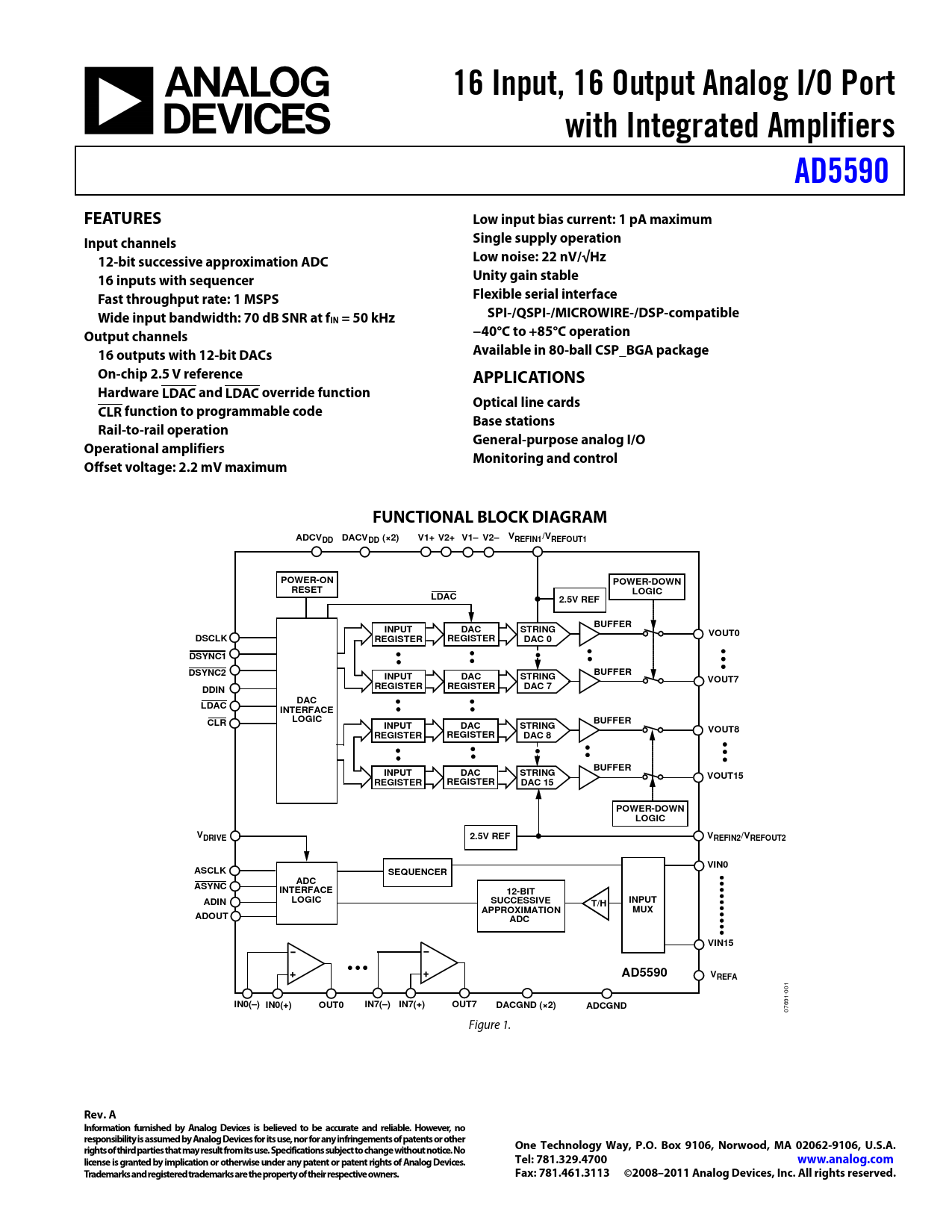

07691- Figure 1.
