A product Line of Diodes Incorporated

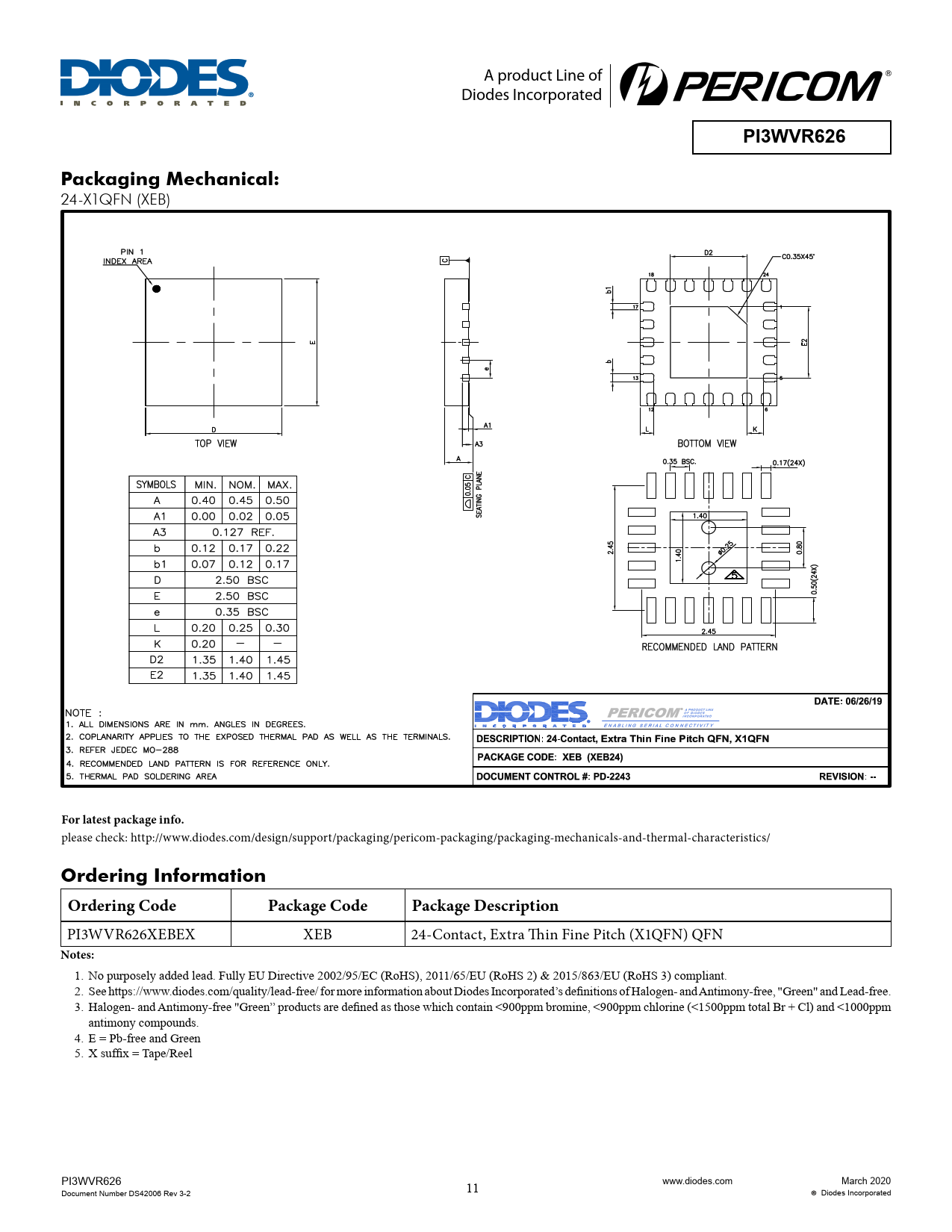

PI3WVR626 Packaging Mechanical:
24-X1QFN (XEB)
For latest package info.
please check: http://www.diodes.com/design/support/packaging/pericom-packaging/packaging-mechanicals-and-thermal-characteristics/
Ordering Information Ordering Code Package Code Package Description
PI3WVR626XEBEX XEB 24-Contact, Extra Thin Fine Pitch (X1QFN) QFN
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. E = Pb-free and Green 5. X suffix = Tape/Reel PI3WVR626 Document Number DS42006 Rev 3-2 11 www.diodes.com March 2020 Diodes Incorporated
