Datasheet OP220 (Analog Devices) - 4

HerstellerAnalog Devices
BeschreibungDual Micropower Operational Amplifier - Obsolete
Seiten / Seite12 / 4 — OP220–SPECIFICATIONS. ABSOLUTE MAXIMUM RATINGS*. Package Type. JA*. Unit. …
Dateiformat / GrößePDF / 1.2 Mb
DokumentenspracheEnglisch

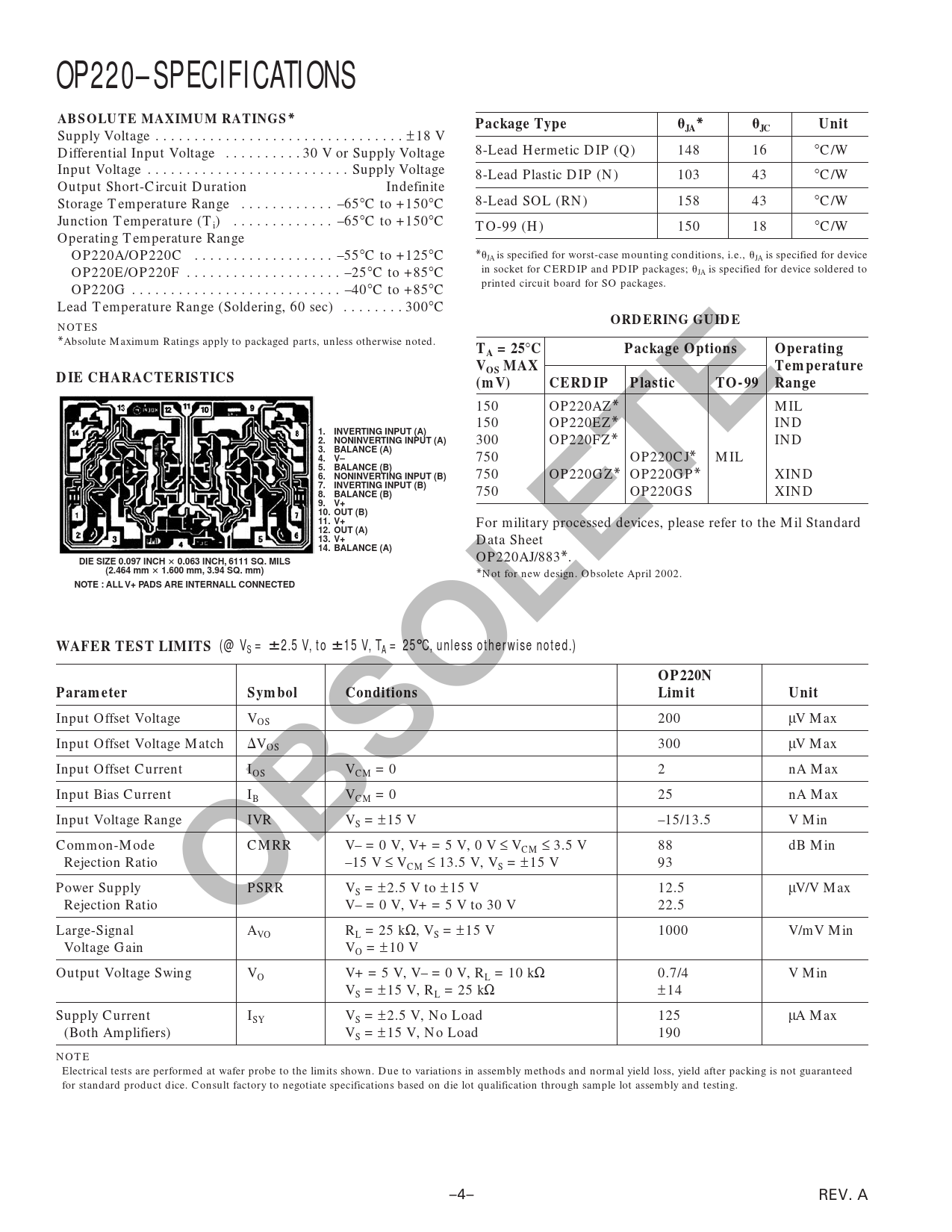

OP220–SPECIFICATIONS. ABSOLUTE MAXIMUM RATINGS*. Package Type. JA*. Unit. ORDERING GUIDE. TA = 25. C Package Options. Operating. VOS MAX

OP220–SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS* Package Type JA* Unit ORDERING GUIDE TA = 25 C Package Options Operating VOS MAX

Modelllinie für dieses Datenblatt

Textversion des Dokuments

OP220–SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS* Package Type

JA*

JC Unit
Supply Voltage . ± 18 V Differential Input Voltage . 30 V or Supply Voltage 8-Lead Hermetic DIP (Q) 148 16 ∞C/W Input Voltage . Supply Voltage 8-Lead Plastic DIP (N) 103 43 ∞C/W Output Short-Circuit Duration Indefinite Storage Temperature Range . –65∞C to +150∞C 8-Lead SOL (RN) 158 43 ∞C/W Junction Temperature (Ti) . –65∞C to +150∞C TO-99 (H) 150 18 ∞C/W Operating Temperature Range OP220A/OP220C . –55∞C to +125∞C *␪JA is specified for worst-case mounting conditions, i.e., ␪JA is specified for device OP220E/OP220F . –25∞C to +85∞C in socket for CERDIP and PDIP packages; ␪JA is specified for device soldered to printed circuit board for SO packages. OP220G . –40∞C to +85∞C Lead Temperature Range (Soldering, 60 sec) . 300∞C
