Datasheet AD824 (Analog Devices) - 3

HerstellerAnalog Devices
BeschreibungSingle Supply, Rail-to-Rail Low Power, FET-Input Op Amp
Seiten / Seite16 / 3 — Data Sheet. AD824. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. …
RevisionE
Dateiformat / GrößePDF / 348 Kb
DokumentenspracheEnglisch

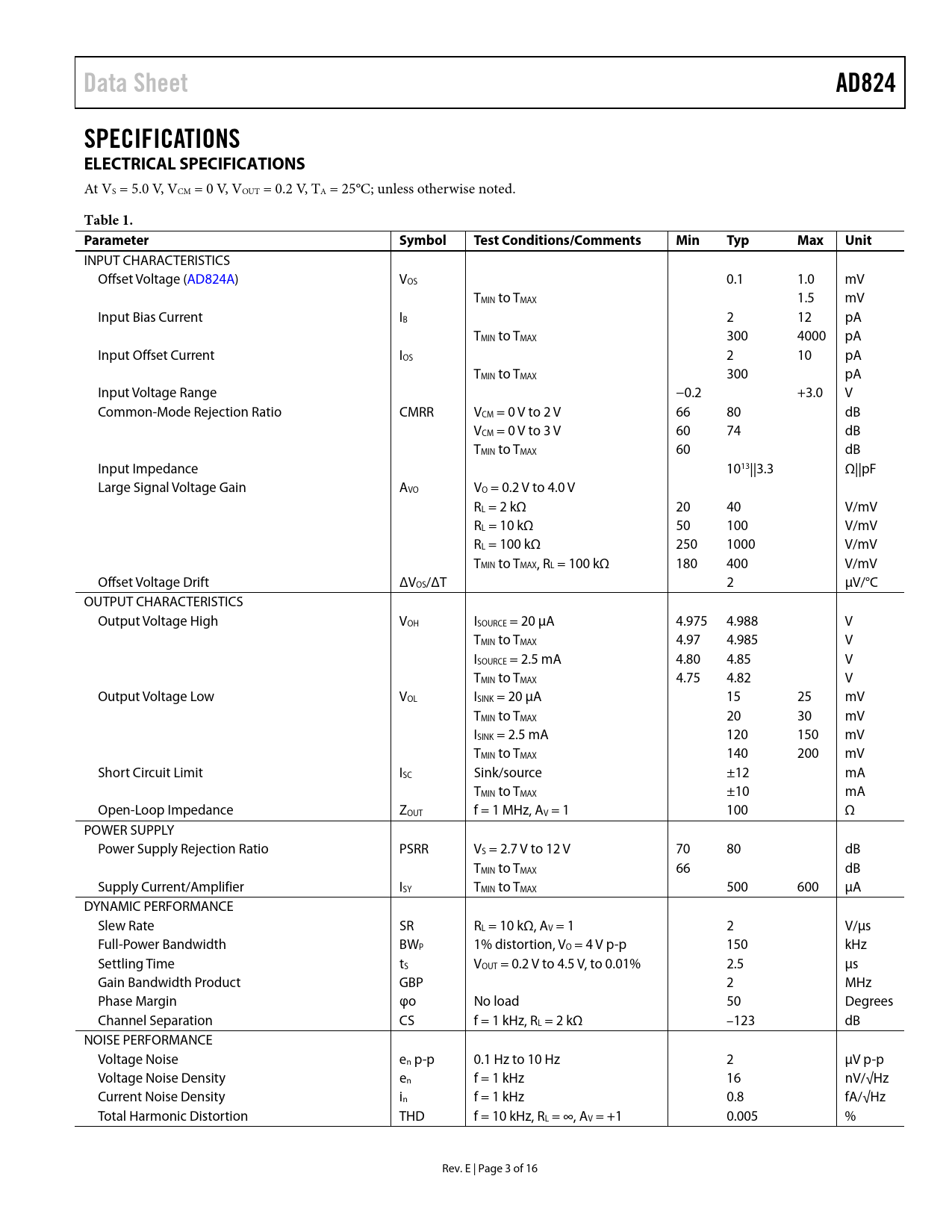

Data Sheet. AD824. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit

Data Sheet AD824 SPECIFICATIONS ELECTRICAL SPECIFICATIONS Table 1 Parameter Symbol Test Conditions/Comments Min Typ Max Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Data Sheet AD824 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
At VS = 5.0 V, VCM = 0 V, VOUT = 0.2 V, TA = 25°C; unless otherwise noted.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage (AD824A) VOS 0.1 1.0 mV TMIN to TMAX 1.5 mV Input Bias Current IB 2 12 pA TMIN to TMAX 300 4000 pA Input Offset Current IOS 2 10 pA TMIN to TMAX 300 pA Input Voltage Range −0.2 +3.0 V Common-Mode Rejection Ratio CMRR VCM = 0 V to 2 V 66 80 dB VCM = 0 V to 3 V 60 74 dB TMIN to TMAX 60 dB Input Impedance 1013||3.3 Ω||pF Large Signal Voltage Gain AVO VO = 0.2 V to 4.0 V RL = 2 kΩ 20 40 V/mV RL = 10 kΩ 50 100 V/mV RL = 100 kΩ 250 1000 V/mV TMIN to TMAX, RL = 100 kΩ 180 400 V/mV Offset Voltage Drift ΔVOS/ΔT 2 µV/°C OUTPUT CHARACTERISTICS Output Voltage High VOH ISOURCE = 20 µA 4.975 4.988 V TMIN to TMAX 4.97 4.985 V ISOURCE = 2.5 mA 4.80 4.85 V TMIN to TMAX 4.75 4.82 V Output Voltage Low VOL ISINK = 20 µA 15 25 mV TMIN to TMAX 20 30 mV ISINK = 2.5 mA 120 150 mV TMIN to TMAX 140 200 mV Short Circuit Limit ISC Sink/source ±12 mA TMIN to TMAX ±10 mA Open-Loop Impedance ZOUT f = 1 MHz, AV = 1 100 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR VS = 2.7 V to 12 V 70 80 dB TMIN to TMAX 66 dB Supply Current/Amplifier ISY TMIN to TMAX 500 600 µA DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ, AV = 1 2 V/µs Full-Power Bandwidth BWP 1% distortion, VO = 4 V p-p 150 kHz Settling Time tS VOUT = 0.2 V to 4.5 V, to 0.01% 2.5 µs Gain Bandwidth Product GBP 2 MHz Phase Margin φo No load 50 Degrees Channel Separation CS f = 1 kHz, RL = 2 kΩ –123 dB NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 2 µV p-p Voltage Noise Density en f = 1 kHz 16 nV/√Hz Current Noise Density in f = 1 kHz 0.8 fA/√Hz Total Harmonic Distortion THD f = 10 kHz, RL = ∞, AV = +1 0.005 % Rev. E | Page 3 of 16 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT CHARACTERISTICS OUTPUT CHARACTERISTICS APPLICATIONS INFORMATION SINGLE SUPPLY VOLTAGE-TO-FREQUENCY CONVERTER SINGLE SUPPLY PROGRAMMABLE GAIN INSTRUMENTATION AMPLIFIER 3 V, SINGLE SUPPLY STEREO HEADPHONE DRIVER LOW DROPOUT BIPOLAR BRIDGE DRIVER A 3.3 V/5 V PRECISION SAMPLE-AND-HOLD AMPLIFIER OUTLINE DIMENSIONS ORDERING GUIDE
