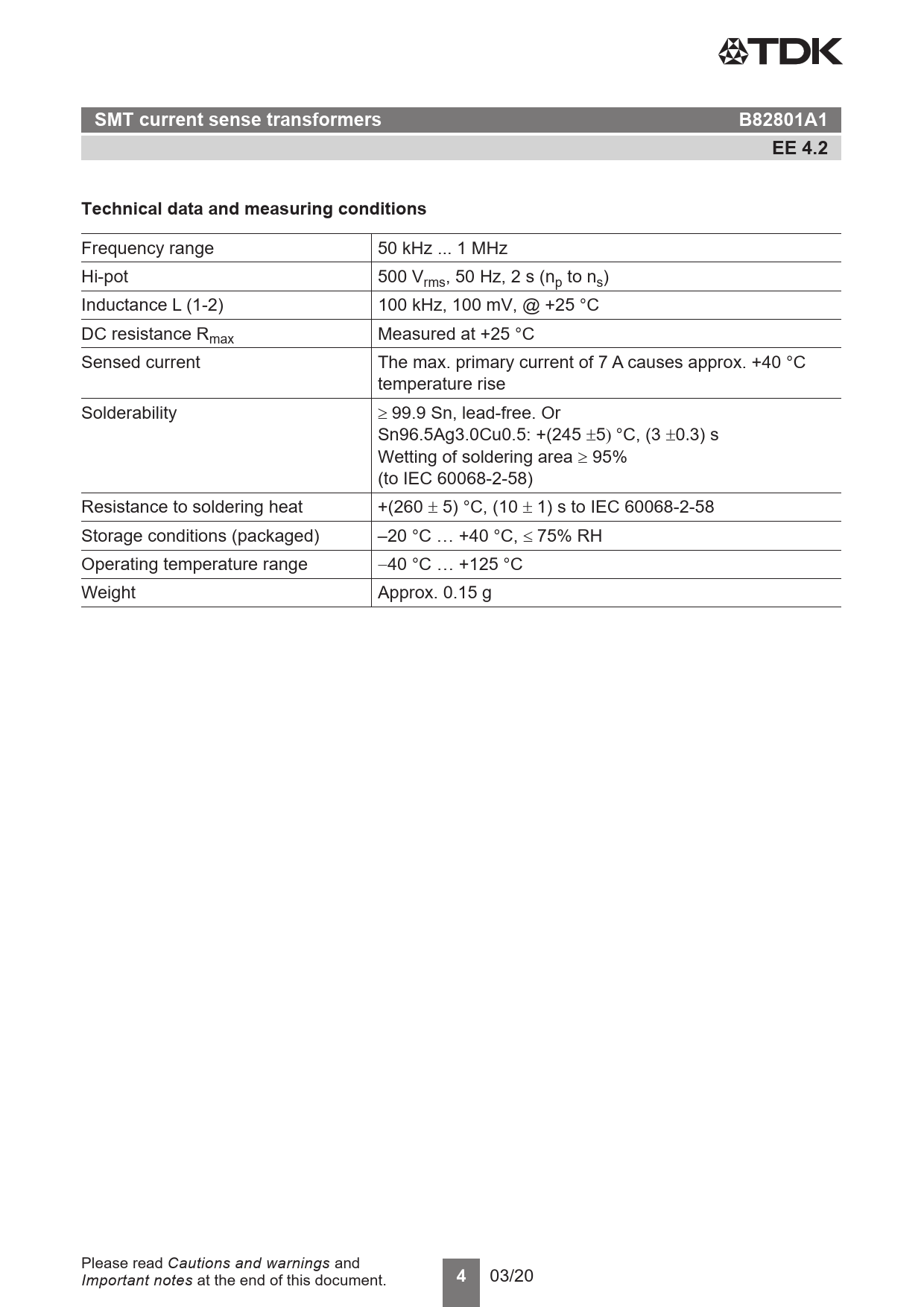

SMT current sense transformers. B82801A1. EE 4.2. Technical data and measuring conditions
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SMT current sense transformers B82801A1 EE 4.2 Technical data and measuring conditions
Frequency range 50 kHz ... 1 MHz Hi-pot 500 Vrms, 50 Hz, 2 s (np to ns) Inductance L (1-2) 100 kHz, 100 mV, @ +25 °C DC resistance Rmax Measured at +25 °C Sensed current The max. primary current of 7 A causes approx. +40 °C temperature rise Solderability t99.9 Sn, lead-free. Or Sn96.5Ag3.0Cu0.5: +(245 r5 °C, (3 r03) s Wetting of soldering area t 95% (to IEC 60068-2-58) Resistance to soldering heat +(260 r 5) °C, (10 r1) s to IEC 60068-2-58 Storage conditions (packaged) –20 °C … +40 °C, d75% RH Operating temperature range 40 °C … +125 °C Weight Approx. 0.15 g Please read Cautions and warnings and
4
03/20 Important notes at the end of this document.
