Nexperia. MMBZxAL series. Low capacitance unidirectional double ESD protection diodes. 1.4 Quick reference data. Table 2

Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes 1.4 Quick reference data Table 2

Modelllinie für dieses Datenblatt

Textversion des Dokuments

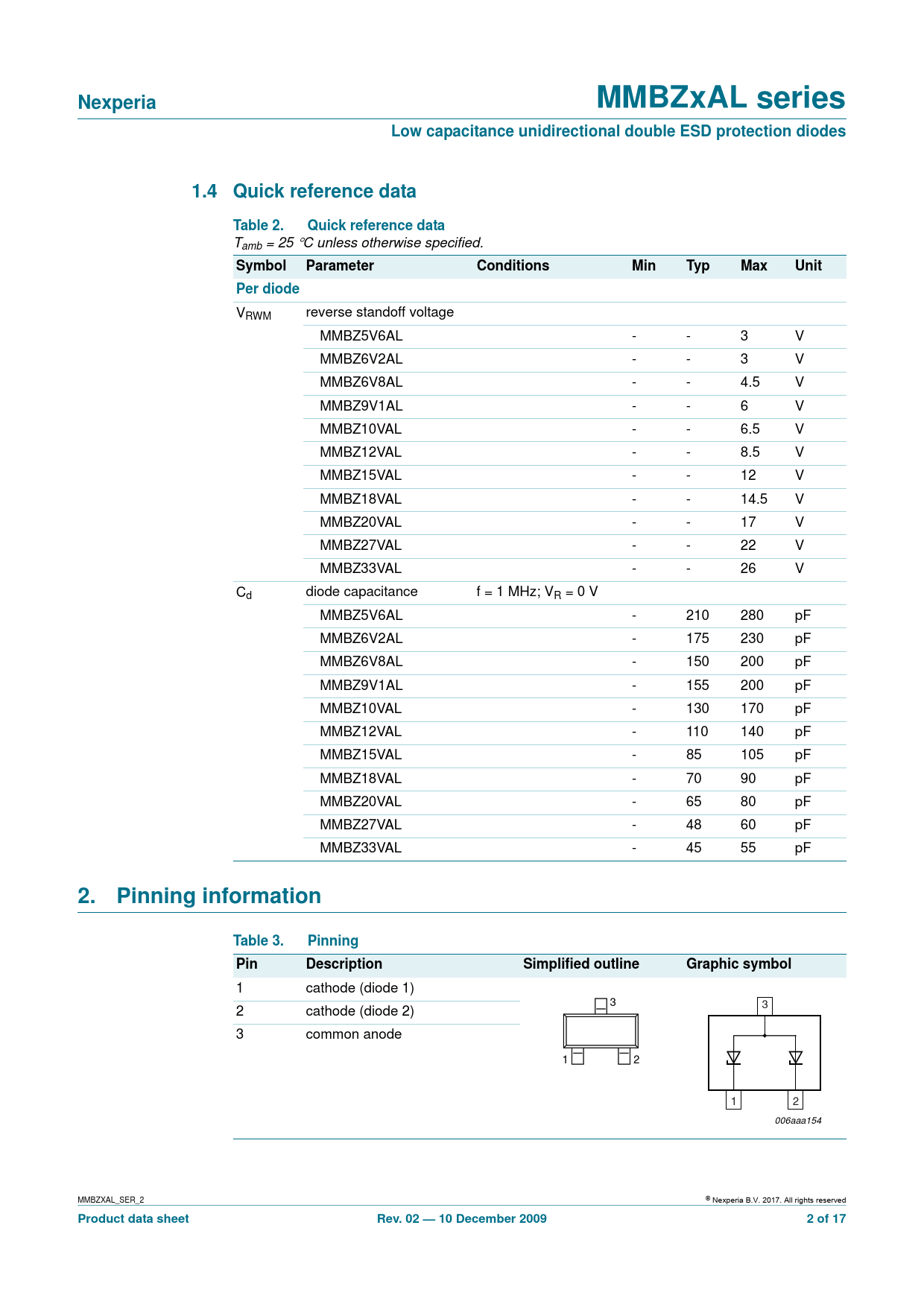

Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes 1.4 Quick reference data Table 2. Quick reference data
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Per diode
VRWM reverse standoff voltage MMBZ5V6AL - - 3 V MMBZ6V2AL - - 3 V MMBZ6V8AL - - 4.5 V MMBZ9V1AL - - 6 V MMBZ10VAL - - 6.5 V MMBZ12VAL - - 8.5 V MMBZ15VAL - - 12 V MMBZ18VAL - - 14.5 V MMBZ20VAL - - 17 V MMBZ27VAL - - 22 V MMBZ33VAL - - 26 V Cd diode capacitance f = 1 MHz; VR = 0 V MMBZ5V6AL - 210 280 pF MMBZ6V2AL - 175 230 pF MMBZ6V8AL - 150 200 pF MMBZ9V1AL - 155 200 pF MMBZ10VAL - 130 170 pF MMBZ12VAL - 110 140 pF MMBZ15VAL - 85 105 pF MMBZ18VAL - 70 90 pF MMBZ20VAL - 65 80 pF MMBZ27VAL - 48 60 pF MMBZ33VAL - 45 55 pF
2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol
1 cathode (diode 1) 3 3 2 cathode (diode 2) 3 common anode 1 2 1 2 006aaa154 MMBZXAL_SER_2 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 02 — 10 December 2009 2 of 17
Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Application information 9. Test information 9.1 Quality information 10. Package outline 11. Packing information 12. Soldering 13. Revision history 14. Legal information 14.1 Data sheet status 14.2 Definitions 14.3 Disclaimers 14.4 Trademarks 15. Contact information 16. Contents
