Datasheet ADT7411 (Analog Devices)

HerstellerAnalog Devices
BeschreibungSPI-/I2C-Compatible, 10-Bit Digital Temperature Sensor and 8-Channel ADC
Seiten / Seite36 / 1 — SPI-/I2C-Compatible, 10-Bit Digital. Temperature Sensor and 8-Channel …
RevisionC
Dateiformat / GrößePDF / 843 Kb
DokumentenspracheEnglisch

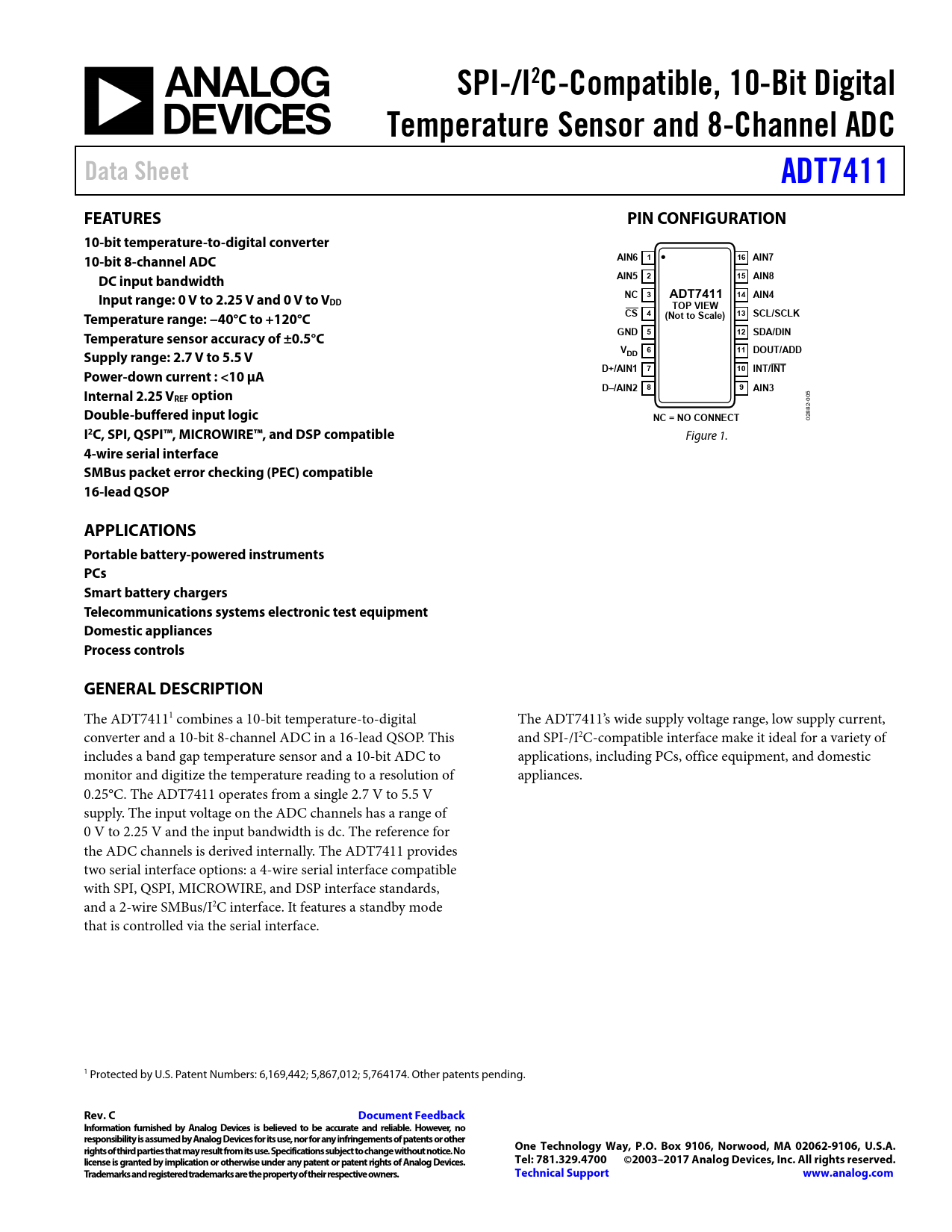

SPI-/I2C-Compatible, 10-Bit Digital. Temperature Sensor and 8-Channel ADC. Data Sheet. ADT7411. FEATURES. PIN CONFIGURATION

Datasheet ADT7411 Analog Devices, Revision: C

Modelllinie für dieses Datenblatt

Textversion des Dokuments

SPI-/I2C-Compatible, 10-Bit Digital Temperature Sensor and 8-Channel ADC Data Sheet ADT7411 FEATURES PIN CONFIGURATION 10-bit temperature-to-digital converter 10-bit 8-channel ADC AIN6 1 16 AIN7 DC input bandwidth AIN5 2 15 AIN8 NC 3 ADT7411 14 AIN4 Input range: 0 V to 2.25 V and 0 V to VDD TOP VIEW CS 4 13 SCL/SCLK Temperature range: −40°C to +120°C (Not to Scale) GND 5 12 SDA/DIN Temperature sensor accuracy of ±0.5°C V 6 11 DOUT/ADD Supply range: 2.7 V to 5.5 V DD D+/AIN1 7 10 INT/INT Power-down current : <10 μA D–/AIN2 8 9 AIN3 Internal 2.25 VREF option
05 0 2-
Double-buffered input logic
88
NC = NO CONNECT
02
I2C, SPI, QSPI™, MICROWIRE™, and DSP compatible
Figure 1.
4-wire serial interface SMBus packet error checking (PEC) compatible 16-lead QSOP APPLICATIONS Portable battery-powered instruments PCs Smart battery chargers Telecommunications systems electronic test equipment Domestic appliances Process controls GENERAL DESCRIPTION
The ADT74111 combines a 10-bit temperature-to-digital The ADT7411’s wide supply voltage range, low supply current, converter and a 10-bit 8-channel ADC in a 16-lead QSOP. This and SPI-/I2C-compatible interface make it ideal for a variety of includes a band gap temperature sensor and a 10-bit ADC to applications, including PCs, office equipment, and domestic monitor and digitize the temperature reading to a resolution of appliances. 0.25°C. The ADT7411 operates from a single 2.7 V to 5.5 V supply. The input voltage on the ADC channels has a range of 0 V to 2.25 V and the input bandwidth is dc. The reference for the ADC channels is derived internally. The ADT7411 provides two serial interface options: a 4-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, and a 2-wire SMBus/I2C interface. It features a standby mode that is controlled via the serial interface. 1 Protected by U.S. Patent Numbers: 6,169,442; 5,867,012; 5,764174. Other patents pending.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2003–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Pin Configuration General Description Revision History Specifications Functional Block Diagram Absolute Maximum Ratings ESD Caution Pin Configuration and Functional Descriptions Terminology Typical Performance Characteristics Theory of Operation Power-Up Calibration Conversion Speed Functional Description Analog Inputs Single-Ended Inputs Converter Operation ADC Transfer Function Analog Input ESD Protection AIN Interrupts Functional Description—Measurement Temperature Sensor VDD Monitoring On-Chip Reference Round Robin Measurement Single-Channel Measurement Temperature Measurement Method Internal Temperature Measurement External Temperature Measurement Layout Considerations Temperature Value Format Interrupts ADT7411 Registers Interrupt Status 1 Register (Read-Only) [Address = 00h] Interrupt Status 2 Register (Read-Only) [Address = 01h] Internal Temperature Value/VDD Value Register LSBs (Read-Only) [Address = 03h] External Temperature Value and AIN1 to AIN4 Register LSBs (Read-Only) [Address = 04h] AIN5 to AIN8 Registers LSBs (Read-Only) [Address = 05h] VDD Value Register MSBs (Read-Only) [Address = 06h] Internal Temperature Value Register MSBs (Read-Only) [Address = 07h] External Temperature Value or AIN1 Register MSBs (Read-Only) [Address = 08h] AIN2 Register MSBs (Read) [Address = 09h] AIN3 Register MSBs (Read) [Address = 0Ah] AIN4 Register MSBs (Read) [Address = 0Bh] AIN5 Register MSBs (Read) [Address = 0Ch] AIN6 Register MSBs (Read) [Address = 0Dh] AIN7 Register MSBs (Read) [Address = 0Eh] AIN8 Register MSBs (Read) [Address = 0Fh] Control Configuration 1 Register (Read/Write) [Address = 18h] Control Configuration 2 Register (Read/Write) [Address = 19h] Control Configuration 3 Register (Read/Write) [Address = 1Ah] Interrupt Mask 1 Register (Read/Write) [Address = 1Dh] Interrupt Mask 2 Register (Read/Write) [Address = 1Eh] Internal Temperature Offset Register (Read/Write) [Address = 1Fh] External Temperature Offset Register (Read/Write) [Address = 20h] VDD VHIGH Limit Register (Read/Write) [Address = 23h] VDD VLOW Limit Register (Read/Write) [Address = 24h] Internal THIGH Limit Register (Read/Write) [Address = 25h] Internal TLOW Limit Register (Read/Write) [Address = 26h] External THIGH/AIN1 VHIGH Limit Register (Read/Write) [Address = 27h] External TLOW/AIN1 VLOW Limit Register (Read/Write) [Address = 28h] AIN2 VHIGH Limit Register (Read/Write) [Address = 2Bh] AIN2 VLOW Limit Register (Read/Write) [Address = 2Ch] AIN3 VHIGH Limit Register (Read/Write) [Address = 2Dh] AIN3 VLOW Limit Register (Read/Write) [Address = 2Eh] AIN4 VHIGH Limit Register (Read/Write) [Address = 2Fh] AIN4 VLOW Limit Register (Read/Write) [Address = 30h] AIN5 VHIGH Limit Register (Read/Write) [Address = 31h] AIN5 VLOW Limit Register (Read/Write) [Address = 32h] AIN6 VHIGH Limit Register (Read/Write) [Address = 33h] AIN6 VLOW Limit Register (Read/Write) [Address = 34h] AIN7 VHIGH Limit Register (Read/Write) [Address = 35h] AIN7 VLOW Limit Register (Read/Write) [Address = 36h] AIN8 VHIGH Limit Register (Read/Write) [Address = 37h] AIN8 VLOW Limit Register (Read/Write) [Address = 38h] Device ID Register (Read-Only) [Address = 4Dh] Manufacturer’s ID Register (Read-Only) [Address = 4Eh] Silicon Revision Register (Read-Only) [Address = 4Fh] SPI Lock Status Register (Read-Only) [Address = 7Fh] Serial Interface Serial Interface Selection I2C Serial Interface Writing to the ADT7411 Writing to the Address Pointer Register for a Subsequent Read Writing Data to a Register Reading Data from the ADT7411 SPI Serial Interface Write Operation Read Operation SMBus/SPI INT/INTB SMBus Alert Response Outline Dimensions Ordering Guide
