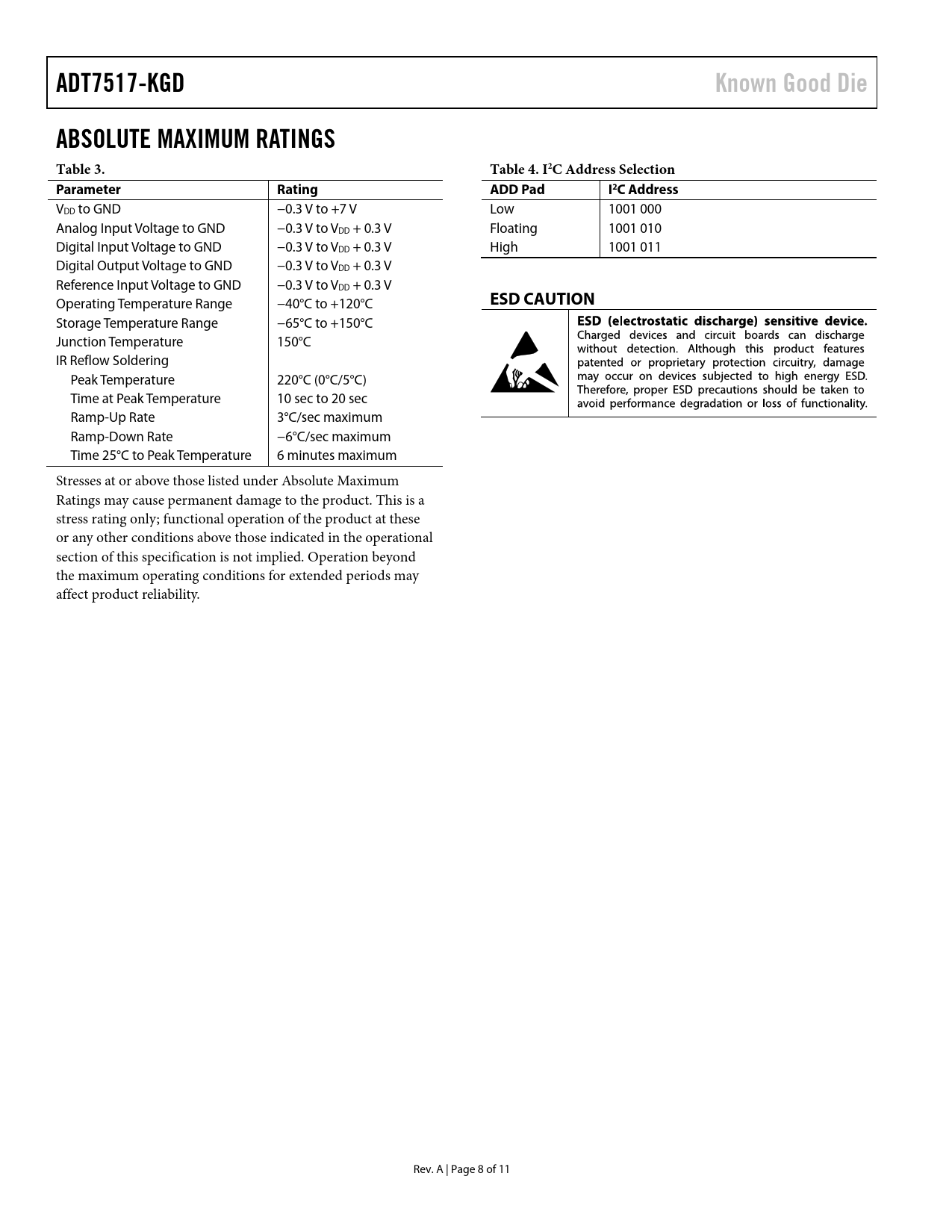

ADT7517-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. I2C Address Selection Parameter Rating ADD Pad I2C Address
VDD to GND −0.3 V to +7 V Low 1001 000 Analog Input Voltage to GND −0.3 V to VDD + 0.3 V Floating 1001 010 Digital Input Voltage to GND −0.3 V to VDD + 0.3 V High 1001 011 Digital Output Voltage to GND −0.3 V to VDD + 0.3 V Reference Input Voltage to GND −0.3 V to VDD + 0.3 V Operating Temperature Range −40°C to +120°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Junction Temperature 150°C IR Reflow Soldering Peak Temperature 220°C (0°C/5°C) Time at Peak Temperature 10 sec to 20 sec Ramp-Up Rate 3°C/sec maximum Ramp-Down Rate −6°C/sec maximum Time 25°C to Peak Temperature 6 minutes maximum Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 8 of 11 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DAC AC CHARACTERISTICS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
