Datasheet ACS37612 (Allegro) - 2

HerstellerAllegro
BeschreibungCoreless, High Precision, Hall-Effect Current Sensor IC with Common-Mode Field Rejection and High Bandwidth (240 kHz)
Seiten / Seite22 / 2 — Coreless, High Precision, Hall-Effect Current Sensor IC. ACS37612
Dateiformat / GrößePDF / 2.3 Mb
DokumentenspracheEnglisch

Coreless, High Precision, Hall-Effect Current Sensor IC. ACS37612

Coreless, High Precision, Hall-Effect Current Sensor IC ACS37612

Modelllinie für dieses Datenblatt

Textversion des Dokuments

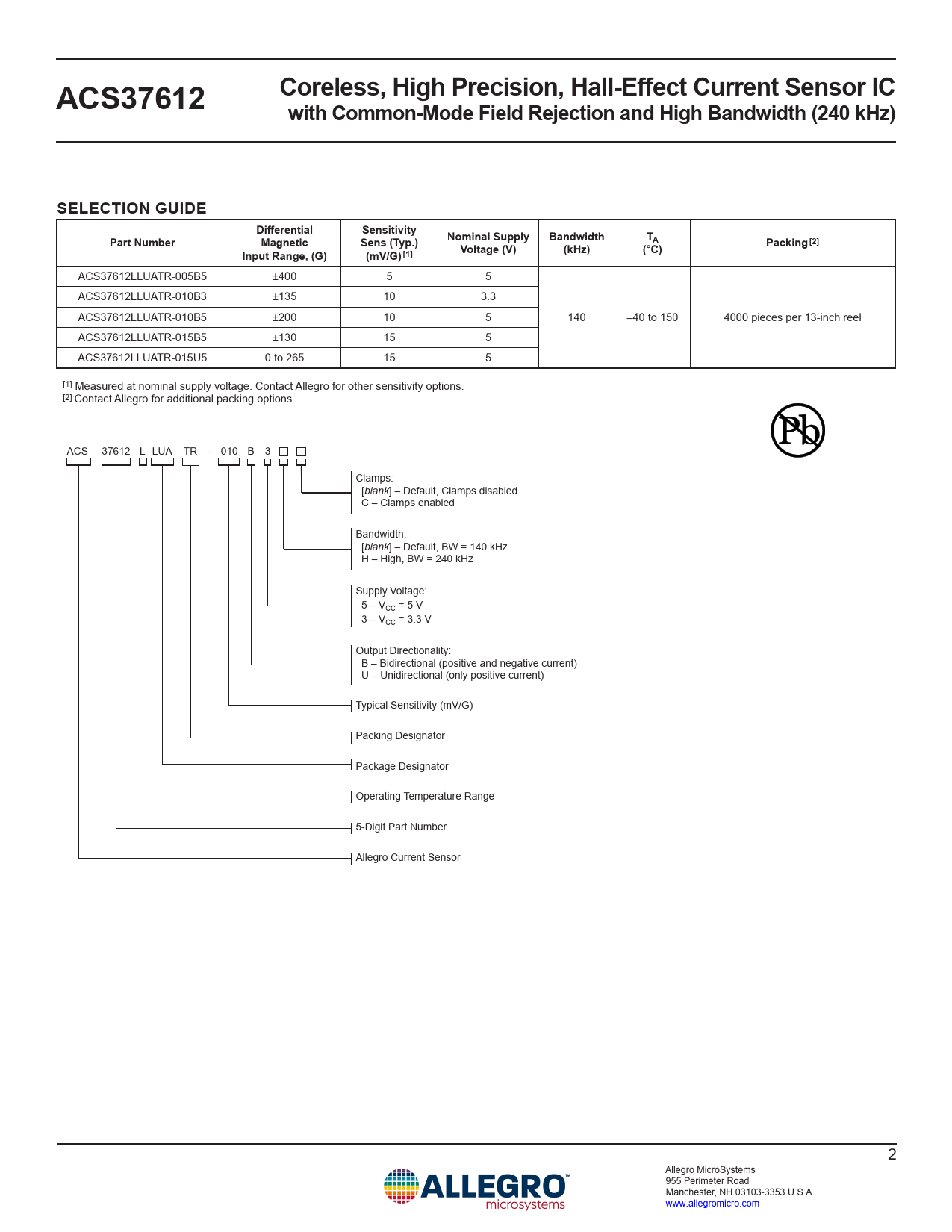

Coreless, High Precision, Hall-Effect Current Sensor IC ACS37612 with Common-Mode Field Rejection and High Bandwidth (240 kHz) SELECTION GUIDE Differential Sensitivity Part Number Magnetic Sens (Typ.) Nominal Supply Bandwidth TA Input Range, (G) (mV/G) [1] Voltage (V) (kHz) (°C) Packing [2]
