Datasheet GNQ-2541Ax-Bx / GNQ-2541 Series (G-Nor)

HerstellerG-Nor
BeschreibungQuad Digit LED Display
Seiten / Seite1 / 1 — Features:
Dateiformat / GrößePDF / 31 Kb
DokumentenspracheEnglisch

Features:

Datasheet GNQ-2541Ax-Bx / GNQ-2541 Series G-Nor

Modelllinie für dieses Datenblatt

Textversion des Dokuments

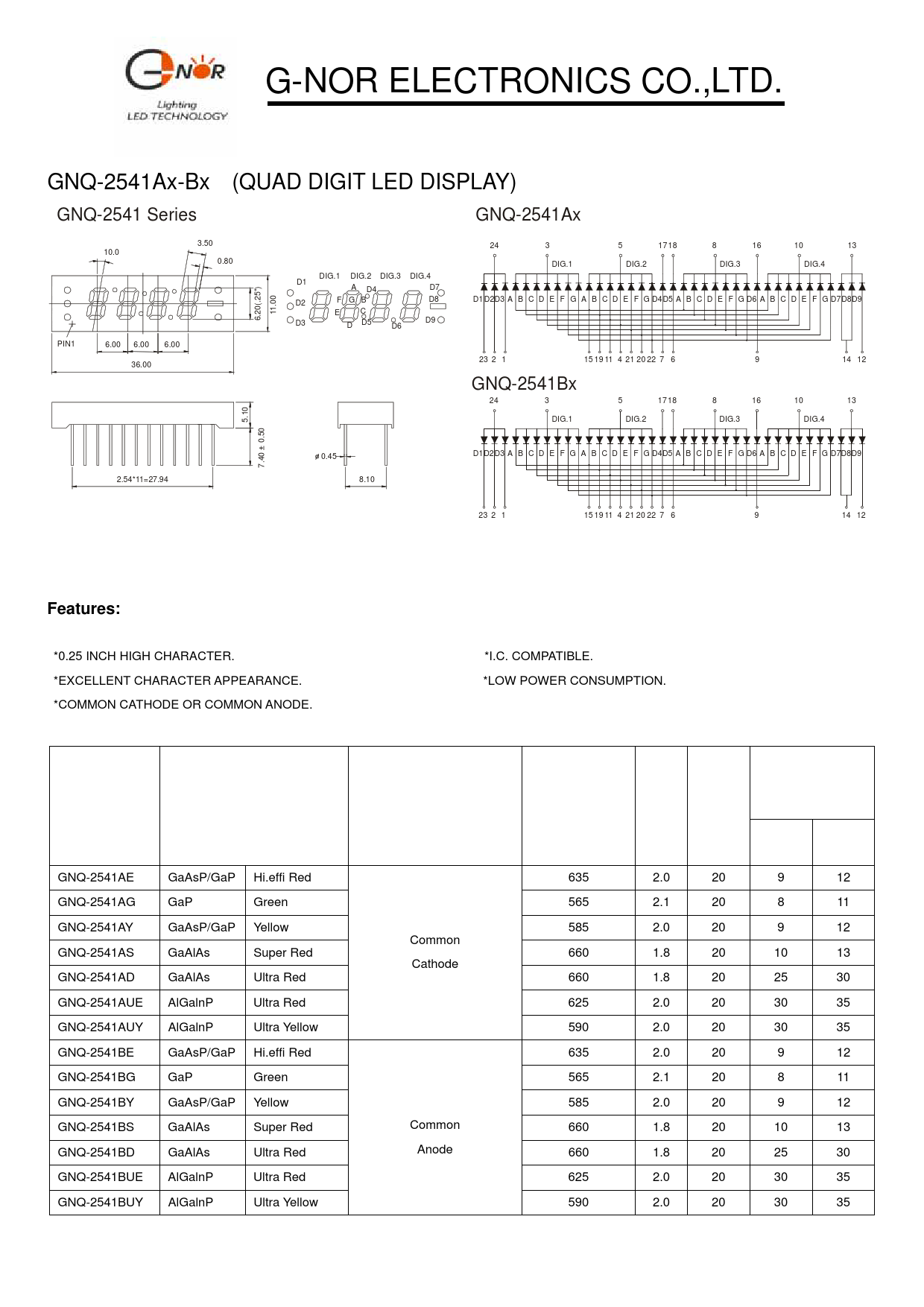

G-NOR ELECTRONICS CO.,LTD. GNQ-2541Ax-Bx (QUAD DIGIT LED DISPLAY) GNQ-2541 Series GNQ-2541Ax 3.50 24 3 5 17 18 8 16 10 13 10.0° 0.80 DIG.1 DIG.2 DIG.3 DIG.4 DIG.1 DIG.2 DIG.3 DIG.4 D1 ") A D4 D7 5 0 D1 D2D3 A B C D E F G A B C D E F G D4D5 A B C D E F G D6 A B C D E F G D7D8D9 (.2 0 D2 F G B D8 0 2 11. E C 6. D3 D5 D9 D D6 PIN1 6.00 6.00 6.00 23 2 1 15 19 11 4 21 20 22 7 6 9 14 12 36.00 GNQ-2541Bx 24 3 5 17 18 8 16 10 13 0 1 5. DIG.1 DIG.2 DIG.3 DIG.4 .50 0 0.45 D1D2D3 A B C D E F G A B C D E F G D4D5 A B C D E F G D6 A B C D E F G D7D8D9 .40 7 2.54*11=27.94 8.10 23 2 1 15 19 11 4 21 20 22 7 6 9 14 12
Features:
*0.25 INCH HIGH CHARACTER. *I.C. COMPATIBLE. *EXCELLENT CHARACTER APPEARANCE. *LOW POWER CONSUMPTION. *COMMON CATHODE OR COMMON ANODE. Intensity Common Cathode Peak Vf Per Segment Part If EMITTED COLOR or Wavelength (v) (mcd) Number (mA) Common Anode (nm) Typ Min. Typ. GNQ-2541AE GaAsP/GaP Hi.effi Red 635 2.0 20 9 12 GNQ-2541AG GaP Green 565 2.1 20 8 11 GNQ-2541AY GaAsP/GaP Yellow 585 2.0 20 9 12 Common GNQ-2541AS GaAlAs Super Red 660 1.8 20 10 13 Cathode GNQ-2541AD GaAlAs Ultra Red 660 1.8 20 25 30 GNQ-2541AUE AlGalnP Ultra Red 625 2.0 20 30 35 GNQ-2541AUY AlGalnP Ultra Yellow 590 2.0 20 30 35 GNQ-2541BE GaAsP/GaP Hi.effi Red 635 2.0 20 9 12 GNQ-2541BG GaP Green 565 2.1 20 8 11 GNQ-2541BY GaAsP/GaP Yellow 585 2.0 20 9 12 GNQ-2541BS GaAlAs Super Red Common 660 1.8 20 10 13 GNQ-2541BD GaAlAs Ultra Red Anode 660 1.8 20 25 30 GNQ-2541BUE AlGalnP Ultra Red 625 2.0 20 30 35 GNQ-2541BUY AlGalnP Ultra Yellow 590 2.0 20 30 35
