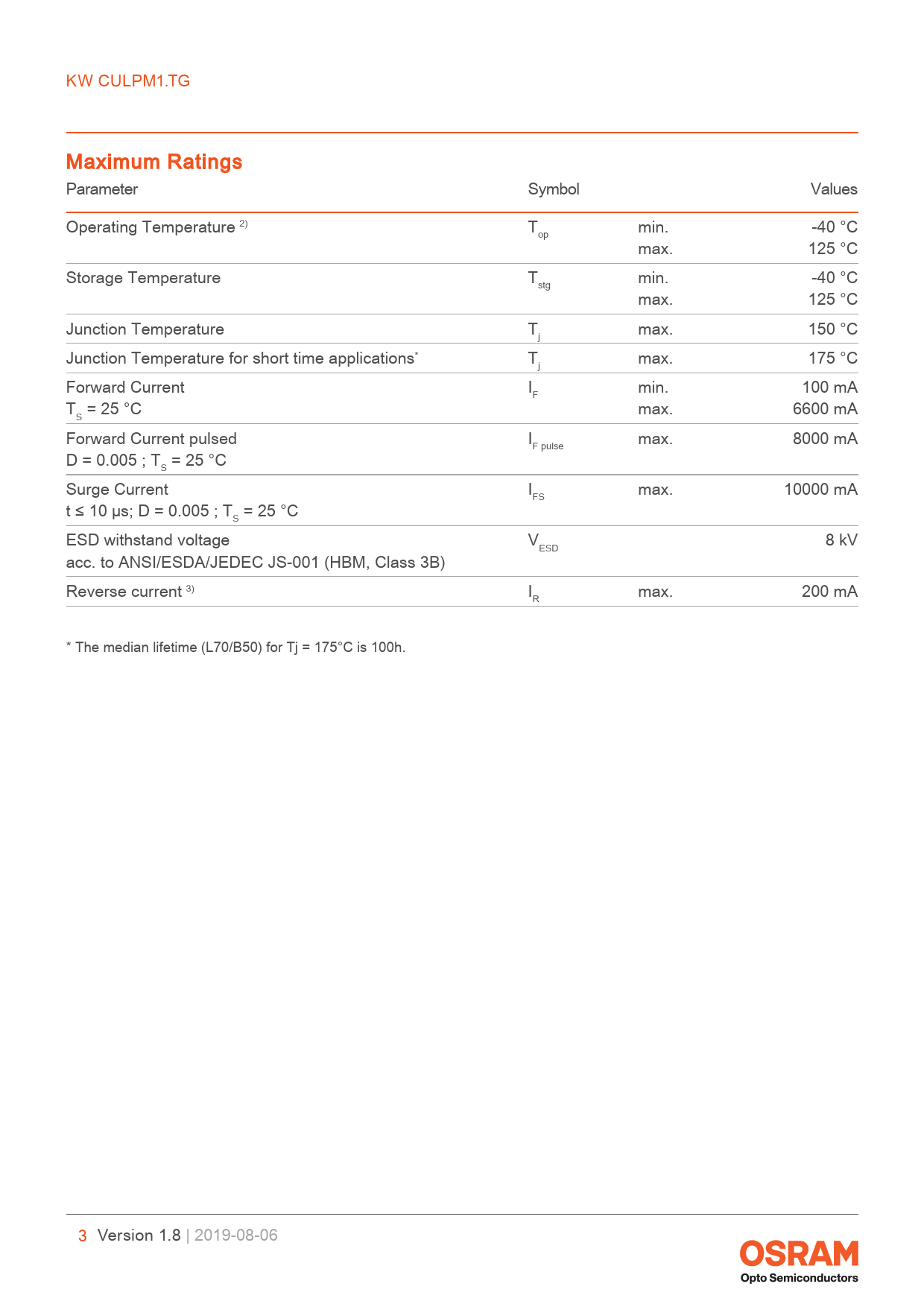

link to page 23 link to page 23 KW CULPM1.TG Maximum Ratings Parameter Symbol Values Operating Temperature 2) T min. -40 °C op max. 125 °C Storage Temperature T min. -40 °C stg max. 125 °C Junction Temperature T max. 150 °C j Junction Temperature for short time applications* T max. 175 °C j Forward Current I min. 100 mA F T = 25 °C max. 6600 mA S Forward Current pulsed I max. 8000 mA F pulse D = 0.005 ; T = 25 °C S Surge Current I max. 10000 mA FS t ≤ 10 µs; D = 0.005 ; T = 25 °C S ESD withstand voltage V 8 kV ESD acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Reverse current 3) I max. 200 mA R * The median lifetime (L70/B50) for Tj = 175°C is 100h. 3 Version 1.8 | 2019-08-06
