Datasheet TLP3107A (Toshiba)

HerstellerToshiba
BeschreibungPhotocouplers Photorelay
Seiten / Seite9 / 1 — TLP3107A. Photocouplers. Photorelay. TLP3107A. 1. Applications. •. …
Dateiformat / GrößePDF / 322 Kb
DokumentenspracheEnglisch

TLP3107A. Photocouplers. Photorelay. TLP3107A. 1. Applications. •. Mechanical. relay. replacements. •. Heating,. ventilation. and. air. conditioning

Datasheet TLP3107A Toshiba

Modelllinie für dieses Datenblatt

Textversion des Dokuments

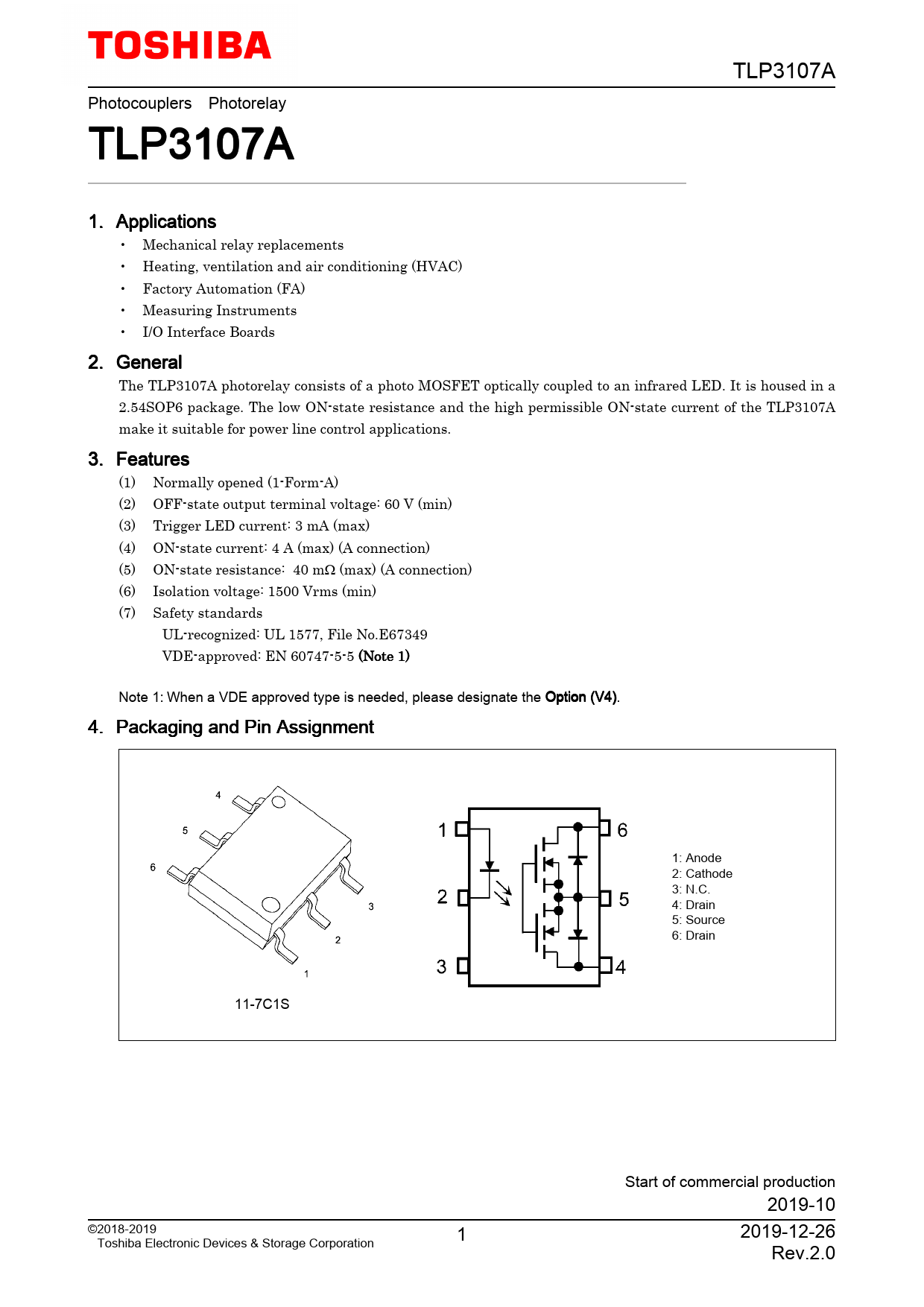

TLP3107A Photocouplers Photorelay TLP3107A 1. Applications • Mechanical relay replacements • Heating, ventilation and air conditioning (HVAC) • Factory Automation (FA) • Measuring Instruments • I/O Interface Boards 2. General The TLP3107A photorelay consists of a photo MOSFET optically coupled to an infrared LED. It is housed in a 2.54SOP6 package. The low ON-state resistance and the high permissible ON-state current of the TLP3107A make it suitable for power line control applications. 3. Features (1) Normally opened (1-Form-A) (2) OFF-state output terminal voltage: 60 V (min) (3) Trigger LED current: 3 mA (max) (4) ON-state current: 4 A (max) (A connection) (5) ON-state resistance: 40 mΩ (max) (A connection) (6) Isolation voltage: 1500 Vrms (min) (7) Safety standards UL-recognized: UL 1577, File No.E67349 VDE-approved: EN 60747-5-5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option (V4). 4. Packaging and Pin Assignment 1: Anode 2: Cathode 3: N.C. 4: Drain 5: Source 6: Drain 11-7C1S Start of commercial production 2019-10 ©2018-2019 1 2019-12-26 Toshiba Electronic Devices & Storage Corporation Rev.2.0
