Datasheet 1N4728A-1N4758A (ON Semiconductor) - 3

HerstellerON Semiconductor
BeschreibungZener Diodes Tolerance = 5% DO-41 Glass case
Seiten / Seite4 / 3 — 1 N 4 7. Top Mark Information. 2 8 A -. 7 5. e n e r D. General …
Revision8
Dateiformat / GrößePDF / 956 Kb
DokumentenspracheEnglisch

1 N 4 7. Top Mark Information. 2 8 A -. 7 5. e n e r D. General Requirements:. io d. e s

1 N 4 7 Top Mark Information 2 8 A - 7 5 e n e r D General Requirements: io d e s

Modelllinie für dieses Datenblatt

Textversion des Dokuments

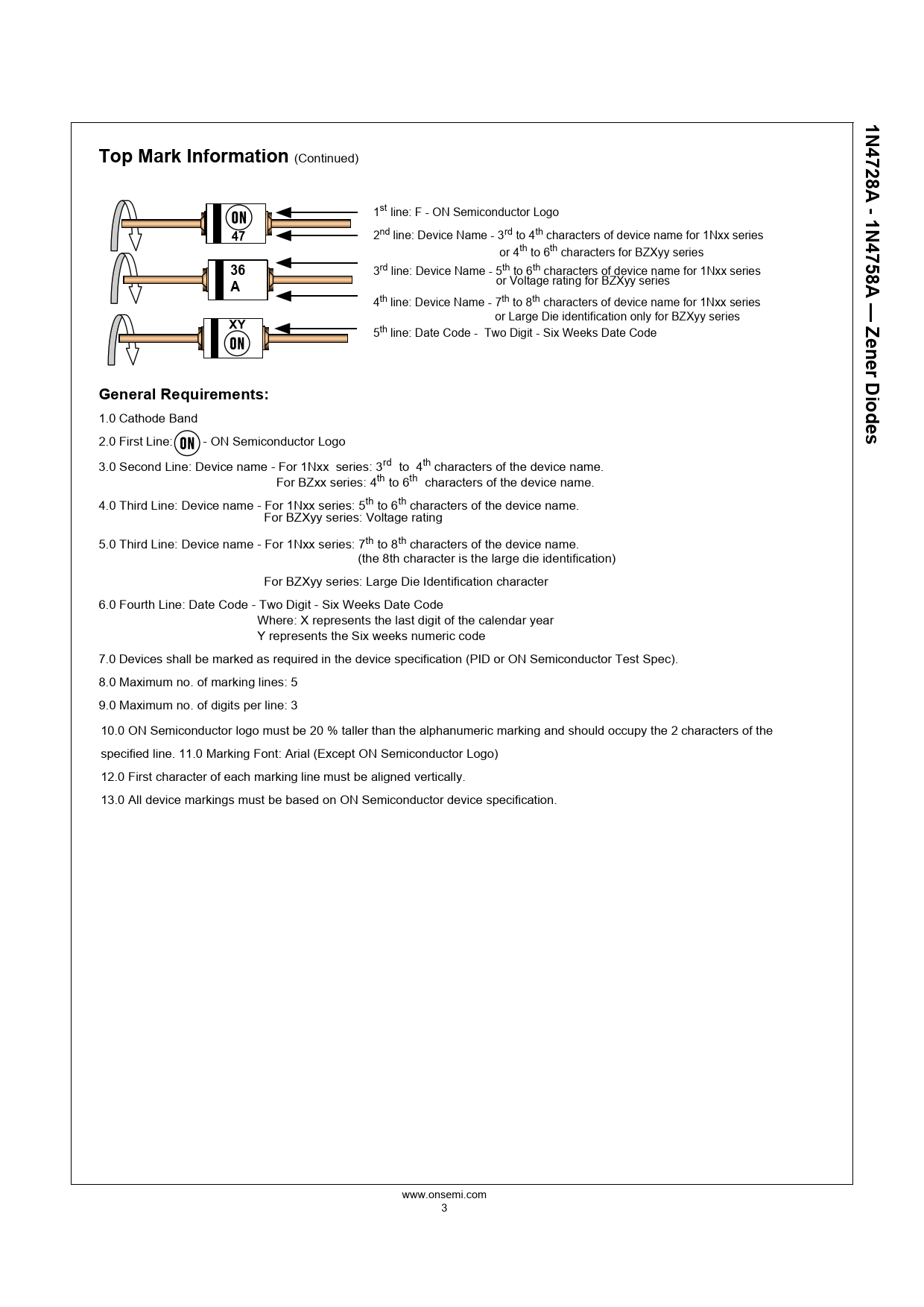

1 N 4 7 Top Mark Information
(Continued)
2 8 A -
1st line: F - ON Semiconductor Logo
1N 47
2nd line: Device Name - 3rd to 4th characters of device name for 1Nxx series
4
or 4th to 6th characters for BZXyy series
7 5 36
3rd line: Device Name - 5th to 6th characters of device name for 1Nxx series
8
or Voltage rating for BZXyy series
A A
4th line: Device Name - 7th to 8th characters of device name for 1Nxx series

or Large Die identification only for BZXyy series
XY Z
5th line: Date Code - Two Digit - Six Weeks Date Code
e n e r D General Requirements: io d
1.0 Cathode Band
e s
2.0 First Line: - ON Semiconductor Logo 3.0 Second Line: Device name - For 1Nxx series: 3rd to 4th characters of the device name. For BZxx series: 4th to 6th characters of the device name. 4.0 Third Line: Device name - For 1Nxx series: 5th to 6th characters of the device name. For BZXyy series: Voltage rating 5.0 Third Line: Device name - For 1Nxx series: 7th to 8th characters of the device name. (the 8th character is the large die identification) For BZXyy series: Large Die Identification character 6.0 Fourth Line: Date Code - Two Digit - Six Weeks Date Code Where: X represents the last digit of the calendar year Y represents the Six weeks numeric code 7.0 Devices shall be marked as required in the device specification (PID or ON Semiconductor Test Spec). 8.0 Maximum no. of marking lines: 5 9.0 Maximum no. of digits per line: 3 10.0 ON Semiconductor logo must be 20 % taller than the alphanumeric marking and should occupy the 2 characters of the specified line. 11.0 Marking Font: Arial (Except ON Semiconductor Logo) 12.0 First character of each marking line must be aligned vertically. 13.0 All device markings must be based on ON Semiconductor device specification. www.onsemi.com 3
