Datasheet RV1S2211A (Renesas)

HerstellerRenesas
BeschreibungOPERATING AMBIENT TEMPERATURE 115°C, LOW FORWARD-CURRENT(IF), 4-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSOP) PHOTOCOUPLER
Seiten / Seite15 / 1 — Data. Sheet. RV1S2211A. R08DS0184EJ0100. OPERATING. AMBIENT. TEMPERATURE. …
Dateiformat / GrößePDF / 1.9 Mb
DokumentenspracheEnglisch

Data. Sheet. RV1S2211A. R08DS0184EJ0100. OPERATING. AMBIENT. TEMPERATURE. 115°C,. LOW. FORWARD-CURRENT(IF),. Rev.1.00. 4-PIN. SSOP. WITH. 8.2mm

Datasheet RV1S2211A Renesas

Modelllinie für dieses Datenblatt

Textversion des Dokuments

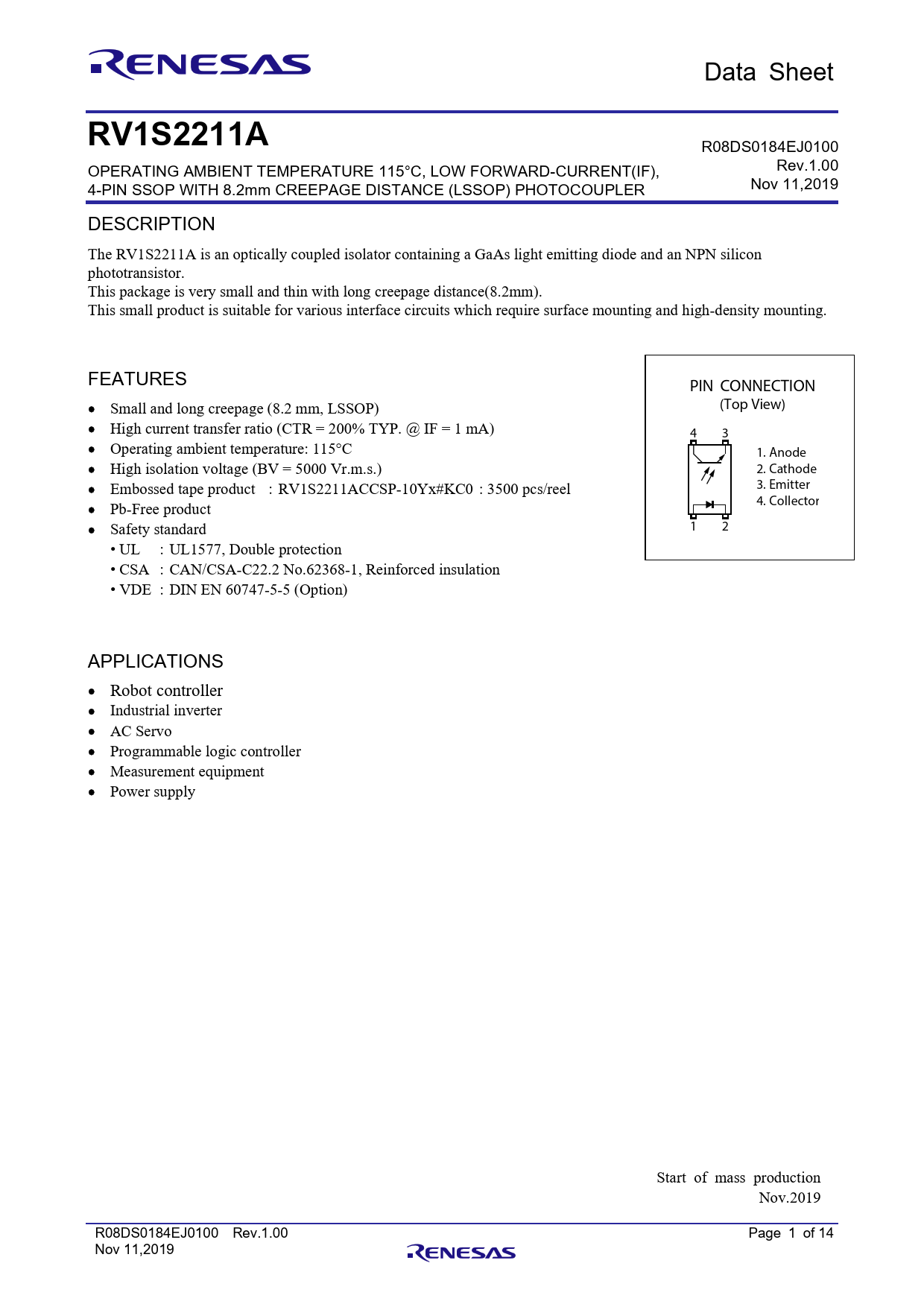

Data Sheet RV1S2211A R08DS0184EJ0100 OPERATING AMBIENT TEMPERATURE 115°C, LOW FORWARD-CURRENT(IF), Rev.1.00 4-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSOP) PHOTOCOUPLER Nov 11,2019 DESCRIPTION The RV1S2211A is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. This package is very small and thin with long creepage distance(8.2mm). This small product is suitable for various interface circuits which require surface mounting and high-density mounting. FEATURES PIN CONNECTION Small and long creepage (8.2 mm, LSSOP) (Top View) High current transfer ratio (CTR = 200% TYP. @ IF = 1 mA) 4 3 Operating ambient temperature: 115°C 1. Anode High isolation voltage (BV = 5000 Vr.m.s.) 2. Cathode Embossed tape product :RV1S2211ACCSP-10Yx#KC0 : 3500 pcs/reel 3. Emitter Pb-Free product 4. Collector Safety standard 1 2 • UL :UL1577, Double protection • CSA :CAN/CSA-C22.2 No.62368-1, Reinforced insulation • VDE :DIN EN 60747-5-5 (Option) APPLICATIONS Robot controller Industrial inverter AC Servo Programmable logic controller Measurement equipment Power supply Start of mass production Nov.2019 R08DS0184EJ0100 Rev.1.00 Page 1 of 14 Nov 11,2019
