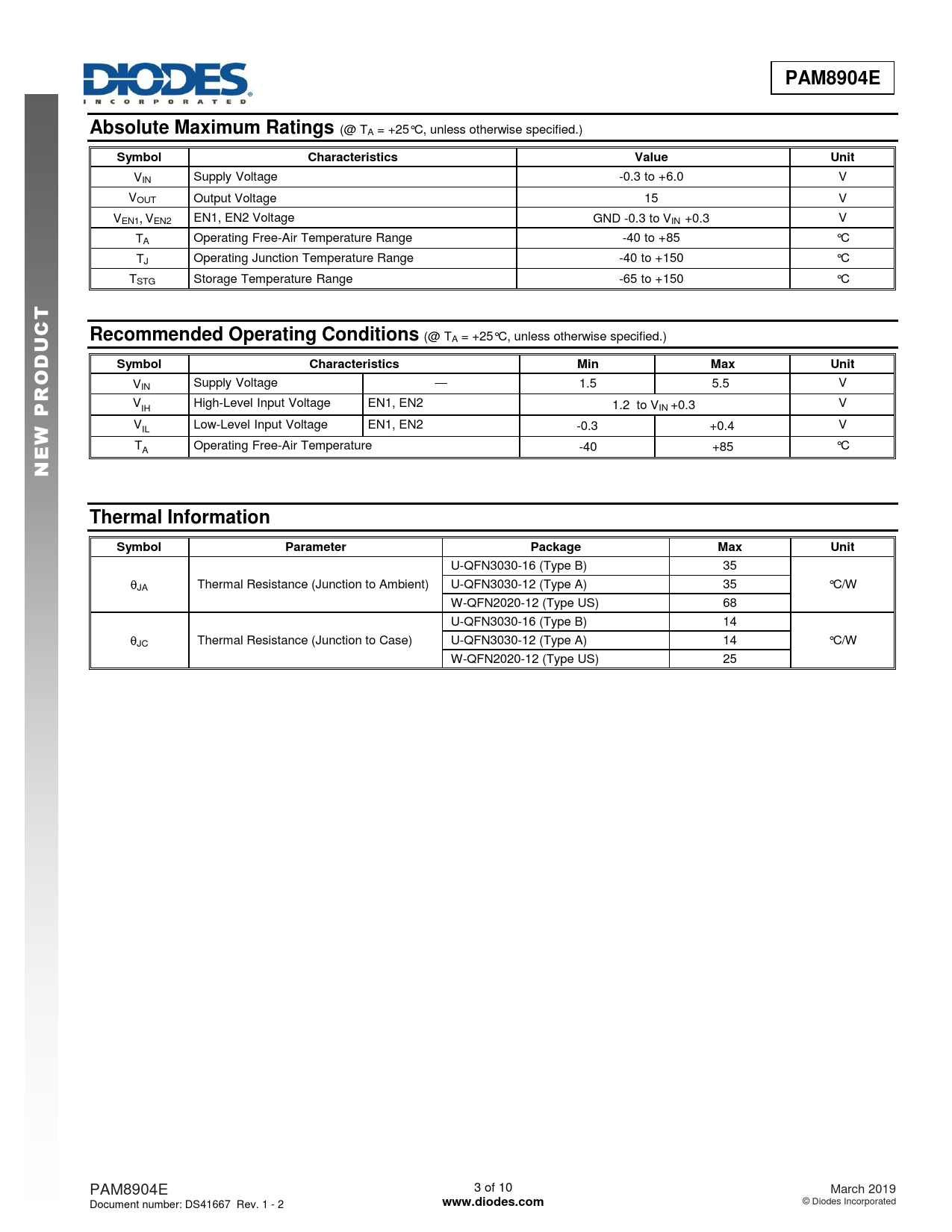

PAM8904E Absolute Maximum Ratings
(@ TA = +25°C, unless otherwise specified.)
Symbol Characteristics Value Unit
VIN Supply Voltage -0.3 to +6.0 V VOUT Output Voltage 15 V VEN1, VEN2 EN1, EN2 Voltage GND -0.3 to VIN +0.3 V TA Operating Free-Air Temperature Range -40 to +85 °C TJ Operating Junction Temperature Range -40 to +150 °C TSTG Storage Temperature Range -65 to +150 °C
T C U Recommended Operating Conditions
(@ TA = +25°C, unless otherwise specified.)
D Symbol Characteristics Min Max Unit O R
VIN Supply Voltage — 1.5 5.5 V
P
V High-Level Input Voltage EN1, EN2

IH 1.2 to VIN +0.3 V
W
V Low-Level Input Voltage EN1, EN2 IL -0.3 +0.4 V
E
T Operating Free-Air Temperature A -40 +85 °C
N Thermal Information Symbol Parameter Package Max Unit
U-QFN3030-16 (Type B) 35 JA Thermal Resistance (Junction to Ambient) U-QFN3030-12 (Type A) 35 °C/W W-QFN2020-12 (Type US) 68 U-QFN3030-16 (Type B) 14 JC Thermal Resistance (Junction to Case) U-QFN3030-12 (Type A) 14 °C/W W-QFN2020-12 (Type US) 25
