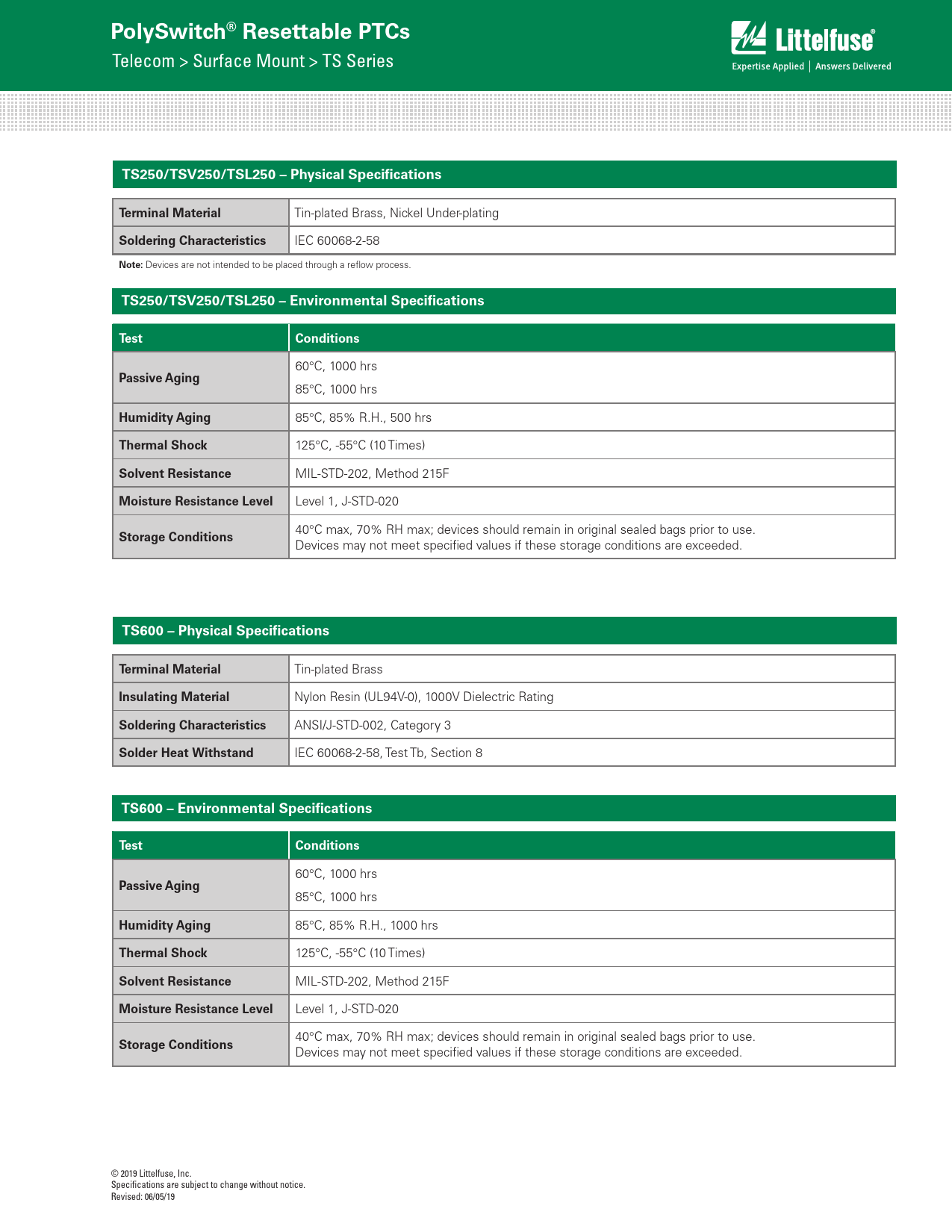

PolySwitch® Resettable PTCs
Telecom > Surface Mount > TS Series
TS250/TSV250/TSL250 – Physical Specifications Terminal Material
Tin-plated Brass, Nickel Under-plating
Soldering Characteristics
IEC 60068-2-58
Note:
Devices are not intended to be placed through a reflow process.
TS250/TSV250/TSL250 – Environmental Specifications Test Conditions
60°C, 1000 hrs
Passive Aging
85°C, 1000 hrs
Humidity Aging
85°C, 85% R.H., 500 hrs
Thermal Shock
125°C, -55°C (10 Times)
Solvent Resistance
MIL-STD-202, Method 215F
Moisture Resistance Level
Level 1, J-STD-020 40°C max, 70% RH max; devices should remain in original sealed bags prior to use.
Storage Conditions
Devices may not meet specified values if these storage conditions are exceeded.
TS600 – Physical Specifications Terminal Material
Tin-plated Brass
Insulating Material
Nylon Resin (UL94V-0), 1000V Dielectric Rating
Soldering Characteristics
ANSI/J-STD-002, Category 3
Solder Heat Withstand
IEC 60068-2-58, Test Tb, Section 8
TS600 – Environmental Specifications Test Conditions
60°C, 1000 hrs
Passive Aging
85°C, 1000 hrs
Humidity Aging
85°C, 85% R.H., 1000 hrs
Thermal Shock
125°C, -55°C (10 Times)
Solvent Resistance
MIL-STD-202, Method 215F
Moisture Resistance Level
Level 1, J-STD-020 40°C max, 70% RH max; devices should remain in original sealed bags prior to use.
Storage Conditions
Devices may not meet specified values if these storage conditions are exceeded. © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/05/19
